200pcs/Min Horizontal Round Bottle Labeling Machine Pharma Automatic Sticker Pasting
Price:
Negotiable
MOQ:
1 set
Delivery Time:
30 work days
Brand:
SICI AUTO
Product Description
Automatic Horizontal Sticker Labeling Machine for Round Objects
- Product Description
XQ-TBR-W horizontal self-adhesive labeling function adapts to various specifications, color, material of the round bottle, so the machine is widely used in medicine, food, light industry, beverage, daily chemical products and other industries.
- Technical Parameter
| Model | XQ-TBR-W | |||||||||
| Power | 1kw | |||||||||
| Labeling speed | 0—200pcs/min (Depending on the size of the bottle and the length of the label) | |||||||||
| Suitable label | Adhesive sticker, opaque label | |||||||||
| Bottle diameter | Φ10-25mm ( standard machine, special size can be customized) | |||||||||
| Bottle height | 25-150mm ( standard machine, special size can be customized) | |||||||||
| Label height | 10—60mm | |||||||||
| Label length | 15—75mm | |||||||||
| Labeling accuracy | ±5mm(depends on the bottle hardness and round degree) | |||||||||
| Roll inner diameter | 76mm | |||||||||
| Roll outside diameter | 300mm | |||||||||
| Power supply | 220V 50/60hz (Can be customized) | |||||||||
| Packed machine weight | 150kg | |||||||||
| Wooden case dimension | 1800*700*1400mm | |||||||||
-
Product Features
1. Stick the label to the designated position of the bottle automatically;
2. Print batch number, production date and output count.
3. In case of bottle shortage, the control system can ensure that no label is sent, effectively prevent label waste.
4. Can make stepless speed regulation according to the production characteristics of each factory, so as to ensure that the machine can be used alone or used in line with other machines.
5. The pressing parts can make the bottle with uneven surface get satisfactory labeling effect.
6. Automatic bottle feeding device is optional.
-

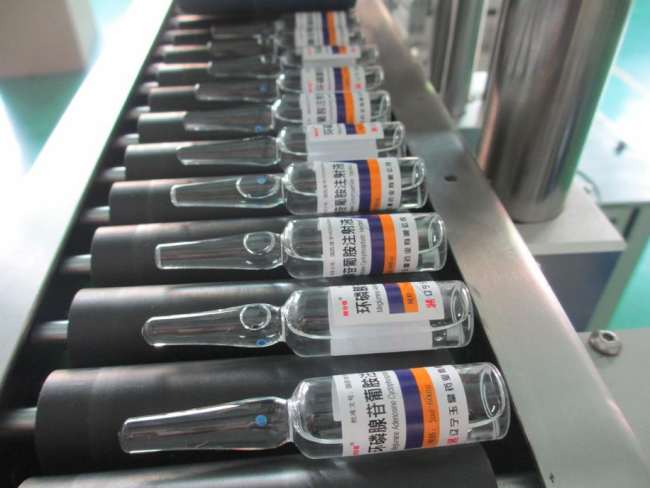

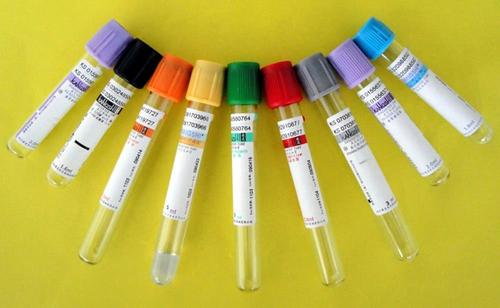

Product Samples
