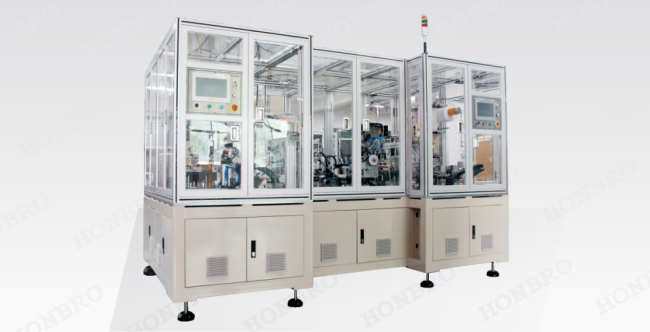

High speed double/four station Stacking Machine

Function description:

  This equipment is suitable for lithium ion battery cell, positive and negative plate and diaphragm to do Z-shaped laminated, the negative pole is stacked first (positive and negative ear on the same side or different side), after the lamination is completed, diaphragm heating, side glue, and by mechanical hand to the stacking platform, by manual material collection.

Technical characteristics:

• Use KEYENCE bus control, diaphragm put roll adopts full closed loop tension control, plus or minus 1.5 N pendulum roller tension fluctuation;
• Provide single pile cutting, naked under the batteries to the whole line belt, material slot/tray automatic cycle docking a variety of ways;
• Extensible blanking hot-pressing, tail volume, stick flat rubber, to detect the thickness of the short circuit test, the function such as;
• Automatically weed out very ear bending, missing Angle (Angle) pole piece;
• Blowing from quartets shard, bending, brush, ultrasonic sensors, the heavy piece of functionality;
• Cleaner head processing industry to reduce dust equipment, improve the quality of the batteries.

Technical parameters:
