IP66 APEXLS P8 Outdoor Led Screen 320mm Outdoor Led Billboard
Outdoor SMD series P6.P8,P10
IP66 water proof degree, front service series, adopted SMD technology, standard 320mm module size, high reliability, widely used for outdoor permanent installation.
Application: outdoor advertising bill board, signage.
Pixel pitch: P6.6 / P8 /10
Product Features:

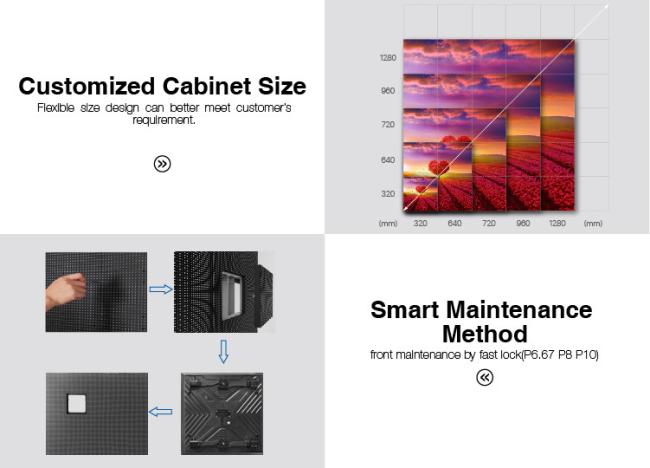

1. Easy Maintenance
Independent waterproof module ; front service and rear service by magnet ; quicky installation anddisassembly; time and labour saving.
2.Corner Protection Design
Protect the vulnerable coners during transportation.
3. Trinity Positioning System
Magnet, pin and linear rail ensure quick installation and precise evenness.

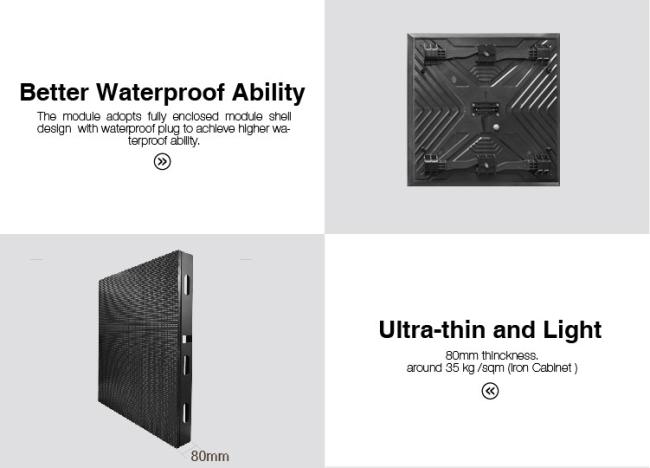

4. Ultra Slim and Lightweight 8.5kg/panel,83mm/panel
5. Module Security Lock
Prevent modules from falling off or loosening due to the vibration or weakened magnet.
| Model | P6.67 | P8 | P10 | ||||||||||||
| Pixel Pitch(mm) | 6.67 | 8 | 10 | ||||||||||||
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | ||||||||||||
| LED Type | SMD2727 | SMD2727 | SMD2727 | ||||||||||||
| Pixel Density(dots/m²) | 22,477 | 15,625 | 10,000 | ||||||||||||
| Cabinet Size(mm) | 960x960 | 960x960 | 960x960 | ||||||||||||
| Cabinet Resolution(dots) | 144x144 | 120x120 | 96x96 | ||||||||||||
| Module Size(mm) | 320x320 | 320x320 | 320x320 | ||||||||||||
| Module Resolution(dots) | 48x48 | 40x40 | 32x32 | ||||||||||||
| Cabinet Material | Iron / Aluminum | ||||||||||||||
| Cabinet Weight(kg) | around 35 kg/m² (Aluminum) | ||||||||||||||
| Brightness(cd/m²) | 6,000 | 6,000 | 6,000 | ||||||||||||
| Power Max./Avg.(W/m²) | 800/300 | 800/300 | 850/300 | ||||||||||||
| Refresh Rate(Hz) | 1920~3840 | ||||||||||||||
| Gray Scale(bit) | 12 ~ 16 | ||||||||||||||
| Input Voltage | AC100~240V/50~60Hz | ||||||||||||||
| Working Temperature | -30℃~60℃ | ||||||||||||||
| Installation/Maintenance | Front / Rear | ||||||||||||||
| Life Span | 100,000 hours | ||||||||||||||
| Mtbf | ＞10,000 hours | ||||||||||||||
| Certification | CE ETL FCC RoHS | ||||||||||||||
