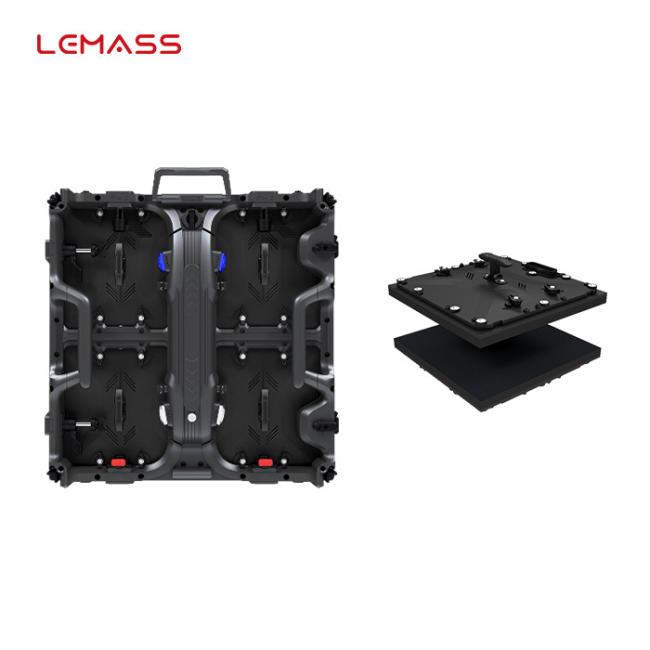

Highly Dynamic Indoor Rental LED Cabinet Display P2.9 With Seamless Protection
P2.9 indoor highly dynamic led rental display 500*500mm LMS-MSR Series seamless protection
Description:
Will supply power be included?
It depends. For mobile LED rental display, on-board generator power will be contained mostly. But for modular LED display, some companies may charge for it. Small tips: do not forget to talk about the power supply with the company early and throughly.
Quick Detail:
· High uniformity for color display
· Front and rear maintenance
· System & PSU Backup
· Anti-collision structure of lamp
· Ultra-high refresh rate
· Easy to maintain and install
Specifications:
| Parameter Item | LMS-MSR2.9S |
| Pixel Pitch (mm) | 2.97 |
| Pixel Density (pixels/sqm) | 113,366 |
| Module Resolution | 84×84 |
| Cabinet Resolution | 168x168 |
| Mask | Optional |
| Lamp Type | SMD1515 |
| Module Size (mm) | 250×250×18 |
| Module Weight (kg) | 0.62±0.05 |
| Cabinet Size (mm) | 500×500×75 |
| Cabinet Weight (kg) | 8.25±0.05 |
| Brightness (cd/sqm) | ≥800 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP40 |
| Intelligent Storage | Optional |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤480,Ave:≤160 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -40~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:
Widely used in building exterior walls, shopping malls, outdoor advertising, etc.
