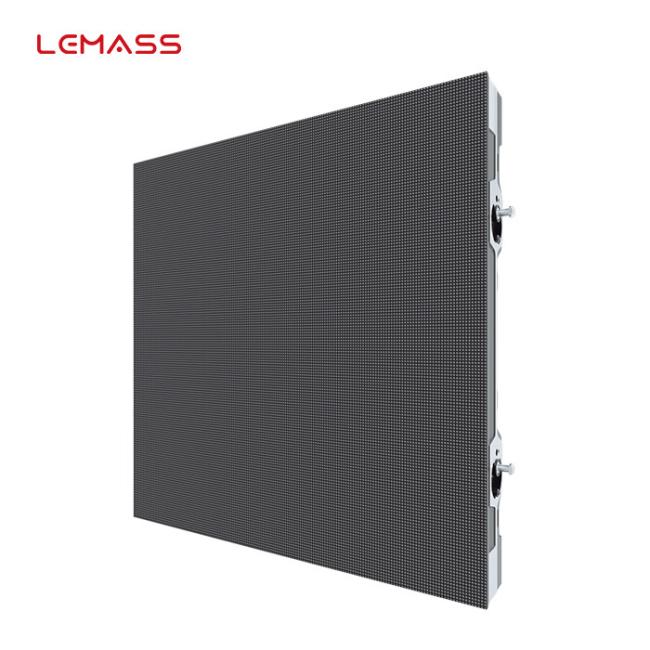

Eletronic P2.9 Indoor Rental LED Display , SMD 2121 Ultra Thin LED Screen
P2.9 eletronic indoor rental LED display 500*500mm MR Series meeting screen super slim
Description:
WHAT ARE MODULAR LED DISPLAYS?

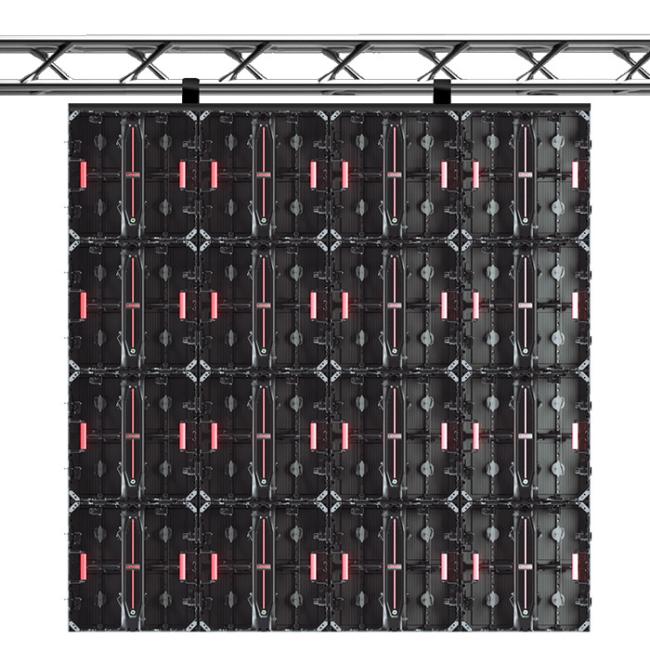

Unlike mobile LED displays that are installed in permanent housing, modular LED displays can be configured in any which way the user wishes, and at any size. Modular LED displays consist of several panels, connected together to form a larger display and often hooked up via rigs and truss systems.
Quick Detail:

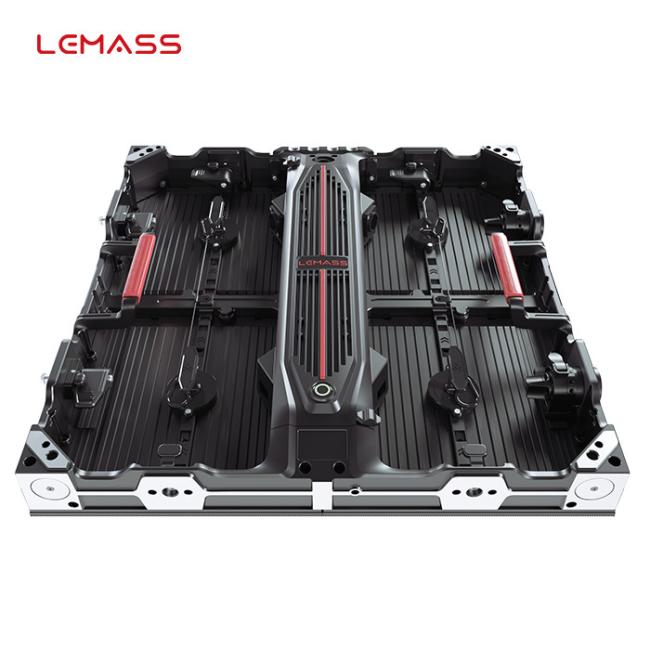

· Integrated die-casting forming

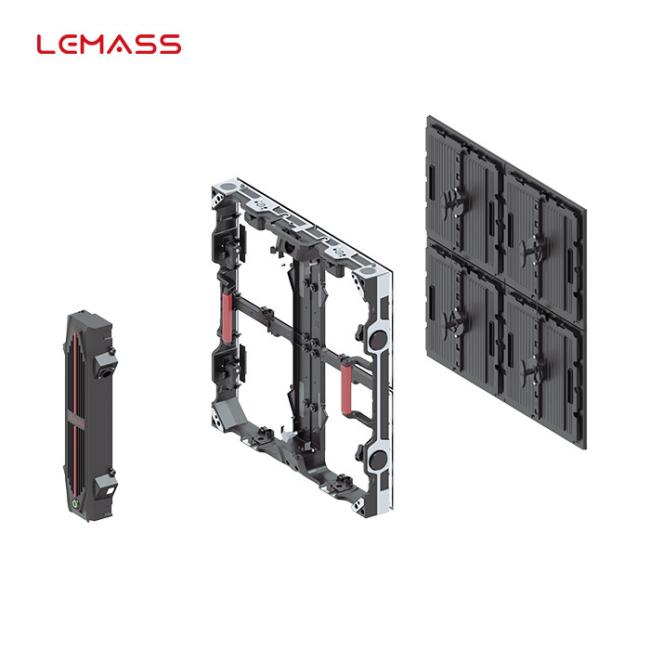

· Easy to install and maintain
· Multi-scene application
· Ultra high refresh rate
· 160° ultra wide viewing angle
· High quality ODM lamps
Specifications:
| Parameter Item | MR2.9 |
| Pixel Pitch (mm) | 2.976 |
| Pixel Density (pixels/sqm) | 112,896 |
| Module Resolution | 84x84 |
| Cabinet Resolution | 168x168 |
| Mask | Optional |
| Lamp Type | SMD 3in1 2121 |
| Module Size (mm) | 250x250 |
| Cabinet Size (mm) | 500x500x67 |
| Cabinet Weight (kg) | 7.7±0.1 |
| Brightness (cd/sqm) | 800~1000 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~15000 |
| Perspective (horiz; Vert) ° | 160 ; 140 |
| Uniformity Of brightness | ≥97% |
| Contrast | 5000:1 |
| Control System | Synchronous Control |
| Protection Level | IP40 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | ≥3840 |
| Working Voltage | AC:100~240V(50-60Hz) |
| Power Consumption (W/ m²) | Max:≤660, Ave:≤220 |
| Single Carton Consumption(W) | 165 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -20～+60 |
| Humidity Range(Rh) | 10%~85%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:
Widely used in building exterior walls, shopping malls, outdoor advertising, etc.
