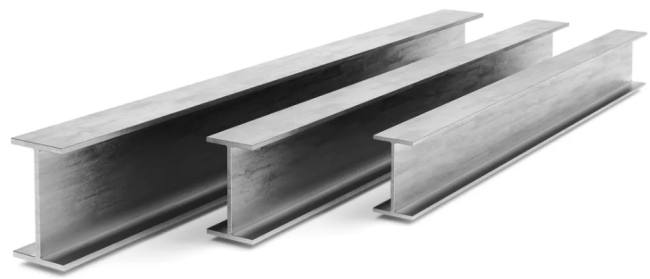

JIS Stainless Steel I Beam 100x68x4.5 120x74x5 140x80x5.5 For Construction Structure
JIS SUS304 Stainless Steel I Beam 100*68*4.5 120*74*5 140*80*5.5 For Construction Structure
Descriptions

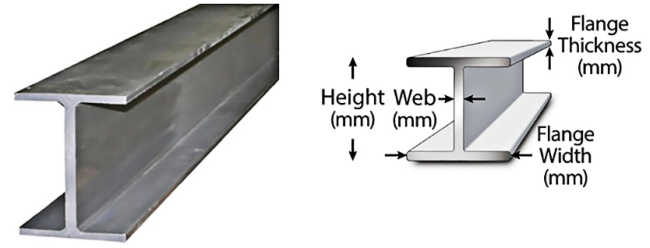

Stainless steel beams are used in a variety of industries and applications including food service, chemical, pharmaceutical and more. Stainless steel beams can be extruded, hot rolled or laser fused.The W in its name refers to “wide flanges.” The main difference between W beams is that the inner and outer flange surfaces are parallel. Furthermore, the overall beam must have a depth that is at least equal to the flange width.An I-beam, also known as H-beam (for universal column, UC), w-beam (for "wide flange"), universal beam (UB), rolled steel joist (RSJ), or double-T (especially in Polish, Bulgarian, Spanish, Italian and German), is a beam with an I or H-shaped cross-section.
Product Name | Stainless steel H-beam / stainless steel I-beam |
Material | 201 202 304 304L 316 316L 321 309 310S 410 430 436 436L 904L etc. |
Finish(Surface) | Pickled ,bright ,black |
Flange Thickness | 8mm - 64mm |
Web Thickness | 5mm - 36.5mm(Standard) |
Web Width | 100mm~900mm |
Thickness | 5-34mm |
Length | 1000mm-6000mm,6000mm-12000mm or custom |
Application | Stainless steel beam can apply to construction field, ships building industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry ,machinery and hardware fields. Stainless steel beam can be made according to the customer's requirements. |
Tips | The sizes or diameter and length of stainless steel beam can be customized, if you need additional information, please don’t hesitate to contact us at any time. |
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤ 0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-13.0 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 314 | ≤0.25 | ≤1.5-3.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 23.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.013 | 17.0-19.0 | - |
| 347 | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 9.0-13.0 | 17.0-19.0 | |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 420 | ≤0.16-0.25 | ≤1.0 | ≤1.0 | ≤0.040 | ≤ 0.03 | - | 12.0-14.0 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤ 0.03 | ≤0.60 | 16.0-18.0 | - |
| 904L | ≤0.02 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 23.0-28.0 | 19.0-23.0 | - |
Details
Productions Process

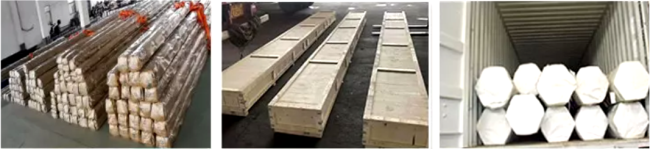

Packing & Shipping

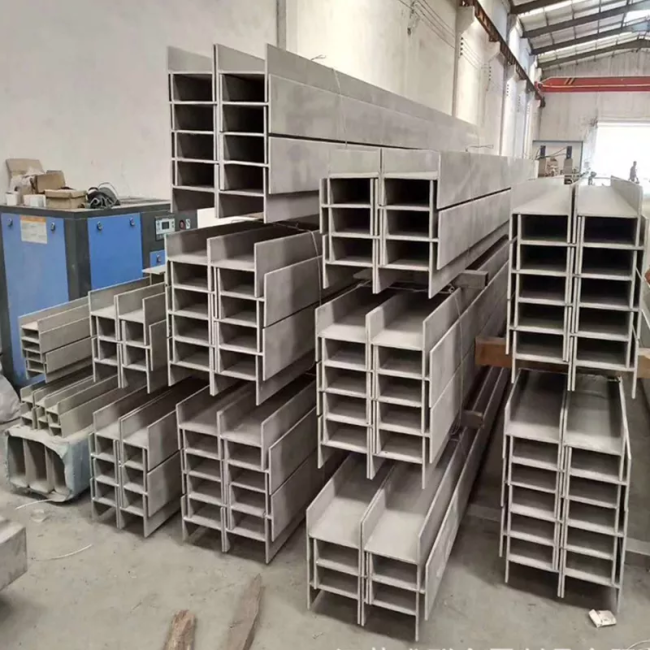

Our Factory
Certificates
FAQ
Q:Do you make customized products based on our design drawings or ideas?
