EN10025 Stainless Steel Angle Bar Blasting 3mmx20mmx20mm 12mmx100mmx100mm
410 420 430 440 EN10025 Stainless Steel Angle Bar Blasting 3mm*20mm*20mm 12mm*100mm*100mm
Descriptions

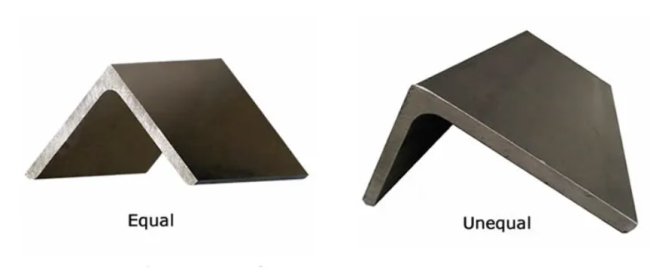

The key standard with respect to angle dimensions and tolerances is EN 10056, which approves the manufacture of equal steel angles with dimensions from 20*20*3 mm to 250*250*35 mm.Stainless Steel Angle Bar offers high strength, temperature resistance, high corrosion resistance, and a smooth surface that is easy to clean and withstand repeated sanitizing and sterilization. It is easy to machine, stamp, fabricate and weld to exacting tolerances. It is a high performance, low-cost material.Equal angle bars, standardized to EN 10056-1 (1998) and tolerances to EN 10056-2 (1993), have two parallel legs of the same length (size), whereas unequal angles have legs of two different sizes. The typical materials for mild steel angles are: EN 10025 S275. EN 10025 S355.
|
Product
|
Stainless steel Angle
|
|
Material
|
200,300,400 series stainless steel
|
|
Model Number
|
304,304L,316L,316Ti,309S,310S,321,321H,314,2205,2507,600,631,800H,825,901,
903,904L,1.4529,317,317LN,347H,348H,253MA,254SMO,25-6MOS, 32760, 440A, 440B, 440C, GH3030, GH3039, C276, HC-276, Hastelloy, 724L,725LN and so on
|
|
Standard
|
GB ASTM, JIS, SUS, DIN, EN etc
|
|
Length
|
1~12m or as request
|
|
Width
|
25-125mm or as request
|
|
Type
|
equal and unequal
|
|
Technology
|
Hot Rolled , Cold Rolled
|
|
Product application
|
Mechanical & Manufacture, Steel strcuture, Shipbuilding, Bridging, Automobile Chassis.
|
|
Sample
|
Free provided
|
|
Package Protection
|
1. water proof paper
|
|
2. Standard export seaworthy package + wooden pallet or as required.
|
|
|
Price Item
|
FOB,CIF,CFR,EXW ,etc.
|
|
Delivery time
|
Prompt delivery , 7-15 days after deposit, or as the order quantity
|
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤ 0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-13.0 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 314 | ≤0.25 | ≤1.5-3.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 23.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.013 | 17.0-19.0 | - |
| 347 | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 9.0-13.0 | 17.0-19.0 | |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 420 | ≤0.16-0.25 | ≤1.0 | ≤1.0 | ≤0.040 | ≤ 0.03 | - | 12.0-14.0 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤ 0.03 | ≤0.60 | 16.0-18.0 | - |
| 904L | ≤0.02 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 23.0-28.0 | 19.0-23.0 | - |
Details
Applications
Recommend Products
Packing & Shipping
Our Warehouse
Certificates
Market
FAQ
Q1. Where is your factory ?
A1: Our company’s processing center is located in Wuxi, Jiangsu, China.We can provide a wide range of personalized services according to the customers’ needs.
Q2. What are your company's main products ?
A2: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q3. What are the advantages of your company ?
A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q4. Can you provide sample ?
A4: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
Q5.How long can make delivery?
A5: For stock products,will make shipments in 2-5 days after receiving deposit or receiving T/T;
for products need new production for common materials,usually make shipments in 7-10 days;
for products need new products for special and rare materials,usually need 15-20 days to make shipment.
