ASTM A479 Stainless Steel I Beam 280 X 122 300 X 126 Wide Flange Heb Steel Beam
Heb Steel Beam ASTM A479 Stainless Steel I Beam 280*122 300*126 Wide Flange Beam
Descriptions
Structural Hot Rolled Steel Beam.Also known as I-Beam or W-Beam, HR steel beam is a malleable structural steel used for support and stability for a wide range of industrial applications.Hot rolled products like hot rolled steel bars are used in the welding and construction trades to make railroad tracks and I-beams, for example.
|
Material
|
Stainless steel I Beam H Beam
|
||
|
Product name
|
I Beam H Beam
|
||
|
Length
|
6--12m or according to customer's request
|
||
|
Flange Thickness
|
8mm - 70mm
|
||
|
Flange Width
|
50-400mm
|
||
|
Web Thickness
|
5-45mm
|
||
|
Web Width
|
100mm-900mm
|
||
|
Delivery time
|
7-15days or negotiation according to the quantity
|
||
|
Payment term
|
30%deposit,70% against copy of B/L
|
||
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤ 0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-13.0 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 314 | ≤0.25 | ≤1.5-3.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 23.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.013 | 17.0-19.0 | - |
| 347 | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 9.0-13.0 | 17.0-19.0 | |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 420 | ≤0.16-0.25 | ≤1.0 | ≤1.0 | ≤0.040 | ≤ 0.03 | - | 12.0-14.0 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤ 0.03 | ≤0.60 | 16.0-18.0 | - |
| 904L | ≤0.02 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 23.0-28.0 | 19.0-23.0 | - |

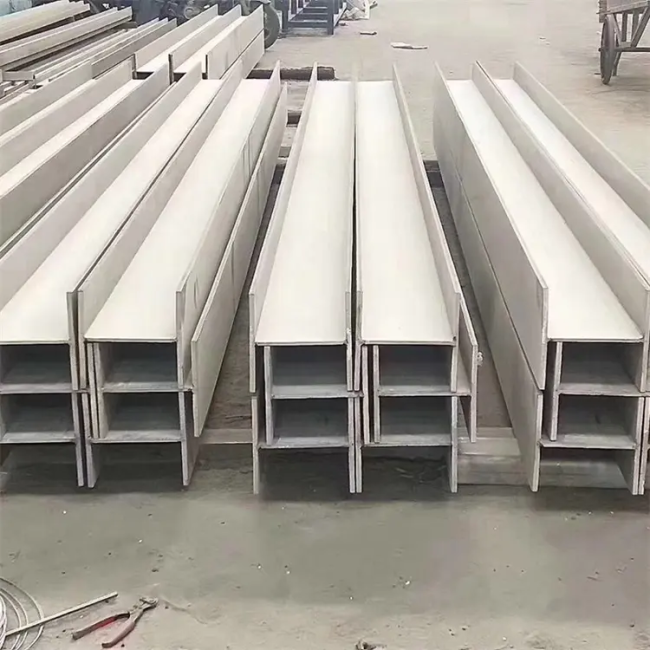

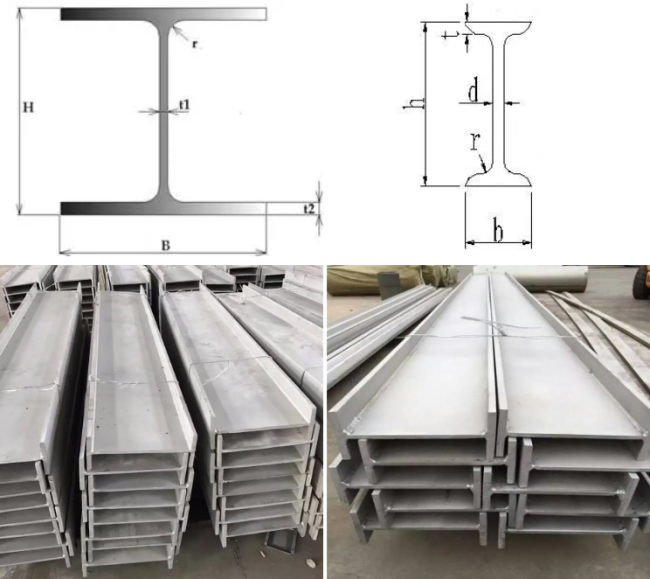

Details
Productions Process

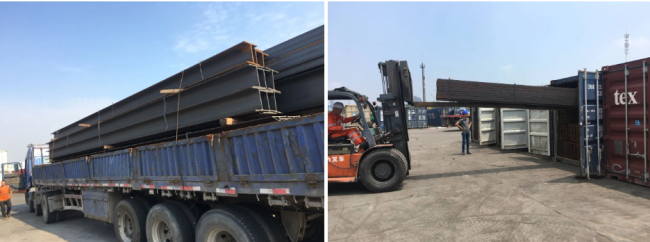

Packing & Shipping
Packing:
(1)Standard seaworthy export packing, wooden pallets with plastics protection .
(2)Max 20-25MT can be loaded into 20'container and 40'container.
(3)The other packing can be made based on the customer requirement.
Our Factory
Certificates
FAQ
Q: what can you buy from us?
A: stainless coil,Alumium coil,copper coil,brass coil,lead sheet
A: Accepted Delivery Terms: null；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:null
