Polished Stainless Steel I Beam 202 202Cu Hot Rolled High Frequency Welded For Bridging
Polished Stainless Steel I Beam 202 202Cu Hot-Rolled And High Frequency Welded For Bridging
Descriptions
The cross section of the H beam is stronger than the cross section of the I beam, meaning it can bear a greater load. In comparison, the cross section of an I beam can bear direct load and tensile but cannot resist twisting because the cross section is so narrow. This means that it can only bear force in one direction.I beams are usually fabricated of structural steel, although different steel specifications can be used for specific applications, such as framing, bridges, and certain structures.
Product Name | H Beam & I BEAM |
Grade | 201 202 304 304L 304H 316 316L 316Ti 2205 330 630 660 409L 321 310S 410 416 410S 430 347H 2Cr13 3Cr13 etc |
Standard | AISI, ASTM, BS, DIN, GB, JIS, EN,etc |
Flange Thickness | 4.5-35mm |
Flange Width | 100-1000mm |
Web Thickness | 4.5-70mm |
Web Width | 100-450mm |
Length | 5.8m,6m,9m,11.8m,12m or as your requirement |
Surface | Perforated/galvanized/black/PaintBright, Polished, Turn smooth(Peeled),Brush, Mill,Pickled |
Technique | Hot-rolled and High frequency welded |
Packing | In bulk or container,Standard seaworthy packing or as your required |
Delivery Time | Within 7days |
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤ 0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-13.0 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 314 | ≤0.25 | ≤1.5-3.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 23.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.013 | 17.0-19.0 | - |
| 347 | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 9.0-13.0 | 17.0-19.0 | |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 420 | ≤0.16-0.25 | ≤1.0 | ≤1.0 | ≤0.040 | ≤ 0.03 | - | 12.0-14.0 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤ 0.03 | ≤0.60 | 16.0-18.0 | - |
| 904L | ≤0.02 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 23.0-28.0 | 19.0-23.0 | - |

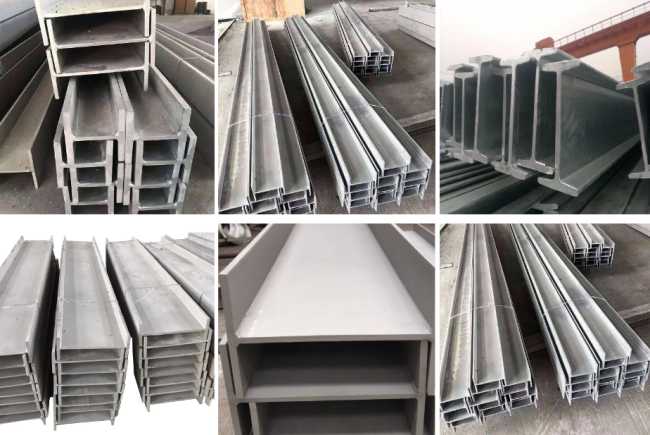

Details

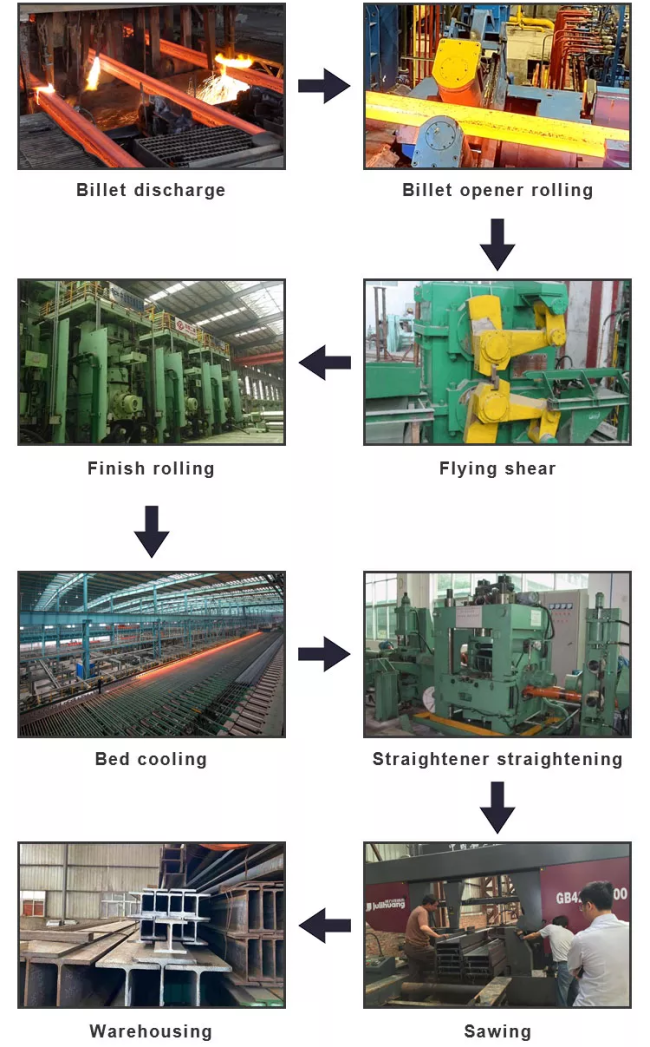

Productions Process
Packing & Shipping
Our Factory
Certificates
FAQ
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
A: We are factory with 100% predelivery inspection which garantee the quality.
And as golden supplier on Alibaba. Alibaba assurance will make garantee, which means alibaba will pay your money back in advance if there is any problem with the products.
