204C3 316Ti Stainless Steel Round Rod Cold Drawn Bright Bar 2.5mm 5mm 14mm Diameter
Cold Drawn Bright Bar Stainless Steel Round Rod 2.5 Mm 5mm 14 Mm Diameter 204C3 316Ti
Product Description:
|
Standard
|
ASTM A479, ASTM A276, ASTM A484, ASTM A582, ASME SA276, ASME SA484, GB/T1220, GB4226, DIN 17456, DIN17457, DIN 17459, JIS G3459, JIS G3463, EN10216, BS3605
|
|||
|
Material
|
AISI /SUS 201, 202, 204Cu, 304, 304L, 301, 302, 303, 310S, 309S, 316, 316L, 316Ti, 321, 317, 347, 410, 420, 430, 431, 416, 430F, 440C, 2205, 2507, 17-4PH, MONEL400, INCONEL825, INCONEL600, INCONEL601, INCONEL625, C276, INCONEL926, 254 SMO
|
|||
|
Size
|
Width
|
2mm to 400 mm or 1/8” to 15”
|
Height
|
0.6mm to 25mm
|
|
Length
|
0.20m to 9m or random
|
|
|
|
|
Surface
|
Polished Bright, Hairline, Mirror Finish, NO.1 Finish, Pickled, Sand-Blasted
|
|||
|
Tolerance
|
H9-H11 or K9-K11 according to ISO Dimensional Tolerance for Bar
|
|||
|
Delivery time
|
Prompt delivery subject to the order quantity.
|
|||
|
Package
|
Standard export seaworthy package, or as required.
|
|||
|
Application
|
Widely used in petroleum, food stuff, chemical industry, construction, electric power, nuclear, energy, machinery, biotechnology, papermaking, shipbuilding, boiler fields etc
|
|||
| Chemical Composition Reference | |||||||
| Grade | C≤ | Si≤ | Mn≤ | P≤ | S≤ | Ni | Cr |
| 201 | 0.15 | 1.00 | 5.50-7.50 | 0.5 | 0.03 | 3.50-5.50 | 16.00-18.00 |
| 202 | 0.15 | 1.00 | 7.50-10.00 | 0.5 | 0.03 | 4.00-6.00 | 17.00-19.00 |
| 304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
| 304L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-12.00 | 18.00-20.00 |
| 309 | 0.20 | 1.00 | 2.00 | 0.04 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 309S | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 310 | 0.25 | 1.00 | 2.00 | 0.04 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 310S | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 316 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316Ti | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 410 | 0.15 | 1.00 | 1.00 | 0.04 | 0.03 | 0.60 | 11.50-13.50 |
| 430 | 0.12 | 0.12 | 1.00 | 0.04 | 0.03 | 0.60 | 16.00-18.00 |

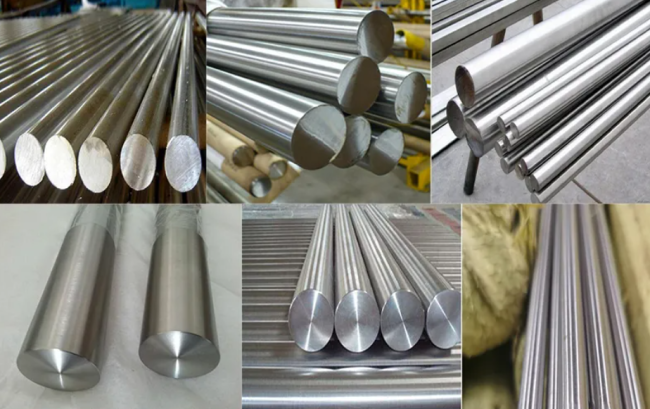

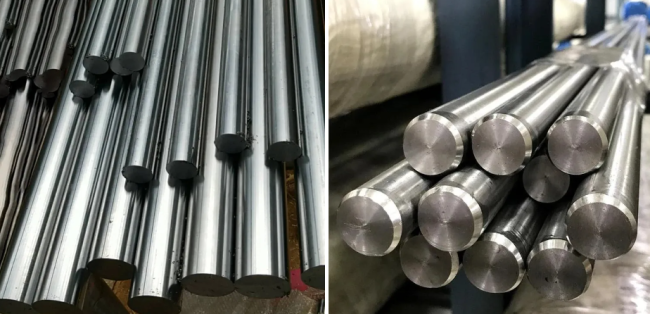

Product Details:

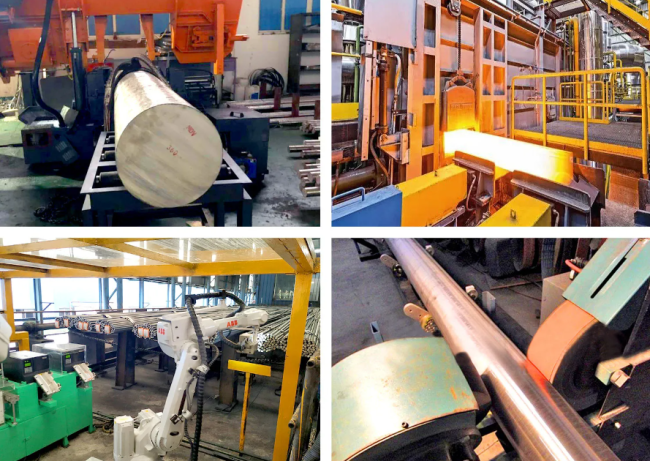

Production Line:
Application:
Related Products:
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
