Annealed Stainless Steel Welded Pipe JIS SUS202 SUS301 SUS302 SCH40 Seamless Bright
JIS SUS202 SUS301 SUS302 Stainless Steel Tube SCH40 Seamless Bright Annealed Stainless Steel Welded Pipe
Description:
202 stainless steel is one of the 200 series stainless steels. The national standard model is 1Cr18Mn8Ni5N. This is a stainless steel with low nickel content and high manganese content. Since it is a stainless steel developed to save nickel, its nickel content will be lower.Type 301 is an austenitic stainless steel with a nominal composition of 17 percent chromium and 7 percent nickel, which provides good strength and ductility when cold worked. It also has excellent corrosion resistance properties.Type 302 is an austenitic chromium-nickel stainless steel that is available in the annealed and cold worked conditions. Type 302 is a higher carbon, earlier version of Type 304 stainless steel, and many 302 applications have switched to Type 304 with the improvements in melting technology.
|
Product Name
|
Stainless steel pipe
|
|
Standard
|
ASTM AISI DIN, EN, GB, JIS
|
|
Steel Grade
|
200 Series: 201,202
300 Series: 301,304,304L,316,316L,316Ti,317L,321,309s,310s 400 Series: 409L,410,410s,420j1,420j2,430,444,441,436 Duplex Steel: 904L,2205,2507,2101,2520,2304 |
|
Outer Diameter
|
6-2500mm(as required)
|
|
Thickness
|
0.3mm-150mm (as required)
|
|
Length
|
2000mm/2500mm/3000mm/6000mm/12000mm(as required)
|
|
Technique
|
Seamless/Welded
|
|

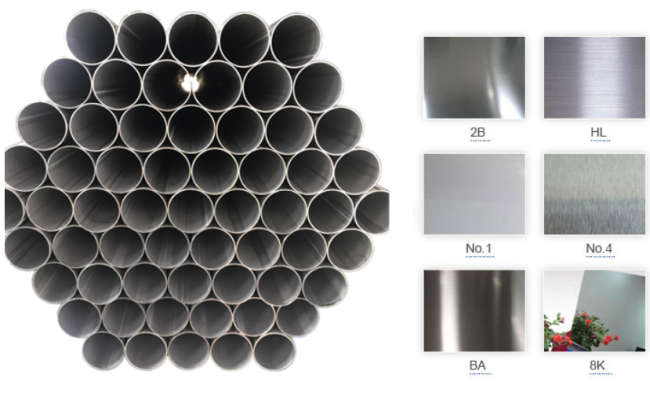

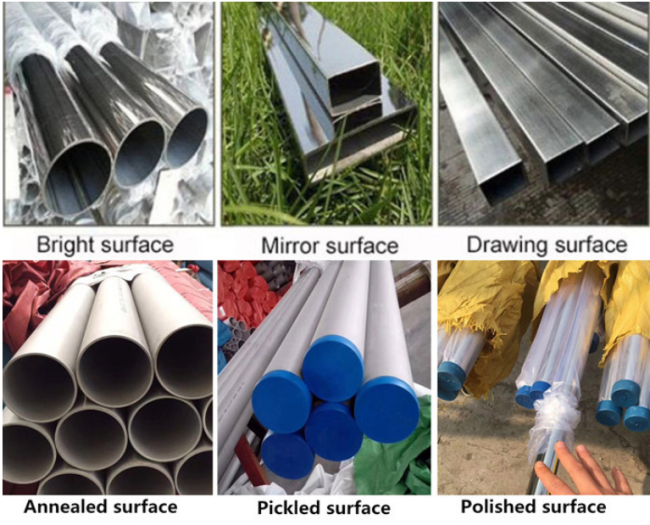

Surface
|
No.1 2B BA 6K 8K Mirror No.4 HL
|
|
Tolerance
|
±1%
|
|
Price Terms
|
FOB,CFR,CIF
|
|
Chemical Composition %
|
||||||||
| Grade |
C
|
Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 -3.0 |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 |
≤1.0
|
≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
|
430
|
≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 |
-
|
Product Details:
Quality Inspection:
Production process:
Packing and Shipping:
Company Profile:
Jiangsu Pucheng Metal Products Co., Ltd is a professional enterprise integrating seamless steel pipes, stainless steel pipes, steel profiles, galvanized steel coils, color-coated steel coils, copper pipes, aluminum sheets and non-ferrous metals. Focusing on manufacturing and international business fields, in line with the principles of sincerity, credit, mutual benefit and abundant Chinese resources, we have provided customers with the best quality products and value-added services of Pucheng for more than 10 years. The company mainly produces: steel pipes (seamless pipes, welded pipes), steel plates, steel rods, steel coils, steel strips and steel bars. We have: stainless steel/carbon steel/iron/copper/aluminum/alloy steel/galvanized/chrome plating and other materials, our products meet the production standards, each product has been successfully processed after many tests to ensure the quality and effect of the product. We provide polishing/bending/cutting/transport services, support secondary processing, and we have the most advanced equipment to support production according to drawings.
FAQ:
Q. When does my order take to be delivered?
A. It usually takes 4 to 14 days,which generally depends on the quantity of your order and in my stock.
Q. How can I get a quotation from you ?
A. You can leave us message, and we will reply every message in time.
A:Yes.It can be customized as per your request.
