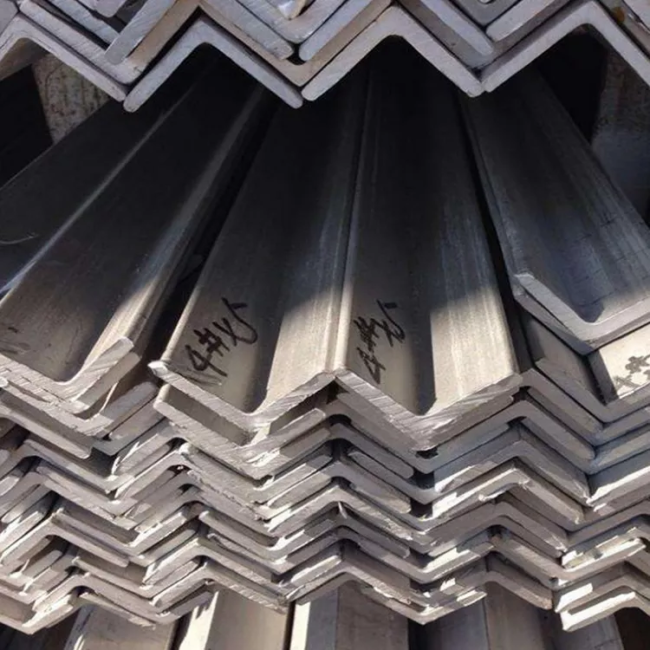

Customize Size 316L Stainless Steel Angle Bar Equal,Unequal Angel Bar For Construction AISI Standard
| Attribute | Value |
|---|---|
| Product Name | Stainless Steel Angle Bar |
| Grade | 300series |
| Application | Construction |
| Type | Equal,Unequal Angel Bar |
| Standard | ASTM, JIS, GB, AISI, DIN |
| Technique | Hot Rolled Cold Rolled |
Steel Equal Angles are the most basic type of roll-formed steel. Equal Steel angles are used for various purposes in a number of industries. Steel angles come in either equal sizes, unequal sizes and in duragal. Angles that have the same measure (i.e. the same magnitude) are said to be equal or congruent. An angle is defined by its measure and is not dependent upon the lengths of the sides of the angle (e.g. all right angles are equal in measure).
Equal angle sections are widely used for general fabrication work, frame making, automotive applications, and in the construction industries. Equal angle has a 90° angle in the centre of the profile and both sides having equal width.
| Product Name | Stainless Steel Angle Bar |
| Standard | GB ASTM, JIS, SUS, DIN, EN etc |
| Material | 300 Series |
| Surface Finish | Polished, HL, Colour Pipe, Pickling |
| Thickness | 1mm - 30mm |
| Width | Can Be Customized |
| Length | 1m - 12m, or according to your requests |
| Technique | Hot rolled, Cold rolled |

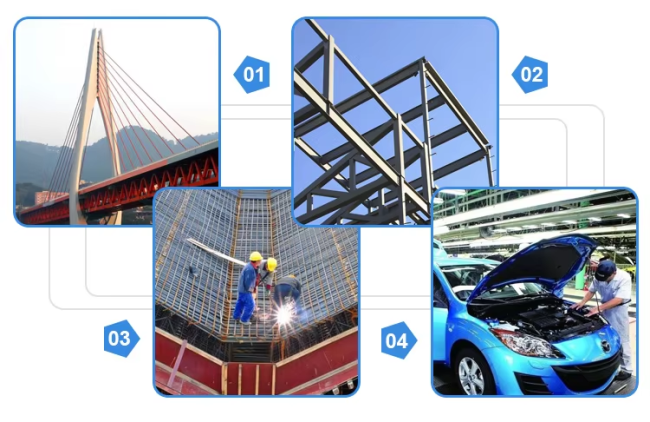

| Usage | Mechanical & Manufacture, Steel structure, Shipbuilding, Bridging, Automobile Chassis |
| Quality Test | We can offer MTC (Mill Test Certificate) |
| Stock or Not | Have Stock |
| Container Size | 20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High) 40ft GP: 12032mm(Length)x2352mm(Width)x2393mm(High) 40ft HC: 12032mm(Lengh)x2352mm(Width)x2698mm(High) |
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
|---|---|---|---|---|---|---|---|---|
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 8.0-13.0 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 314 | ≤0.25 | ≤1.5-3.0 | ≤2.0 | ≤0.045 | ≤0.03 | 19.0-22.0 | 23.0-26.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 10.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.013 | 17.0-19.0 | - |
| 347 | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤0.03 | 9.0-13.0 | 17.0-19.0 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤0.03 | - | 11.5-13.5 | - |
| 420 | ≤0.16-0.25 | ≤1.0 | ≤1.0 | ≤0.040 | ≤0.03 | - | 12.0-14.0 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤0.03 | ≤0.60 | 16.0-18.0 | - |
| 904L | ≤0.02 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 23.0-28.0 | 19.0-23.0 | - |
