XCMG Xr150d Rotary Foundation Drill Rig Borehole 20m Depth Heavy Engineering

Price Negotiable

Price: Negitionable

MOQ: 1

Delivery Time: 30 days after receiving down payment

Brand: XCMG

Product Description

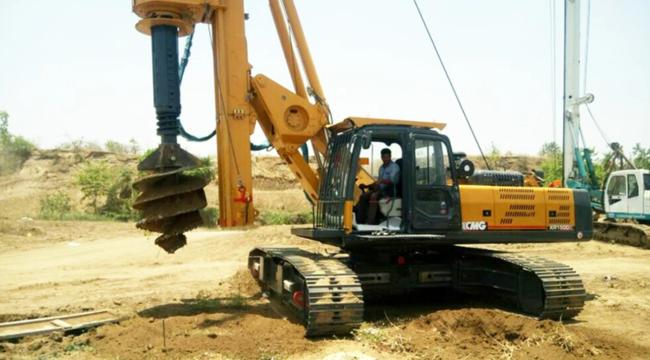

XCMG Xr150d Borehole 20m Depth Heavy Engineering Crawler Hydraulic Rotary Drilling Rig Price

XR150D rotary drilling rig load sensing hydraulic system. The color LCD display makes the operation easy and flexible, the drilling depth and verticality are automatically detected and controlled, and the fault automatic control alarm system. Limit power control system, rotary automatic positioning function. Self-made chassis with retractable crawlers and H-shaped frame structure. The whole machine can be transported long-distance without dismantling the drill pipe. GPS global satellite positioning system, complete machine working condition and realize remote data analysis, with remote real-time monitoring and remote fault diagnosis functions.

Model		Unit	XR150D
Engine	Rated power	kW	133
Power unit	Max. output torque	kN.m	150
Power unit	Rotate speed	r/min	6~28
Max. drilling diameter		mm	800
Max. drilling depth		m	20
Max. extraction force		kN	400
Main winch	Max. winch speed	m/min	75
Main winch	Diameter of steel rope	mm	28
Vice winch	Max. elevation force	kN	50
Vice winch	Max. winch speed	m/min	60
Drilling mast Inclination	Lateral	°	3
Chassis	Max. walking speed	km/h	3.2
	Max gradeability	%	40
	Min. ground clearance	mm	352
	Track shoe width	mm	800
	Track shoe's largest overall width	mm	2960-4100
Hydraulic system	Working pressure	Mpa	32
Machine working quality/Transporation quality		t	48/43
Boundary dimension	Working condition	mm	8620410022845
LWH	Transporation condition	mm	13610296030
