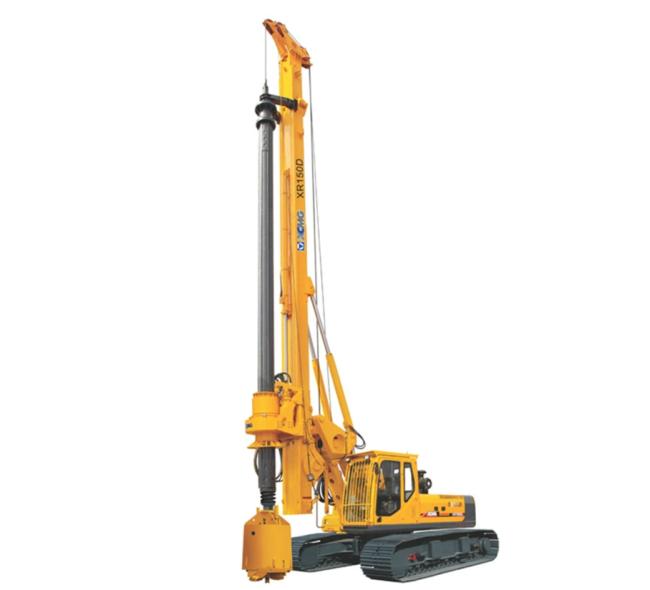

XCMG Hydraulic Piling Machine Xr150d Bored Pile Rig
Pilling Machine XCMG Core Drill Rig Xr150d Rotary Drilling Rig Price
* It adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary stability and transport convenience.
* It adopts the Cummins electric control turbo-supercharged engine to provide strong power and conformity with Euro III emission standard.
* With the hydraulic pressure system adopted threshold power control and negative flow control,the system acquired high efficiency and higher energy conservation.
* Using single rope winding, effectively solve the steel wire rope wear problem, improve the life of wire rope; And drill deep detection device is setted in main winding,single rope to make deep inspection more accurate.
* The whole machine design meet the requirements of the CE directive, safety guarantee, construction safer.
| Model | Unit | XR150D | |
| Engine | Rated power | kW | 133 |
| Power unit | Max. output torque | kN.m | 150 |
| Rotate speed | r/min | 6~28 | |
| Max. drilling diameter | mm | 800 | |
| Max. drilling depth | m | 20 | |
| Max. extraction force | kN | 400 | |
| Main winch | Max. winch speed | m/min | 75 |
| Diameter of steel rope | mm | 28 | |
| Vice winch | Max. elevation force | kN | 50 |
| Max. winch speed | m/min | 60 | |
| Drilling mast Inclination | Lateral | ° | 3 |
| Chassis | Max. walking speed | km/h | 3.2 |
| Max gradeability | % | 40 | |
| Min. ground clearance | mm | 352 | |
| Track shoe width | mm | 800 | |
| Track shoe's largest overall width | mm | 2960-4100 | |
| Hydraulic system | Working pressure | Mpa | 32 |
| Machine working quality/Transporation quality | t | 48/43 | |
| Boundary dimension | Working condition | mm | 8620*4100*22845 |
| L*W*H | Transporation condition | mm | 13610*2960*3040 |
