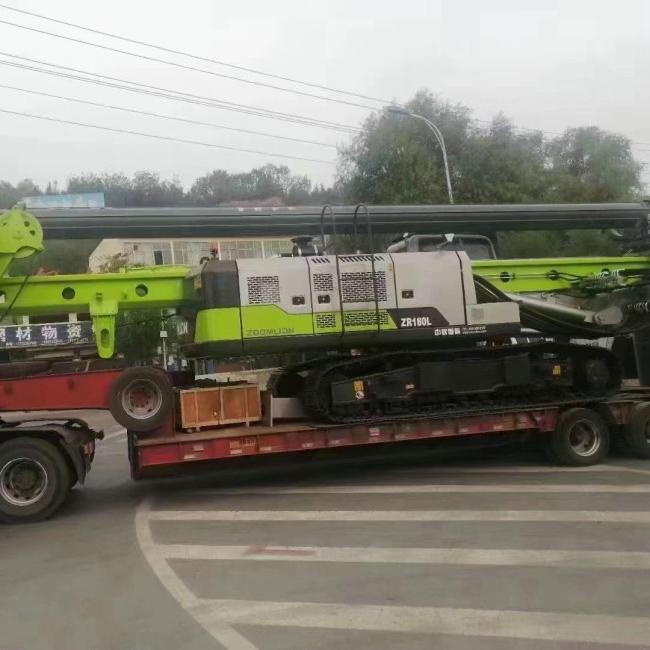

154 Kw Hydraulic Piling Rig ZOOMLINE Piling Winch Machine ZR160L

Price Negotiable

Price: Negotiation

MOQ: 1 set

Delivery Time: confer with

Brand: ZOOMLINE

Product Description

ZOOMLINE ZR160L Hydraulic Piling Rig Piling Winch Machine

ZOOMLINE ZR160L Piling Winch Machine Feature

Piling Winch Machine adopts a unique porous drill pipe and drill bit to achieve the in-hole compulsory slurry discharge and underground pressure detection, and controls the underground pressure by forcing adjustment of the slurry discharge volume, reatly reducing the impact of the underground environment and further ensuring the diameter of the underground construction pile.

ZOOMLINE ZR160L Piling Winch Machine Parameters

Torque(KN.M)		160
Drilling Diameter(mm)		1500
Drilling Depth(m)	inter-locking	44
	Friction	56
Drilling Speed(r/min)		5～35
Engine Model		QSB5.9
Rated Power(kw)		154
Max.Crowd Force(kN)		160
Max.Crowd Cylinder Pull(kN)		160
Line Pull(main winch)(kN)		160
Line Speed(main winch)(m/min)		82
Line Pull(aux.winch)(kN)		60
Line Speed(aux.winch)(m/min)		80
Operating Mass(t)		50
Traction Force(kN)		330
Rope diameter(Main winch)(mm)		26
Rope diameter(auxiliary winch)(mm)		18
