Green Black 1X32 Rack Mounted Fiber Optic Plc Splitter With SC APC Fiber Adapters
Fiber Optic Plc Splitter 1X32 Rack Mounted With SC APC Fiber Adapters Green Black
Products description of Fiber Optic PLC Splitter:
The PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing.In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal.PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology.They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.
Technical Specifications of Fiber Optic PLC Splitter:
|
Parameters |
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
1X128 |
|
Operating Wavelength (nm) |
1260~1650 |
||||||
|
Fiber Type |
G657A1 or customer specified |
||||||
|
Insertion Loss (dB) (P/SGrade ) |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
20.5/21.0 |
23.8/24.2 |
|
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2 |
2.5 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
0.4 |
|
Return Loss (dB) ( P/S Grade) |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (℃) |
-40~85 |
||||||
|
Storage Temperature ((℃)) |
-40~85 |
||||||
|
Device |
40x4x4 |
40x4x4 |
40x4x4 |
50x4x4 |
50x7x4 |
60x12x4 |
N/A |
|
Dimension (mm) |
|||||||
|
Module Dimension (mm) |
100x80x10 |
100x80x10 |
100x80x10 |
120x80x18 |
140x115x18 |
140x115x18 |
140x115x18 |
|
Mini-Module Dimension (mm) |
50x7x4 |
50x7x4 |
50x7x4 |
60x12x4 |
80x20x6 |
100x40x6 |
N/A |
Features of Fiber Optic PLC Splitter:
- Good uniformity and low insertion loss
- Low Polarization Dependent Loss
- Excellent Environmental Stability
- Excellent Mechanical
- Stability Telecordia GR-1221 and GR-1209
- Components through TLC-Certified,Conform to YD1117-2001

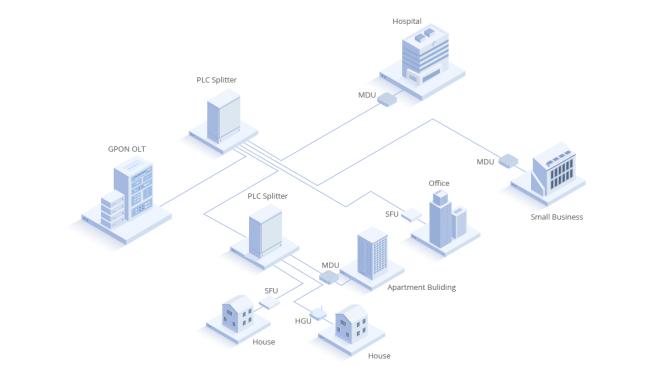

Applications of Fiber Optic PLC Splitter:
- Fiber to the point (FTTX)
- Fiber to the home (FTTH)
- Passive optical networks(PON)
- Local area networks (LAN)
- Cable television (CATV)
- Test equipment

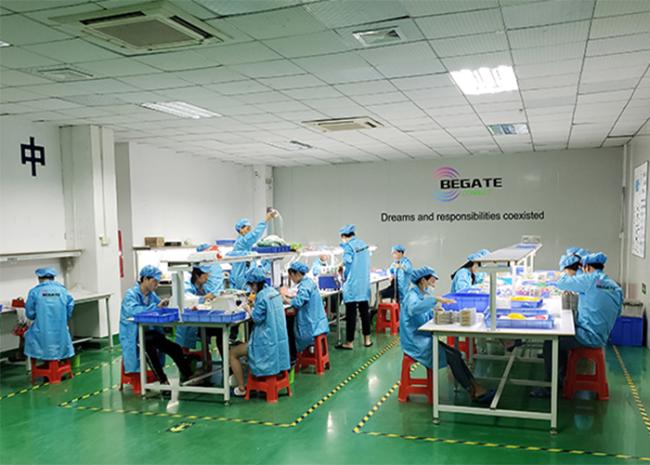

Factory Workshop:
Question: How long is shipping take typically?
Reply: The delivery time depends on the goods quantities. If light weight, by express (DHL, FEDEX, TNT, UPS, Special line) will take about 10-15days, if large quantities with big volume, and goods are not in urgently needed, by ocean transportation will be more cost effective, it will take around 30-60days.

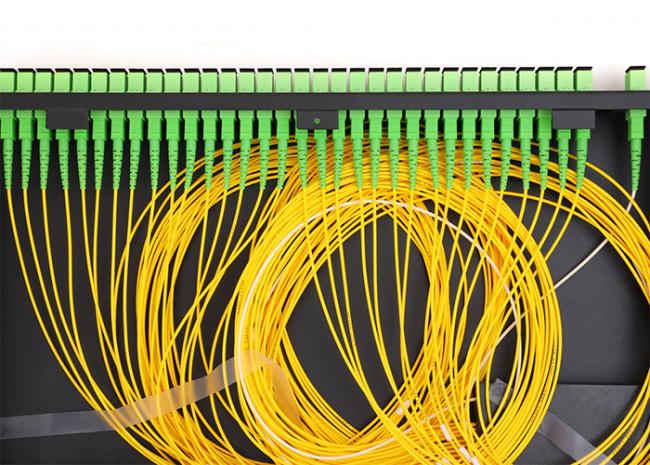

Detail of Fiber Optic PLC Splitter:

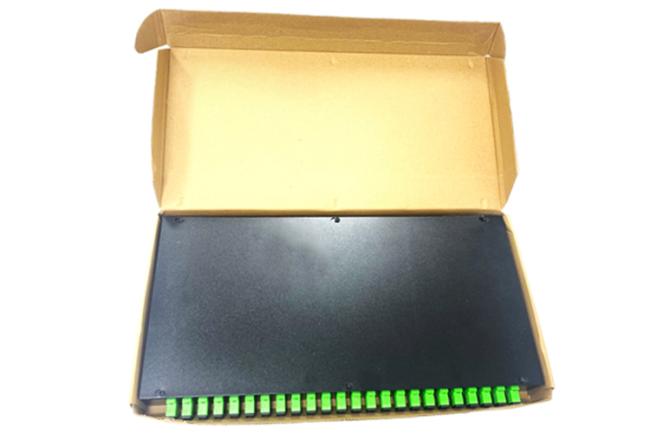

Packaging:
Why choose Begate?
1. We can reduce your costs(Factory-sale)
2. Reliable quality(2years warranty)
3. Fast delivery(within 7days)
4. No MOQ (1piece okay)
5. Credit supports.
6. Customization(Print your logo).
7. Free sample
8. High efficient and professional sales and aftersales services.
9. One-stop services.
Thank you very much for browsing our website and welcome your inquiry at any time. We will serve you wholeheartedly.
