SC UPC Fiber Optic PLC Splitter 1X16 ABS Box Blue FTTH Fiber Optic Cable Splitter
PLC Splitter Fiber Optic 1X16 SC UPC Fiber Optic PLC Splitter ABS Box Blue FTTH
Products description of Fiber Optic PLC Splitter:
Optical fiber PLC splitter is a device used to split and combine light wave energy. It distributes the light energy transmitted in one optical fiber to two or more optical fibers according to a predetermined ratio, or combines the light energy transmitted in multiple optical fibers into one optical fiber.
The PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing.In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal.PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology.They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.
Features of Fiber Optic PLC Splitter:
- Good uniformity and low insertion loss
- Low Polarization Dependent Loss
- Excellent Environmental Stability
- Excellent Mechanical
- Stability Telecordia GR-1221 and GR-1209
- Components through TLC-Certified,Conform to YD1117-2001

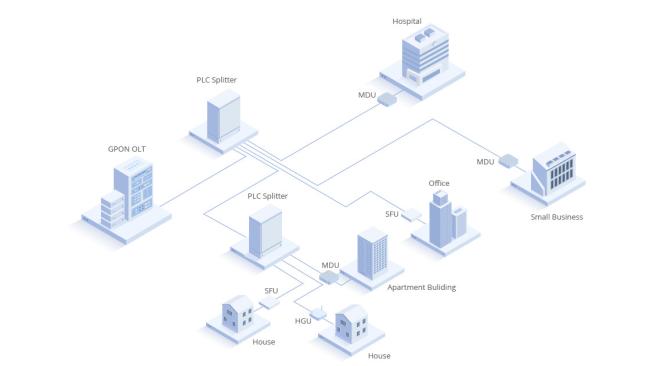

Applications of Fiber Optic PLC Splitter:
- FTTX (FTTB, FTTH, FTTC) Systems
- Passive Optical Network (PON)
- Cable Television (CATV)
- Optical Signal Distribution
- Fiber optical communication system
- Fiber optical sensors
Specification parameter of Fiber Optic PLC Splitter:
A.
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Package | Steel Tube or ABS | |||||
B.
| Product name | Fiber optic PLC splitter | Type | Cassette/ABS box |
| Connector | SC/LC/FC/ST optional | Fiber Type | Single mode |
| Insertion Loss | <0.3db | Return Loss | >45db |
| Length(M) | 1m,2m,5m, or customize | Application | FTTH FTTB FTTX |
| Wavelength | 1260~1650nm | Package | 1pc/bag |

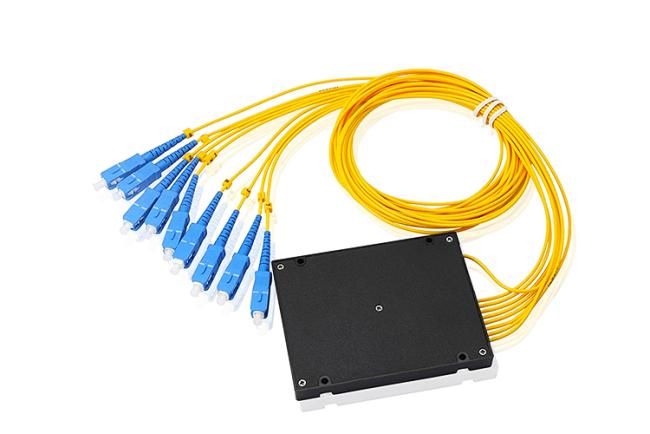

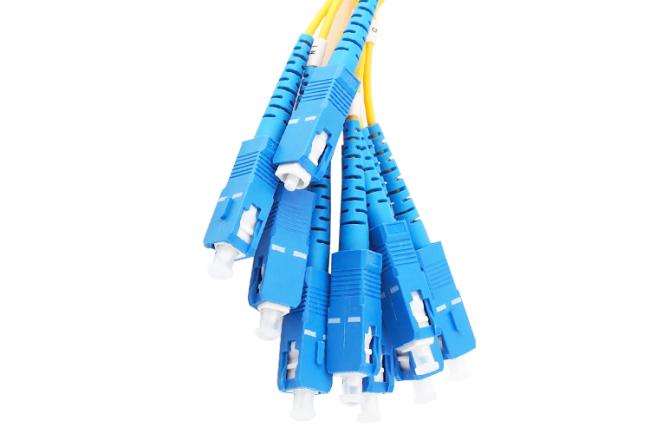

Pictures of Fiber Optic PLC Splitter:
Our Service:
1. We could print your LOGO on the cable.
2. Standard and customized OEM products from small to large quantity are welcome.
3. Compliance with global environmental industry with RoHS and SGS standards.
4. All products are 100% fully tested by our technical expertise.

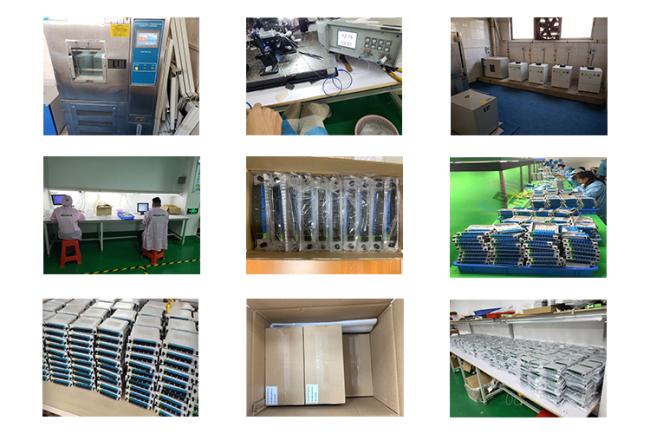

Factory Workshop:
