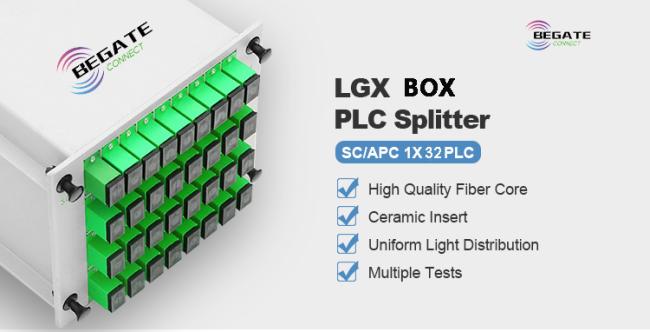

RoHS Fiber Optic PLC Splitter 1x32 SC APC Splitter LGX Cassette FTTH
Fiber Optic PLC Splitter 1x32 SC APC PLC Splitter LGX Box Cassette FTTH
Product Description of Fiber Optic Plc Splitter:
The PLC (Planar Lightwave Circuit) planar waveguide optical splitter is composed of an optical
waveguide chip and optical fiber arrays coupling at both ends. This product uses semiconductor lithography technology to manufacture the optical splitter chip, with stable process, good output consistency, loss and optical wavelength Irrelevant, good channel uniformity, compact structure and small size, widely used in optical fiber communication lines of telecom operators, especially FTTX projects.
Features of Fiber Optic Plc Splitter:
1. Loss is not sensitive to the wavelength of light, and can meet the transmission needs of different wavelengths.
Applications of Fiber Optic PLC Splitter:
1. Fiber to the point (FTTX)
2. Fiber to the home (FTTH)
3. Passive optical networks(PON)
4. Local area networks (LAN)
5. Cable television (CATV)
6. Test equipment
Specification of Fiber Optic PLC Splitter:
1.
| Product Size | ||||
| Model | 1*2/4/8 | 1*16 | 1*32 | 1*64 |
| Bare fiber (250umfiber ) | 4*4*40 | 4*7*50 | 4*7*50 | 4*12*60 |
| Mini type(0.9mm loose) | 4*7*60 | 4*12*60 | 6*20*80 | 6*40*100 |
| ABS Box(2.0mm) | 10*20*90 | 18*80*120 | 18*80*120 | 18*115*141 |
| 10*80*100 | ||||
| Slot-Box | 130*100*25 | 130*100*50 | 130*100*102 | 130*100*206 |
| Rock Mounted(19’Inch) | 483*44.5*200 | 483*44.5*200 | 483*44.5*200 | 483*89*200 |
2.
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB)(Min/Max) | 3.8/4.0 | 7.2/7.4 | 10.5/10.7 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Operating Temperature (℃) | -40～+85 | |||||
| Storage Temperature (℃)) | -40～+85 | |||||
| Operating Humidity | 5% ~ 85% RH | |||||
| Storage Humidity | 5% ~ 85% RH | |||||
| Device Dimension (mm) (L×W×H) | 40×4×4 | 40×4×4 | 40×4×4 | 50×4×4 | 50×7×4 | 60×12×4 |
| Module Dimension (mm) (L×W×H) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 140×115×18 | 140×115×18 |
| Mini-Module Dimension (mm) (L×W×H) | 50×7×4 | 50×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | N/A |

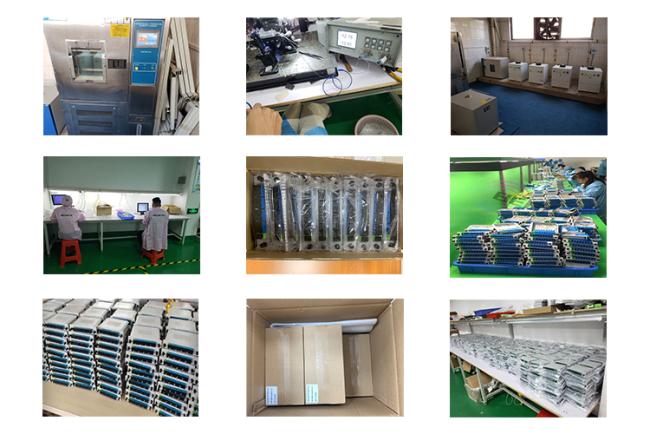

Factory Workshop:

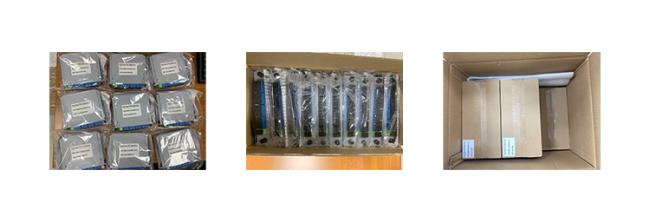

Packaging:
Customers` feedback:
Why choose Begate?
1. Own factory. We can save your money(Factory-sale),
2. Strong R&D ability
3. Strictly quality control with Reliable quality(2years warranty),
4. Fast delivery(within 7days)
5. No MOQ (1piece okay)
6. Credit supports.
7. Customization(Print your logo).
8. Free sample
9. One-stop procurement of products in the telecommunication industry can be achieved.
10. High efficient and professional sales and aftersales services, care bout partners benefits and win-win situation.
Thank you very much for browsing our website and welcome your inquiry. Any more questions? please feel free to contact us now.
We will serve you wholeheartedly.
