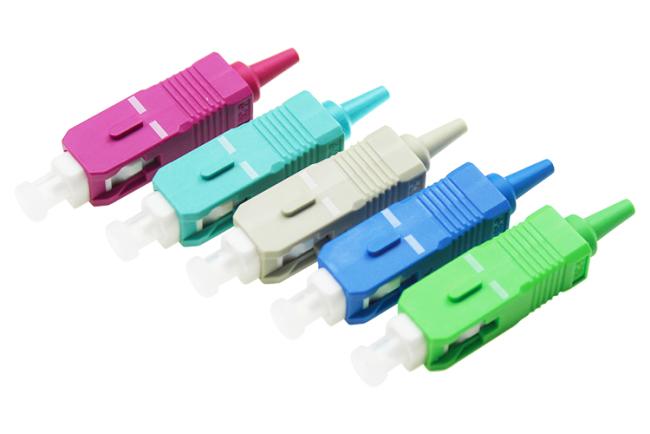

Aqua OM3 Simplex Fiber Connector Single Mode SC Connector With FTTH
Aqua Color Fiber Optic Connector OM3 Smplex Single Mode SC connector with FTTH
Overview of Fiber Optpc Connector:
Fiber Optic SC Connectors, optical fiber and optical fiber is removable (activities) of the connection between the device and the fiber of two surface precision docking it, so that the optical output of light energy to maximize the coupling to the receiving optical fiber, and optical link due to the intervention and to minimize the effects on the system, it is the basic requirement of optical fiber connector. To some extent, optical fiber connectors affect the reliability and performance of optical transmission systems.
Description of Fiber Optic Connector:
1. Good repeatability and exchangeability.
2. 100% NEW raw material and well quality control ensure the best life time.
3. Environmentally friendly materials: aluminum and plastic.
4. Excellent Temperature stability.
5. Lightweight, durable, and easy to use.
6. Low insertion loss,high return loss.
7. Excellent mechanical endurance.
8. Strict curing time and temperature control.
9. Strict testing standards and methods for quality.
Features of Fiber Optic Connector:
1. Low insertion loss(≤ 0.20dB)and high return loss(≥ 55 dB)
2. Free-floating ceramic ferrule
3. UL-rated plastic housing and boot
4. Boots in a variety of colors
5. High precision alignment connector
Applications of Fiber Optic Connector:
1. Telecommunication Networks
2. CATV, Metro
3. Industrial, Medical & Military
4. Test Equipment
5. Active Device Termination
6. Local Area Networks (LANs)
7. Data Processing Networks
8. Wide Area Networks (WANs)

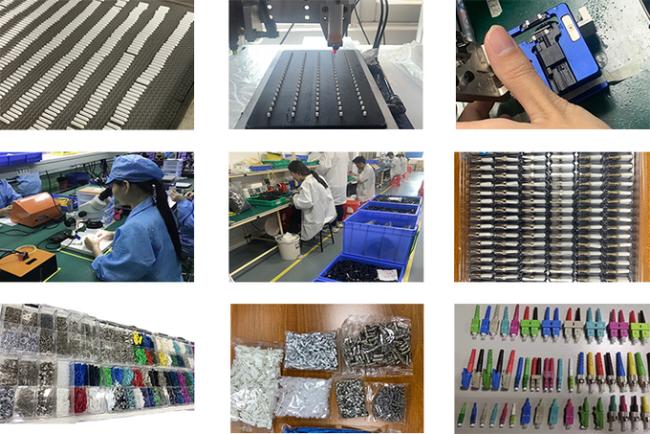

Factory Workshop:
Technical Parameter of Fiber Optic Connector:
1.
| Connector Type | FC,SC,ST,LC,MPO,MTRJ etc |
| Operating Wavelength | 850~1300nm, 1260-1650nm |
| Insertion Loss | ≤0.20dB, Max 0.3dB |
| Return Loss | PC≥45dB, UPC≥50dB,APC≥60dB |
| ferrule | ceramic ferrule |
| Durability | <0.1dB typical change,500 matings |
| Storage Temperature | -40℃~+75℃ |
| Operating Temperature | -40℃~+75℃ |
2.
| Product Model List | |||||
| Type | The casing outside the color | Tail set of color | Toggle clip | Cbele Diameter | Insert core |
| SC | SC UPC | SC UPC | SC UPC | φ0.9mm | Ceramics SM UPC Ceramics SM APC Ceramics MM PC |
| SC APC | SC APC | SC APC | φ1.2mm | ||
| MM | MM | MM | φ2.0mm | ||
| OM3 | OM3 | OM3 | φ3.0mm | ||
| OM4 | OM4 | OM4 | φ3.5mm | ||
| OM5 | OM5 | OM5 | φ4.5mm | ||
Fiber Optic Connector Production Line:
Detail of Fiber Optic Connector:
Advantages:
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantit
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
