LC OM3 Quad Asymmetric Welding Fiber Optic Adapter LC Fiber Coupler Aqua Blue
LC OM3 Quad Asymmetric Welding Fiber Optic Adapter LC Fiber Coupler Aqua Blue
Product Overview of Fiber Optic Adapter:
Fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. Spring supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapter.
Fiber optic adapter, also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time.
Applications of Fiber Optic Adapter:
- Wide Area Networks (WAN)
- Connection at the desk for LAN environments.
- FTTX
- Active device termination
- Patch panels
- Distribution frames
- Maintenance or emergency restoration of fiber networks
- FTTH Outlets
- Telecommunication networks
- Metro networks
- Local Area Networks (LAN)
- Data processing networks
- Premise installations
- Apply for CATV, LAN, Telecom network, test equipment, LC connectors
Features of Fiber Optic Adapter:
- LAN, WAN, and Access System
- Compliant with Telcordia,TIA/EIA and IEC
- NTT-MU hardware compatibility, NTT & JIS compliance
- Low insertion and high return loss
- High Precision Alignment;
- Excellent mechanical endurance
- Customer defined specifications
- Fiber CATV and fiber network System
Technical Specifications of Fiber Optic Adapter:
A.
| Item | Specification | Item | Specification |
| Adapter | ST (metal body) | Adapter | ST (metal body) |
| Singlemdoe(Ceramic Sleeve) | SC/PC | Multimode(Bronze Sleeve) | SC/PC |
| SC/PC/duplex | SC/PC/duplex | ||
| SC/APC | SC/APC | ||
| SC/APC/duplex | SC/APC/duplex | ||
| FC/PC | FC/PC | ||
| FC (D-type metal ) | FC (D-type metal ) | ||
| LC/PC | LC/PC | ||
| LC/PC/duplex | LC/PC/duplex | ||
| LC/APC | LC/APC | ||
| LC/APC/duplex | LC/APC/duplex | ||
| DIN/PC/APC | DIN/PC/APC | ||
| MTRJ plastic | MTRJ plastic | ||
| Hybrid Adaptor | FC-SC | Hybrid Adaptor | FC-SC |
| Singlemdoe(Ceramic Sleeve) | FC-ST | Multimode(Bronze Sleeve) | FC-ST |
| SC-ST | SC-ST | ||
| DIN-SC | DIN-SC | ||
| DIN-ST | DIN-ST | ||
| DIN-FC | DIN-FC |
B.
| Parameter | LC UPC Quad Fiber Optic Adapter | |||
| SM | MM | |||
| PC | UPC | APC | PC | |
| Insertion loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Alternationg loss | ≤0.2dB | |||
| Repeatability | ≤0.2dB | |||
| Durability | The change of 1000 interpolation times is less than 0.2dB | |||
| Working temperature | -40~85°C | |||
| Storage temperature | -40~85°C | |||
| Product Name | LC UPC Quad Fiber Optic Adapter | |||
| Material | Plastic | |||
| Function | FTTH Assmely | |||

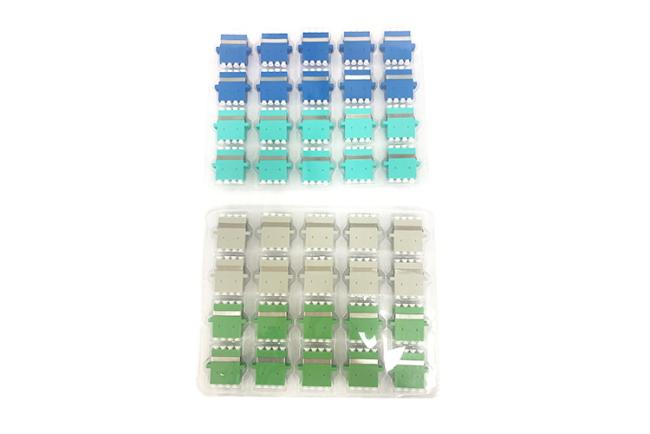

| Package | One Blister for 20pcs | |||

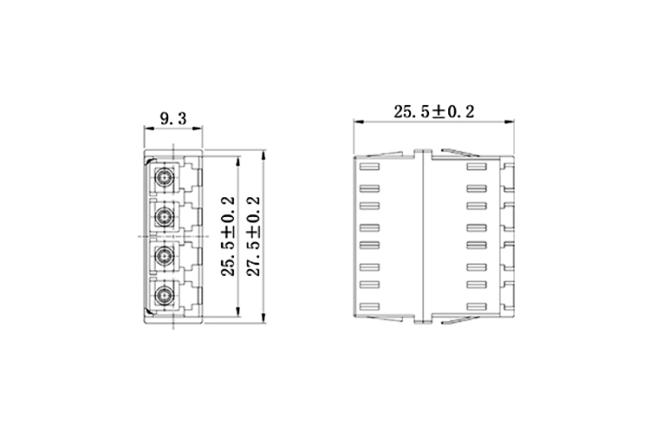

Detail Image of Fiber Optic Adapter:
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantit
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Do you accept OEM or ODM?
A: Yes,we're factory. any your customized requirements we can do our best to help you realize.
