OM3 OM4 High Speed MPO MTP Cable Multi Mode Fiber Optic Patch Cord
Multi Mode OM3 OM4 High Speed MTP MPO Fiber Optic Patch Cord Cable
Product Description

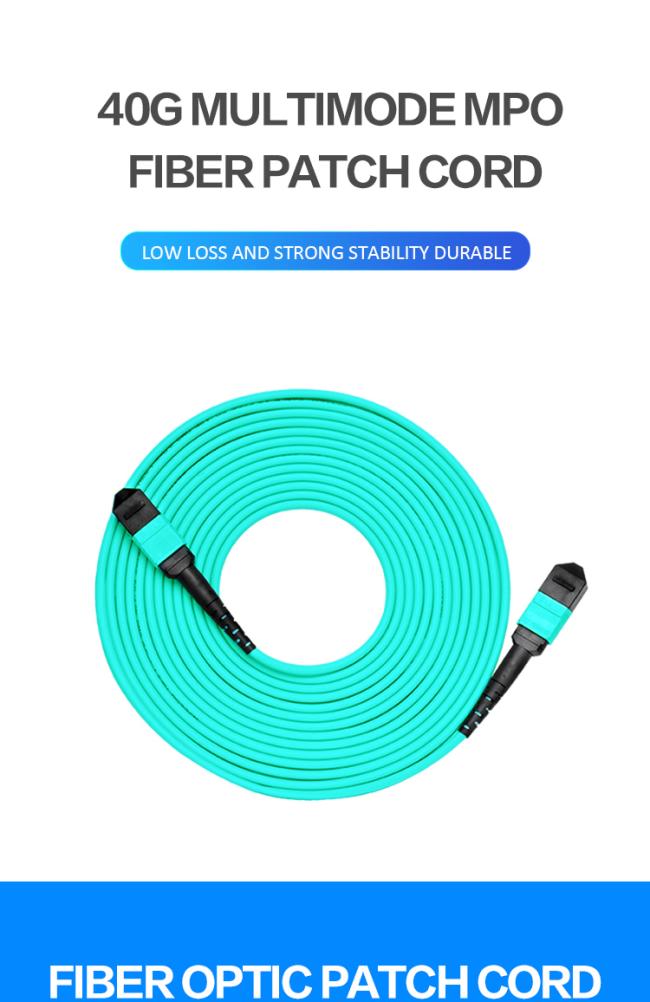

MPO cable assemblies are with 12 core MPO connector female to female. cable type OM3, the cable is widely used for cable expanding in the data center.
Feature
● 12 core cable connection
● OM3/OM4 fiber optic cable
● Smoothly upgrade 10G network to 40G, 100G network, support 100G transmission latency requirement
● Adopts mini round type cable, small diameter, with smaller trunk cable and smaller bending radius, easy f for storage and cable install

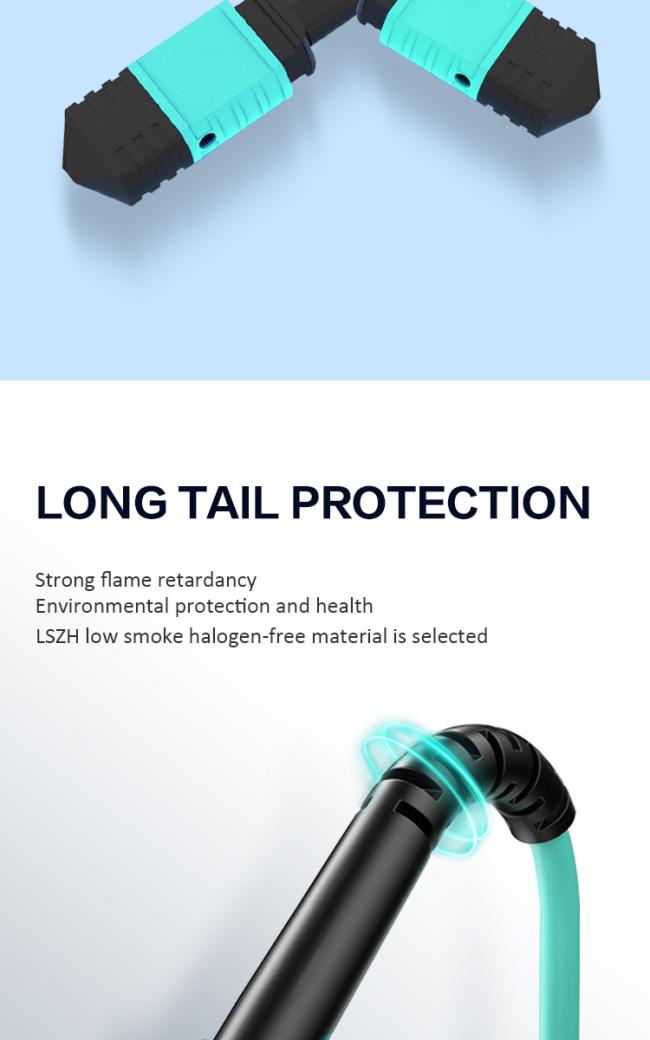

● Use dustproof, compressive strength, tensile strength protective sleeve at both ends, can effectively protect cables and fiber optic connectors in the transportation and installation process from damage
| Connector A | MPO Female (pinless) | Connector B | MPO Female (pinless) |
| Fiber Mode | OM4 (OM3) 50/125μm | Wavelength | 850/1300nm |
| 40/100G Ethernet Distance | 150m at 850nm | 10G Ethernet Distance | 400m at 850nm |
| Glass Fiber | Corning ClearCurve® | RoHS Compliancy Status | Compliant |
| Polish Type | UPC to UPC | Minimum Bend Radius | 7.5mm |
| Insertion Loss | 0.35dB Max(0.15dB Typ.) | Return Loss | ≥20dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
| Jacket OD | 3.0mm | Cable Jacket | LSZH |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Storage Temperature | -40°C to +85°C | Operating Temperature | -10°C to +70°C |
Product Details
Begate provides High Density Multi-fibers Solutions which are Fiber Optic pigtail in data center.
Welcome to your inquiry and we surely provide you good prices, reliable quality and great services!

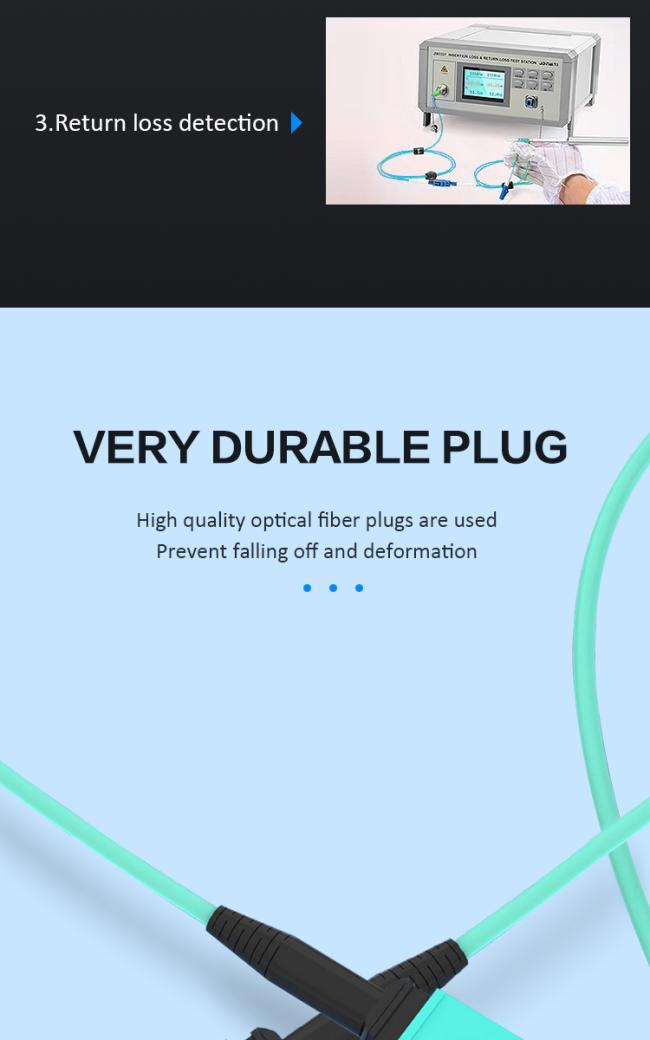

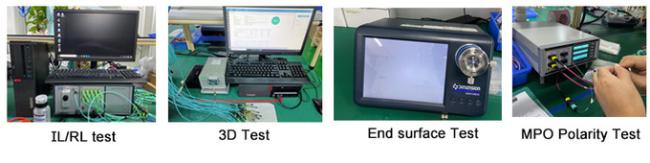

All fiber optic pigtail will be 100% tested before delivery in Begate
Company information
Shenzhen begate Co., Ltd is located in longhua, Shenzhen. The factory covers an area of 20,000 square meters, and has a complete set of automated production and testing equipments. Begate is specialized in manufacturing of network cables, optical fiber quick connector, fiber optical cables, fiber optic adaptor, fiber optic attenuator, fiber optic splitter, professional plc splitter cassette, fiber optic patch cord, fiber optic splice closure, FTTH series and other products of network cabling system. Our products also covers the fiber media converter, Fiber optic cross connect cabinet and Fiber optic splice closure, etc.
In order to meet more high end market’s needs, we imported REELEX machine from US and got the National High-Tech Enterprise Certification in the same year.
We have passed ISO9001-2008 and ISO14001 certification with excellent management systems.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a manufacturer who has 3 factories and welcome to visit!
Q2: What is your MOQ?
A: We are the factory. No MOQ, One piece is available.
Q3:Can you provide the OEM service?
A: Sure, we have the complete production line, we could do the production as your request.
Q4. Can I have a sample order for this product?
A: Yes, for patchcord, FREE SAMPLE is avaible to test and check quality. Mixed samples are acceptable.
Q5: How long is your delivery time?
A: Generally it is 2-5days if the goods are in stock. or it is 7-15 days if the goods are out of stock. The lead time mainly depends on quantity.
Q6: Can I negotiate the prices?
A:Yes, special discounts are available. The more quantities, the cheaper prices.
Q7: How much will the shipping charges be?
A:It depends on the size of your shipment and the method of shipping. We will offer the charge to you as per you requested.
Thank you very much for browsing our website and welcome your inquiry. Any more questions? please feel free to contact us NOW. Wewill serve you wholeheartedly.
