LC Quad Multi Mode 24 Fiber MTP MPO Cassettes 6 Ports Fully Loaded Aqua Blue

LC Quad Multi Mode 24 Fiber MTP MPO Male Cassette 6 Ports Fully Loaded Aqua Blue

Product Presentation of MPO MTP Cassettes:

The MPO/MTP Cassette provide secure transition between MPO/MTP and LC or SC discrete connectors. They provide a quick, reliably high performance and efficient way to deploy up to 24 LC or 12 SC fiber ports in a single module. The Modules can be mounted in 1U or 4U 19' multislot chassis. They are available in Multi-mode and Single-mode cable.

MPO&MTP Cassettes are designed for Data Center Solutions supporting the to pologies as specified in the Data Center Standards EN50173-5 and ISO/IEC24764. MPO cassettes connected with MPO Trunk or MPO Patch cables provide the possibility to make cross-connections or inter-connections to end equipment. MPO Cassettes are available in 2 options:MPO–LC(12fiber), These cassettes are availablein OS2,OM3& OM4 and polarity options are available instraight and pair flipped wire map.

Features of of MPO MTP Cassettes:

1. Customized fiber polarity in the module.
2. High-density and small desing, Easy and fast installation
3. High-quality engineering plastics and Aluminum alloy or cold-rolled sheet material
4. Available in 12/24/48 fiber versions.
5. Standard size, light weight and reasonable structure
6. Splice tray inside changeable
7. Can be used in 19'', 23'' standard distribution frame
8. MPO faceplate can be upgraded easily.
9. The front panel is equipped with LC , MTRJ or SC adapter, rear panel assembles the MPO adapter.
10. There are mark in the front of each port, and can be easily identified.
11. Quick and easy installed ,flexible in configuration and easy to management.
12. Field connections with guaranteed quality and simplifies fiber routing.
13. Modular system management, easy reconfiguration for moves, adds and changes.

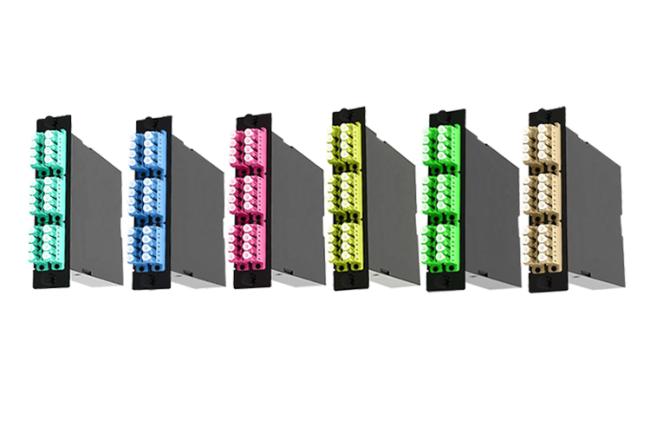

14. Color coeed housings available to differentiate fiber type, polish type and/or connector grade.

Application of MPO MTP Cassettes:

1. Storage area network - fibre channel
2. Parallel optics
3. High Density Fiber Management.
4. High fiber density card edge access
5. Telecommunications subscriber loop
6. Fiber to the home (FTTH)
7. Active dvice termination;
8. Telecommunication networks;
9. Optical System Access network
10. Telecommunications networkd/CATV Networks
11. Data center infrastructure
12. Storage Area Networks( SAN) fiber channels
13. 40G and 100G network applications
14. Array trunk cable

Advantage of Fibe Optic Cassette:

1. Able to hold MTP (MPO) loaded cassettes
2. Customize design available
3. Comprehensive accessory kit for cable entry and fiber management
4. Versatile panel with extendable double slide rails for smooth sliding
5. 1RU suitable 2-4pcs KNC standard adapter plates at different size
6. Silkscreen printing on the front aperture for fiber identification

Technical Specificaiton of MPO MTP Cassesttes:

1.

2.

Other Types of MPO MTP Cassettes:
