G657A1 LSZH PVC 12 Colors Fiber Optic Pigtails APC Single Mode 0.9mm E2000 Pigtails
0.9mm E2000 APC Single Mode G657A1 LSZH PVC 12 Colors Fiber Optic Pigtails
Product Description of Fiber Optic Pigtails:
E2000 fiber optic pigtail includes e2000 single mode or multimode fiber optic pigtail with 9/125um,50/125um,62.5/125um indoor fiber optic cable. that is OS1,OM1,OM2,OM3 even OM4 fiber optic cable.the usual polishing type is pc,upc and apc for the e2000 fiber optic pigtail.
E2000 Single mode Multimode Fiber Optic Pigtails are widely used as its good performance.E2000 optic pigtail features a spring-loaded shutter used to protect the ferrule from dust and E2000 ratches. we supplies possibly the highest quality E2000 optic pigtails available.which address the highest of specifications encountered in the telecommunications market.
Features of Fiber Optic Pigtails:
* Low insertion loss and back reflection loss
* Good exchange ability and good durability
* Meets ISO9001, ROHS and Bell core GR 326-core standards
* Available in 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers etc..
Applications of Fiber Optic Pigtails:
* CATV, LAN, WAN
* Test and measurement
* Telecommunication networks
* Premise installations
* Video and military active device termination
Technique Parameters of Fiber Optic Pigtails:
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652D,G657A | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||

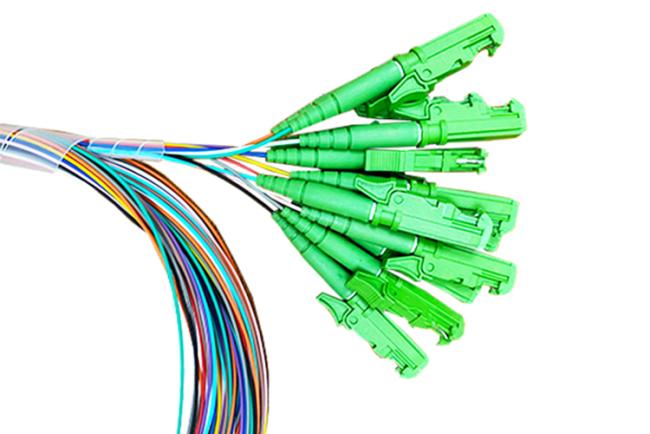

Details of Fiber Optic Pigtails:
Packaging & Shipping:

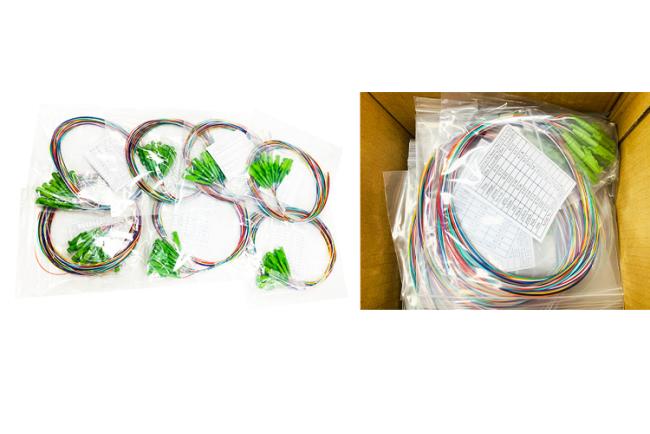

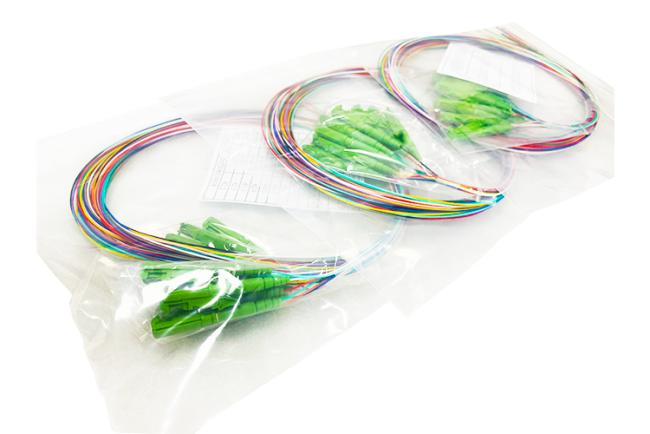

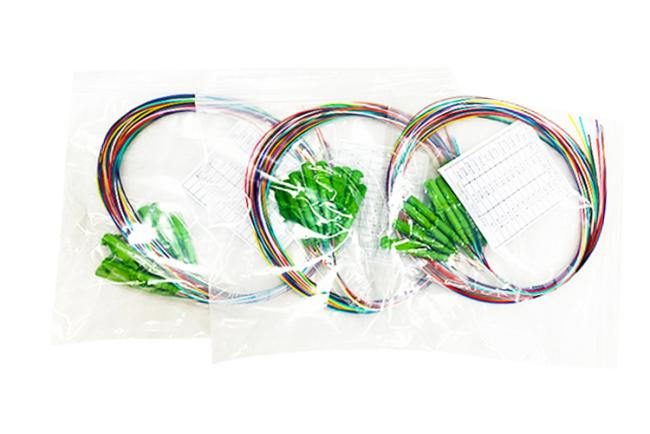

The 12 fiber optic pigtail E2000 has two packing methods:
* One method is that the 12 fiber optic pigtail E2000 is packed in plastic bag, this method can save package, economy for shipment.
* The other method is that the 12 fiber optic pigtail E2000 is plastic blister plastic box, this package is beautiful and better protection, but will make the shipping cost high.
FAQ:
Q1. Could you offer samples?
Yes, samples are accepted.You need place sample order to us, and we will reduce from bulk order.
Q2. What's the delivery time for sample order?
Normally about 3days after confirmation.
Q3. What's the delivery time for bulk order?
Normally 5-10 days depends on products and order quantities.
Q4. Could you do design for us?
Yes, we provide customized service and can do artworks including printing, logo etc. for you.
Q5. What's the payment terms?
TT, WesternUnion, Escrow(secure payment), Trade assurance, Cash, etc.
Q6. Can I use my own LOGO and design on products?
YES, OEM is welcomed.
Q7. How to send the goods?
Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
