IP68 5G Multiport FTTA Outdoor Fiber Splice Enclosure Terminal Distribution Box
Waterproof 5G Multiport FTTA Fiber Optic Terminal Distribution Box For Outdoor
Overview of FTTA Fiber Optic Terminal Distribution Box
FTTA Fiber Optic Terminal Distribution Box used for access points of the FTTx-ODN network. It is a product with all inlet and outlet cables pre-connected, eliminating the need of closure opening and fiber splicing. All ports are equipped with hardened adapters. The operators do not need to splice fibers or open boxes during ODN deployment, which improves service provisioning efficiency. This box is a new economic fiber distributed solution for outdoor use. Compare traditional products, MST box is easy to operate and has high compatibility. Reduces the total cost of operation (TCO) by 15–30%.
It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation. TTA Fiber Optic Terminal Distribution Box not only used in FTTH field, but also used in FTTA or other harsh environment.
Features of FTTA Fiber Optic Terminal Distribution Box
- High compatibility: can be assembled ODVA, Mini SC, ODC, H-connector
- Factory-sealed or field assembly
- 1200N pulling force long term
- From 6 to 12 ports for single or multi-fiber water proof connectors
- Available with PLC or splice sleeve for fiber divide
- IP68 waterproof rating
- Wall-mounting, aerial installation or holding pole installation
- Meet IEC standard
Application of FTTA Fiber Optic Terminal Distribution Box
- FTTA Solutions
- 5G Solutions
Technical Specfication of FTTA Fiber Optic Terminal Distribution Box
| Material | Reinforce Plastic and stainless steel |
| Dimensions LxWxH | 100*378*132 mm |
| Ingress protection | IP68 |
| Max Capacity | 1pcs 12core pigtail or 1pcs 1*12 PLC splitter or 1pcs MPO to 12 SC patchcord |
| Reinforced Adapter | 4/6/8/12pcs adaptor |
| Temperature range | -40~80℃ |
| Color | Black |

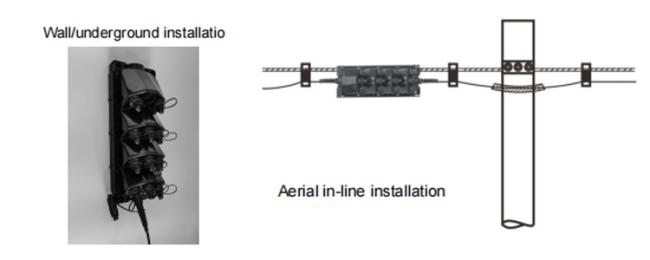

Installation Methods of FTTA Fiber Optic Terminal Distribution Box

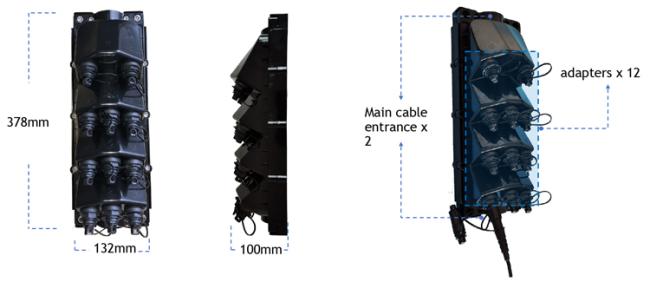

Dimension of FTTA Fiber Optic Terminal Distribution Box

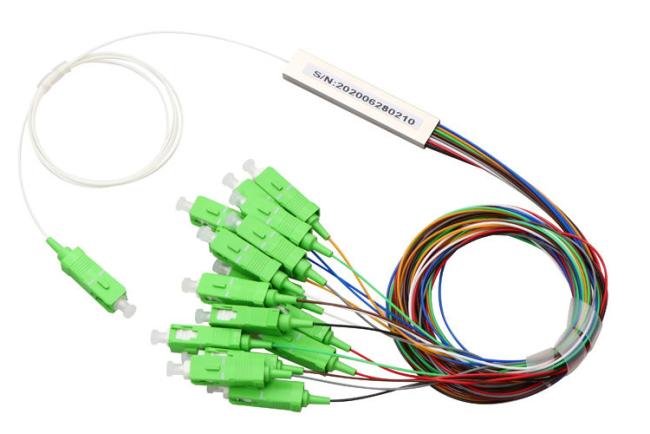

- Micro type splitter is with compact design and suitable to install in small distribution boxes.
- Splitting ratio is from Nx2 to Nx64.
- APC and UPC connector.
- The pigtail is 0.5m, 1m or other specific length.
- The color scheme of fan-out pigtails is customizable as per customer’s requirement.

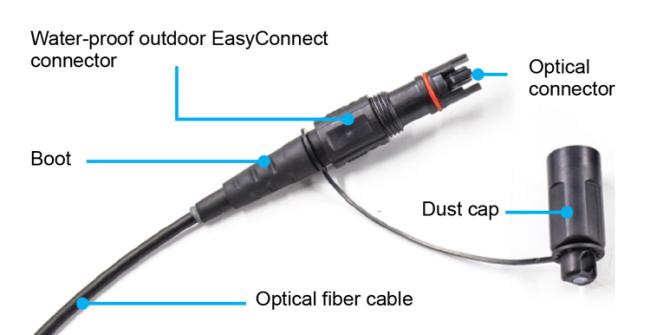

The Drop Cable installed in FTTA Fiber Optic Terminal Distribution Box
The cable could be different structures such as 2x5mm flat cable or ∅5mm round cable.
