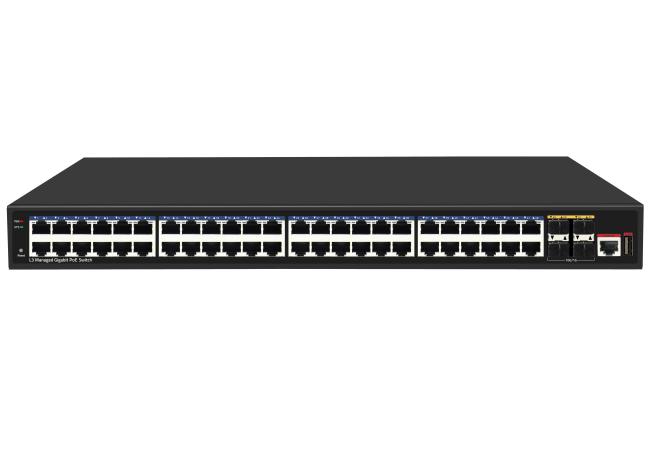

10 Gigabit PoE Industrial Ethernet Switch 400W Layer 3 52 Port
Enterprise 52-port 10 Gigabit Uplink 400W Layer 3 Managed PoE Console USB Switch
48 Gigabit PoE ethernet ports + 4 10 Gigabit uplink SFP optical ports + 1 USB serial port + 1 Console port, of which 1-48 ports comply with IEEE 802.3af/at international standards, single port maximum power supply power 30W, total machine power 400W, backplane bandwidth 176Gbps, layer 3 network management function, support routing, DHCP, VLAN, MAC address, ACL access control, QOS, multicast, storm suppression, IPV4/ IPV6 and other service functions, support ring network, extreme speed detection and self-healing function, support 802.1X authentication, ARP intrusion detection, IP source protection, DoS protection and other security control policies, support STP/RSTP/MSTP spanning tree protocol, dynamic/static link aggregation and other network protection functions, support Web/Telnet/CLI/SSH management and maintenance mode, adapt to -10°C~50°C wide temperature environment work, power input AC100-240V 50/60Hz, 1U rackmount.
| I/O Interface | |
| Power | Input: AC 100-240V, 50/60Hz |
| Ethernet |
24* 10/100/1000Mbps PoE Port 4* 1000M RJ45 Port(Combo) 4*1000M SFP Port (Combo) 1 * RJ45 Console Port |
| Performance | |
| Switching Capacity | 56Gbps |
| Throughput | 41.66Mpps |
| Packet Buffer | 4Mb |
| Flash Memory | 16MB |
| DDR SDRAM | 128MB |
| MAC Address | 8K |
| Jumbo Frame | 9.6Kbytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 hour |
| Standard | |
| Network protocol |
IEEE 802.3:Ethernet MAC Protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3az:Energy Efficient Ethernet IEEE 802.3ad:Standard method for performing link aggregation IEEE 802.3x:Flow control IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p:LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q:VLAN Bridge Operation IEEE 802.1x:Client/Server Access Control and Authentication Protocol IEEE 802.1d:STP IEEE 802.1s:MSTP IEEE 802.1w:RSTP |
|
PoE Protocol
|
IEEE802.3af (15.4W) IEEE802.3at (30W) |
| Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge) |
|
Network Medium
|
10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) Multi-mode Fiber: 50/125,62.5/125,100/140um Single-mode Fiber: 8/125,8.7/125,9/125,10/125um |
About us
Established in 2012, iyunlink is a professional manufacturer specialized in WiFi networking.Our main products are WiFi Router 4G Router Bonding Router... Our Professional R&D team, well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. With over 10 years’ experience in networking products,we have obtained ISO9001, High-tech Enterprise certificates and our products comply with CE,FCC,RoHS,REACH,Telec,GS certificate...
Services
Our service:
---Your inquiry will be replied in 24hours
---Well-trained and experienced staffs to answer all your inquires in fluent English
---OEM&ODM, for any of your customized products we can help you to design and put into product
---Monthly output over 6,000,000 pcs
---All our products with 12months guarantee
About sample:
---Sample is available.
---Sample lead time: 2-3 working days, 4-5 days with customized logo
---More details, please contact with us.
Payment methods:
---T/T, Western Union, LC.
---30% deposit, balanced before shipment.
Shipping & Trade terms:
---By sea, air, or UPS, FEDEX, EMS, DHL, etc.
---Payment:T/T, Western Union, LC.
---Delivered time: 2-3 business days for sample, 20-25 days for mass orde
We are based in Guangdong, China, start from 2014,sell to North America(1.00%),South America(1.00%),Eastern Europe(1.00%),Southeast Asia(1.00%),Africa(1.00%),Oceania(1.00%),Mid East(1.00%),Eastern Asia(1.00%),Western Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Southern Europe(1.00%),South Asia(1.00%),Domestic Market(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
routers,Ethernet switches,Embedded Industrial Computer
4. why should you buy from us not from other suppliers?
We have 10 years of design and development experience, mainly designing 4G industrial routers, 5g industrial routers, wireless wifi6 routers, switches, AI smart gateways
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: null;
Language Spoken:null
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
