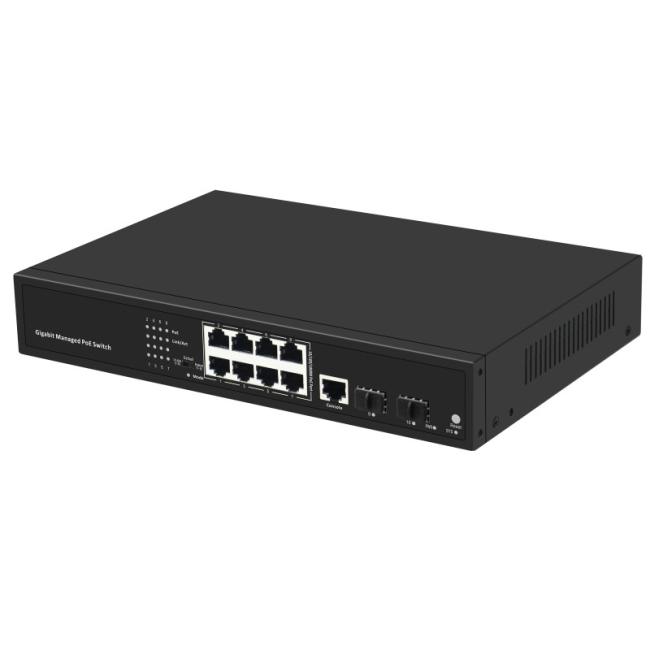

DC 12V 2A Industrial Ethernet Switch 20Gbps 10 Port For Enteprises
Hot Selling 20Gbps10-port Gigabit Managed Ethernet DC12V 2A Switch for Enterpeises
8 Gigabit Ethernet ports + 2 Gigabit SFP ports + 1 management port, backplane bandwidth 20Gbps, Layer 2 network management functions, support routing, DHCP, VLAN, MAC address, ACL access control, QOS, multicast, storm suppression, IPV4/IPV6 and other service functions, support ring network, extreme speed detection and self-healing function, support 802.1X authentication, ARP intrusion detection, IP source protection, DoS protection and other security control policies, support STP/RSTP/ MSTP spanning tree protocol, dynamic/static link aggregation and other network protection functions, support Web/Telnet/CLI/SSH management and maintenance mode, adapt to -10 °C ~ 50 °C wide temperature environment work, DC12V2A, built-in power supply.
| I/O Interface | |
| Power | DC 12V |
| Ethernet |
8*10/100/1000Mbps Ethernet Port 2*1000Mbps SFP Port 1*Console Port |
| Performance | |
| Bandwidth | 20Gbps (non-blocking) |
| Packet Forwarding rate | 14.88Mpps |
| Packet Buffer | 4M |
| Memory Capacity | 128MB |
| Flash Capacity | 16MB |
| MAC Address | 8K |
| VLANs | 4096 |
| Jumbo Frame | 9.6Kbytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 hour |
| Standard | |
| Network protocol |
IEEE802.3: 10Base-T IEEE802.3u :100Base-TX IEEE802.3ab: 1000Base-TX IEEE802.3z :1000Base-FX IEEE 802.3x:Flow control IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p:LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q:VLAN Bridge Operation IEEE 802.1x:Client/Server Access Control and Authentication Protocol IEEE 802.3ad:Standard method for performing link aggregation IEEE 802.1d:STP IEEE 802.1s:MSTP IEEE 802.1w:RSTP |
| Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge) |
|
Network Medium
|
10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) |
|
optical characteristics
|
multi mode:850/1310nm (0-2KM) Single mode:1310/1550/1490nm(0-120KM) |
About us
Established in 2012, iyunlink is a professional manufacturer specialized in WiFi networking.Our main products are WiFi Router 4G Router Bonding Router... Our Professional R&D team, well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. With over 10 years’ experience in networking products,we have obtained ISO9001, High-tech Enterprise certificates and our products comply with CE,FCC,RoHS,REACH,Telec,GS certificate...
Services
Our service:
---Your inquiry will be replied in 24hours
---Well-trained and experienced staffs to answer all your inquires in fluent English
---OEM&ODM, for any of your customized products we can help you to design and put into product
---Monthly output over 6,000,000 pcs
---All our products with 12months guarantee
About sample:
---Sample is available.
---Sample lead time: 2-3 working days, 4-5 days with customized logo
---More details, please contact with us.
Payment methods:
---T/T, Western Union, LC.
---30% deposit, balanced before shipment.
Shipping & Trade terms:
---By sea, air, or UPS, FEDEX, EMS, DHL, etc.
---Payment:T/T, Western Union, LC.
---Delivered time: 2-3 business days for sample, 20-25 days for mass order.
We are based in Guangdong, China, start from 2014,sell to North America(1.00%),South America(1.00%),Eastern Europe(1.00%),Southeast Asia(1.00%),Africa(1.00%),Oceania(1.00%),Mid East(1.00%),Eastern Asia(1.00%),Western Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Southern Europe(1.00%),South Asia(1.00%),Domestic Market(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
routers,Ethernet switches,Embedded Industrial Computer
4. why should you buy from us not from other suppliers?
We have 10 years of design and development experience, mainly designing 4G industrial routers, 5g industrial routers, wireless wifi6 routers, switches, AI smart gateways
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: null;
Language Spoken:null
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
