Overview:

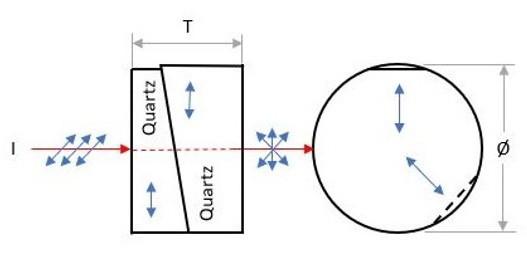

Quartz Lyot Depolarizer is used to convert a polarized incoming monochromatic light beam into a pseudo-random polarized beam. Incoming light beam with broadband source will also be converted by the depolarizer that varies spatially and wavelength. Quartz Lyot Depolarizer is constructed of two crystal quartz wedges. The optical axis of each wedge is along the plane, whereas the orientation angle between the two wedges is 45°. This depolarizer is unique as there is not requirement in orienting the axes of the depolarizer, and is useful if the initial polarization state of incoming light is unknown.

These quartz lyot depolarizers are ideal for greater than 6mm diameter Monochromatic Light & Broadband Light. We offer these quarts lyot depolarizers with technique of epoxy cemented and optically contacted.

General Specifications of Quartz Lyot epolarizer:

Standard Products of Quartz Lyot Depolarizer:
