600mcd High Lightness 0.35mm Ultra Thin SMD LED Chips 20mA LED SMD 5 Volt
600mcd High Lightness 0.35mm Ultra Thin SMD LED Chips 20mA LED SMD 5 Volt
Absolute Maximum rating of 3216 Chip SMD LED:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Forward current | If | 30 | mA |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 90 | mW |
| Operationg temperature | Top | -40∼+85 | °C |
| ESD(Human-body mode | -- | 2 | KV |
| Storage temperature | Tstg | -40∼+85 | °C |
| Peak pulsing current(1/8 duty f=1kHz | lfP | 125 | mA |
Electrical characteristics of 3216 Chip SMD LED:(Ta=25°C)
| Parameter | Test condition | Symbol | Value | Unit | ||
| Min | Typ | Max | ||||
| Dominant wavelength | If=20mA | λd | 520 | --- | 530 | nm |
| Forward voltage | If=20mA | Vf | 2.8 | 3.0 | 3.2 | v |
| Luminous intensity | If=20mA | Iv | 600 | --- | 800 | mcd |
| Viewing angle at 50% lv | If=10mA | 2θ1/2 | 120 | Deg | ||
| Resverse current | Vr=5v | Ir | 10 | mA | ||

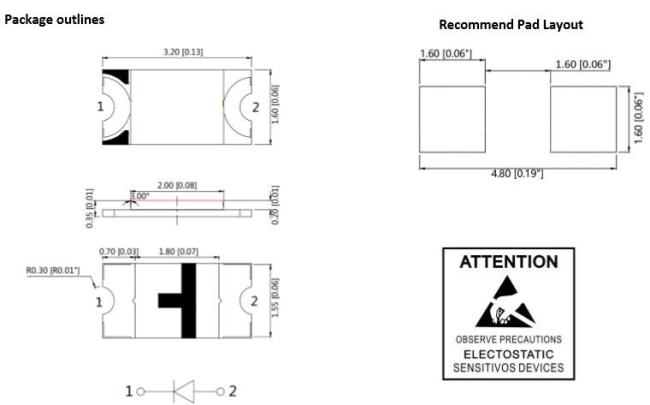

Outline dimension of 3216 Chip SMD LED:
Feature of 3216 Chip SMD LED:
3.2mm×1.6mm SMD LED 0.35mm thickness
Avaliable color:red yellow blue green RGB etc.
1. Low power consumption
2. Wide view angle
3. Long lifespan
4. ROHS Compliant
Application of 3216 Chip SMD LED:
1. Backlight
2. Home appliances
3. Instrumentation
4. Lighting
5. Traffic lights
6. Outdoor display and many other fields
Ideal for backlight and indicator and membrane switch
Various colors and lens types available
Hot sales
Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.
LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.
Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.
XMH provides excellent sales service and strong technical supports to our customers.
Why choose us?
1. Your inquiry for our products or prices will be replied in 24 hours
2. Protection of your sales area,ideas of design and all your private in formation.
3. We guarantee both quality and service regardless of your order qty.
4. Advanced equipment and goods materials:ASM machine good chip and expoxy resin.
5. If there is LED failure, how can you support?
A: Clients provide us with pictures of the failed products or the samples rejected, our engineers of after sale team will analyze the failure and find out the failure reasons. If the failure was caused by Xinminghong, we will compensate with qualified replacement as fast as we could!
6. Would you offer free samples?
A: Yes, We would offer free samples
7. What about the lead time?
A: It depends on the order quantity. Generally the lead time should be 5-7 working days. For samples, the delivery could be as fast as same day.
3000pcs/reel Reel+Anti-static bag+carton
All items will be shipped by DHL UPS EMS SF airmail with tracking number in order to speed up the delivery
