High Bright 0805 SMD 5v IR Infrared LED 5mm 940nm IR LED SMD Chip

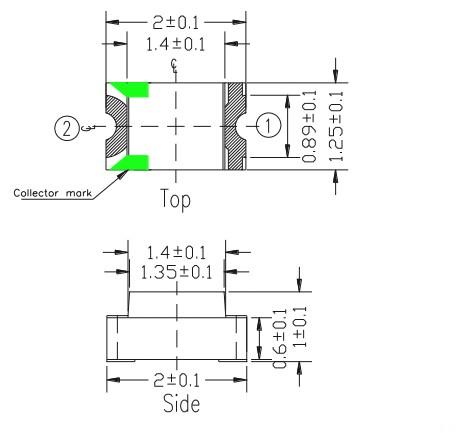

Outline dimension:
Feature:
0805 smd 940nm IR LED
Long lifespan
Package:3000pcs/bag
ROHS Compliant
Application:
Ideal for backlight and indicator
Various colors and lens types available
Absolute Maximum rating:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 90 | mW |
| Operationg temperature | Top | -30∼+80 | °C |
| ESD(Human-body mode | -- | 2 | KV |
| Storage temperature | Tstg | -40∼+100 | °C |
Electrical characteristics:(Ta=25°C)
| Parameter | Test condition | Condition | Value | Unit | ||
| Min | Typ | Max | ||||
| Collector-Eimmitter | Vce(sat) | Ic=2ma Ee=0mW/cm² | --- | --- | 0.4 | v |
| Forward voltage | If=100uA | Vf | 1.2 | --- | 1.5 | v |
| Wavelength of Peak Sensitivity | --- | λp | --- | 940 | --- | nm |
| Rang of spectral bandwidth | --- | λp | 730 | --- | 1100 | nm |
| Collector Dark Current | Ee=1mW/cm² Vce=20V | Iceo | 100 | nA | ||
Hot sales
Dual color red and green 3227 bi-color smd led for charger
Hot selling promotion 0805 smd led diode use for car LED display
PACKAGE:
Standard export carton packing. 3000pcs/bag 30bags/box
DELIVERY TIME:
1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.
LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.
Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.
MH provides excellent sales service and strong technical supports to our customers.
Why choose us?
1,Your inquiry for our products or prices will be replied in 24 hours
2,Protection of your sales area,ideas of design and all your private in formation.
3,We guarantee both quality and service regardless of your order qty.
4,Advanced equipment and goods materials:ASM machine good chip and expoxy resin.
5,If there is LED failure, how can you support?
A:Clients provide us with pictures of the failed products or the samples rejected, our engineers of after sale team will analyze the failure and find out the failure reasons. If the failure was caused by Xinminghong, we will compensate with qualified replacement as fast as we could!
6,Would you offer free samples?
A:Yes, We would offer free samples
7,What about the lead time?
A:It depends on the order quantity. Generally the lead time should be 5-7 working days. For samples, the delivery could be as fast as same day.
