Small Size SMT Type 70mA Top SMD LED 0.2W Warm White 1600K 1800k
Small Size SMT Type 70mA Top SMD LED 0.2W Warm White 1600K 1800k
Small Size SMT Type SMD LED Chips 2016 0.2W Warm White 1600-1800k 3.0V San'An Chip Diode
Absolute Maximum rating of 2016 smd led:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Forward current | If | 70 | mA |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 200 | mW |
| Operationg temperature | Top | -40∼+85 | °C |
| ESD(Human-body mode | -- | 1.5 | KV |
| Storage temperature | Tstg | -40∼+85 | °C |
| Peak pulsing current(1/8 duty f=1kHz | lfP | 125 | mA |
Electrical characteristics of 2016 smd led:(Ta=25°C)
| Parameter | Test condition | Symbol | Value | Unit | ||
| Min | Typ | Max | ||||
| color temperature | If=700mA | λd | 1600 | - | 1800 | k |
| Forward voltage | If=700mA | Vf | 3.0 | - | 3.2 | v |
| Luminous flux | If=700mA | Iv | 18 | - | 20 | lm |
| Viewing angle at 50% lv | If=700mA | 2θ1/2 | 120 | Deg | ||
| Resverse current | Vr=5v | Ir | 10 | mA | ||

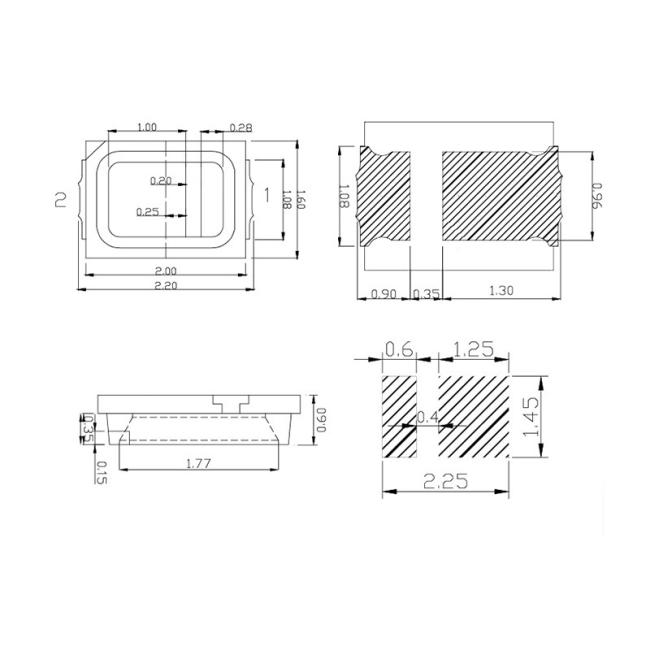

Outline dimension of 2016 smd led:
Feature of 2016 smd led:
2.0mmx1.6mm SMD LED
Avaliable color:red yellow blue green RGB etc.
Application of 2016 smd led:
Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
Various colors and lens types available.
Hot sales
Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.
LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.
Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.
XMH provides excellent sales service and strong technical supports to our customers.
Why Choose US?
Q1: Are you a manufacturer or a trading company ?
A: We're professional manufacturer of Chip SMD LED, providing one-stop OEM & ODM service to all partners all over the world.
Q2: How does your factory do regarding quality control?
A: Quality is priority.Quality is the sole criterion for testing companies
Q3: Can you give some samples?
A: We are honored to offer you samples for quality check.
Q4: How to proceed an order for led light?
A: First let us know your requirements or application. Secondly, we will quote according to your request or our suggestion. Third, the customer confirms the sample and orders the deposit. Fourthly, we will arrange production immediately.
Q5: How soon will my order shipped?
A: Generally, upon the receipt of payment, goods will be shipped out within 2 working days for samples. (Note: Exact delivery time mainly depends on the carrier services)
PACKAGE:
Single package size: 21X24X1 cm
Package Type: 4000pcs / reel, 40bags / carton & According To The Request.
Standard export carton packing.
DELIVERY TIME:
1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
