High Lumen 15LM 20LM 0.5W SMD LED 3433 Medium Power For Car Lights
High Lumen 15LM 20LM 0.5W SMD LED 3433 Medium Power For Car Lights
High Lumen 15-20LM 0.5W Red LED 3433 SMD LED Medium Power Car Lights
Absolute Maximum rating of 3433 smd led:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Forward current | If | 150 | mA |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 500 | mW |
| Operationg temperature | Top | -40∼+85 | °C |
| ESD(Human-body mode | -- | 2 | KV |
| Storage temperature | Tstg | -40∼+85 | °C |
| Peak pulsing current(1/8 duty f=1kHz | lfP | 125 | mA |
Electrical characteristics of 3433 smd led:(Ta=25°C)
| Parameter | Test condition | Symbol | Value | Unit | ||
| Min | Typ | Max | ||||
| Dominant wavelength | If=150mA | λd | 620 | --- | 625 | nm |
| Forward voltage | If=150mA | Vf | 2.0 | 2.2 | v | |
| Luminous Flux | If=150mA | φ | 15 | 20 | lm | |
| Viewing angle at 50% lv | If=150mA | 2θ1/2 | 120 | Deg | ||
| Resverse current | Vr=5v | Ir | 10 | mA | ||

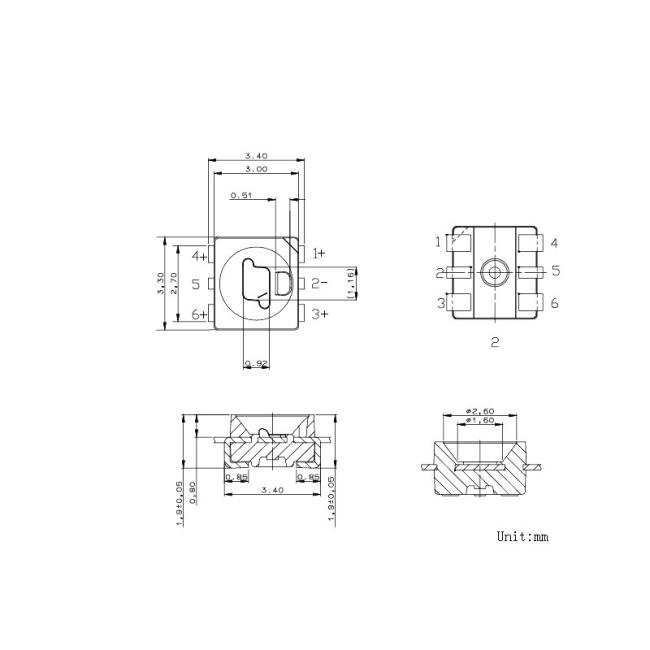

Outline dimension of 3433 smd led:
Feature of 3433 smd led:
3.4mmx3.3mm SMD LED,1,9mm thickness
Avaliable color:red yellow blue green RGB etc.
1. Medium power
2. High brightness
2. Long life
4. High luminous efficiency
Application of 3433 smd led:
1. Outdoor billboard
2. Electronic display
3. Traffic light
4. signboard
5. Car tail light
Ideal for backlight and indicator
Various colors and lens types available
Hot sales
Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.
LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.
Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.
XMH provides excellent sales service and strong technical supports to our customers.
Why choose us?
Q1: Are you a manufacturer or a trading company ?
A1: We're professional manufacturer of Chip SMD LED, with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory. Our products have exported worldwidesince the year 2004.
Q2: Can I get some samples for tests?
A2: Yes, we welcome sample order to test and check quality.
Q3: How do you ship the goods and how long does it take to arrive?
A3: We usually ship by DHL, UPS express, FedEx or TNT. It usually takes 5-7 days to arrive.
Q4: If there is LED failure, how can you support?
A4: Clients provide us with pictures of the failed products or the samples rejected, our engineers of after sale team will analyze the failure and find out the failure reasons. If the failure was caused by Xinminghong, we will compensate with qualified replacement as fast as we could!
PACKAGE:
Single package size: 21X24X1 cm
Package Type: 2000pcs / reel, 40bags / carton & According To The Request.
Inner packaging: Anti-static Bag Vacuum Packaging
Outer packaging: Standard export carton packing.
DELIVERY TIME:
1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
