RGB Full Color Multicolor Led SMD Side Emitting Blue Green Red Lights
RGB Full Color Multicolor Led SMD Side Emitting Blue Green Red Lights
RGB Full Color LED 020 Side Emitting Blue Green And Red Three-color Lights Multicolor Led SMD
Absolute Maximum rating of 020 Bi-color smd led:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Forward current | If | 30 | mA |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 60 | mW |
| Operationg temperature | Top | -40∼+85 | °C |
| ESD(Human-body mode | -- | 3 | KV |
| Storage temperature | Tstg | -40∼+85 | °C |
| Peak pulsing current(1/8 duty f=1kHz | lfP | 125 | mA |
Electrical characteristics of 020 Tri-color smd led:(Ta=25°C)
| Parameter | Test condition | Symbol | Value | Unit | |||
| color | Min | Typ | Max | ||||
| Dominant wavelength | If=20mA | λp | blue | 465 | --- | 478 | nm |
| green | 525 | --- | 535 | ||||
| red | 615 | --- | 628 | ||||
| Forward voltage | If=20mA | Vf | blue | 2.6 | --- | 3.2 | v |
| green | 2.4 | --- | 3.2 | ||||
| red | 1.5 | --- | 2.6 | ||||
| Luminous intensity | If=20mA | Iv | blue | 34 | --- | 120 | mcd |
| green | 280 | --- | 400 | ||||
| red | 30 | --- | 120 | ||||
| Viewing angle at 50% lv | If=10mA | 2θ1/2 | 120 | Deg | |||
| Resverse current | Vr=5v | Ir | 10 | mA | |||

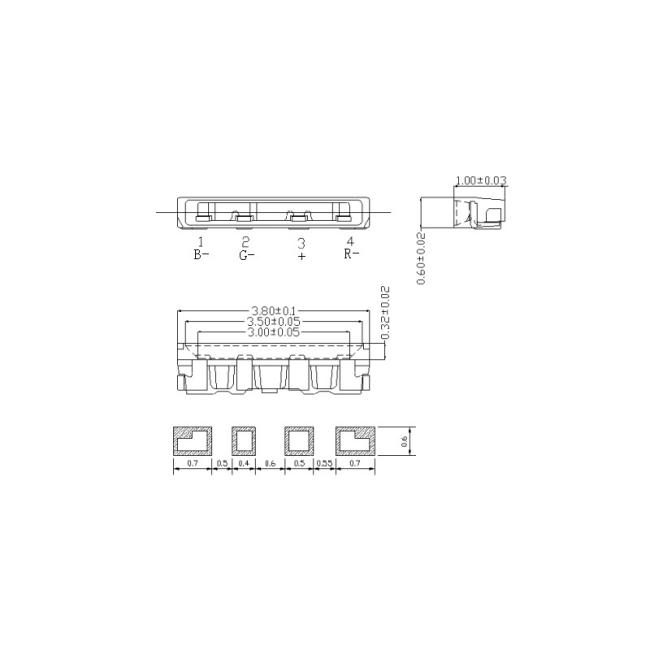

Outline dimension of 020 Tri-color smd led:
Feature of 020 Tri-color smd led:
1. Small calorific value, high brightness
2. Low light attenuation: 3000 hours average attenuation
3. Super long service life (more than 50,000 hours)
4. Good electrostatic protection
5. The process conforms to RoHs standard
Application of 020 Tri-color smd led:
1. Home Appliances
2. Automotive electronics
3. Lighting lighting
4. Electronic toys
5. Traffic instructions
6. Urban lighting engineering and other related products
Hot sales
Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.
LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.
Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.
XMH provides excellent sales service and strong technical supports to our customers.
Why choose us?
Q2: How do you control the quality ?
A2: We have perfect QC system (IQC, IPQC, FQC, OQC team), professional product engineers and continuous improvement system.
Q3: Is there any discount for bulk order?
A3: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q4: How to choose LED light source ?
A4: Lumens(LM), light efficency(LM/W), life span((hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.
Q5: How to process the order?
A5: 1. Let us know the requirements(size, color, power and quantity) of the products you need.
2. We will send you the quotation and check the stock.
3. We will send you proformer invoice after you confirm the samples.
4. You make the payment after checking the details.
5. We will arrange the delivery and continue to provide you the best service.
Q6: How about the quality of the leds?
A6: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China. Our products have exported worldwidesince the year 2004.we offer 2 years warranty
PACKAGE:
Single package size: 21*24*1cm
Package Type: 2000pcs / tube, 40bags / carton & According To The Request.
Inner packaging: Anti-static Bag vacuum Packaging
Outer packaging: Standard export carton packing.
DELIVERY TIME:
1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
