850nm IR Infrared LED 3mm Through Hole High Intensity Radiation Power 20-50mW
850nm IR Infrared LED 3mm Through hole High Intensity Radiation Power 20-50mW Infrared LED
3mm Through hole 850nm IR Infrared LED High Intensity Radiation Power 20-50mW Infrared LED
Absolute Maximum rating of 3mm 850nm IR Infrared LED:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 90 | mW |
| Operationg temperature | Top | -30∼+80 | °C |
| ESD(Human-body mode | -- | 2 | KV |
| Storage temperature | Tstg | -40∼+100 | °C |
Electrical characteristics of 3mm 850nm IR Infrared LED:(Ta=25°C)
| Parameter | Test condition | Condition | Value | Unit | ||
| Min | Typ | Max | ||||
| Collector-Eimmitter | Vce(sat) | Ic=2ma Ee=0mW/cm² | --- | --- | 0.4 | v |
| Forward voltage | If=20mA | Vf | 1.2 | --- | 1.6 | v |
| Wavelength of Peak Sensitivity | --- | λp | --- | 850 | --- | nm |
| Rang of spectral bandwidth | --- | λp | 840 | --- | 860 | nm |
| Collector Dark Current | Ee=1mW/cm² Vce=20V | Iceo | 100 | nA | ||

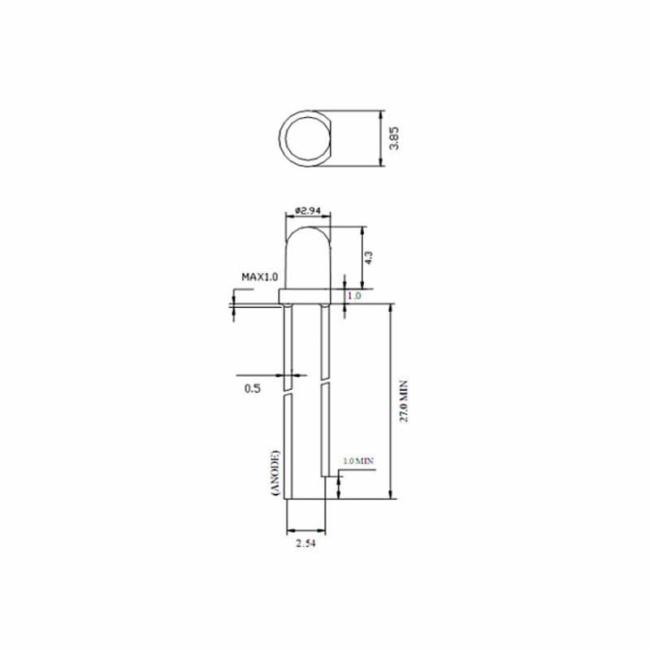

Outline dimension of 3mm 850nm IR Infrared LED:
Feature of 3mm 850nm IR Infrared LED:
1. Low attenuation
2. Low energy consumption
3. Long life
4. Antistatic capacity
5. Luminescence stabilization
6. Colloids are free of impurities and bubbles
Application of 3mm 850nm IR Infrared LED:
1. Consumer electronics
2. Display boards
3. Indicators
Hot sales
Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.
LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.
Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.
XMH provides excellent sales service and strong technical supports to our customers.
Why choose us?
Q1: Are you a manufacturer or a trading company ?
A1: We're professional manufacturer of Chip SMD LED, with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory. Our products have exported worldwidesince the year 2004.
Q2: How do you control the quality ?
A2: We have perfect QC system (IQC, IPQC, FQC, OQC team), professional product engineers and continuous improvement system.
Q3: Is there any discount for bulk order?
A3: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q4: How to choose LED light source ?
A4: Lumens(LM), light efficency(LM/W), life span((hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.
Q5. How to proceed an order for led light?
A5: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
PACKAGE:
Single package size: 16.0*23.0cm
Package Type: 1000pcs / bag, 40bags / carton & According To The Request.
Inner packaging: Anti-static Bag Packaging
Outer packaging: Standard export carton packing.
DELIVERY TIME:
1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
