0805 Red Yellow Green Tri Color LED 0.06W 120deg 2.0x1.2mm RYG LED SMD
0805 Red Yellow Green Tri Color LED 0.06W 120deg 2.0*1.2*0.8mm RYG LED SMD
0805 Tri Color LED 0.06W Red Yellow Green 120deg 2.0*1.2*0.8mm RYG LED SMD
Absolute Maximum rating of 2012 Tri color Chip SMD LED:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Forward current | If | 30 | mA |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 60 | mW |
| Operationg temperature | Top | -40∼+85 | °C |
| ESD(Human-body mode | -- | 2 | KV |
| Storage temperature | Tstg | -40∼+85 | °C |
| Peak pulsing current(1/8 duty f=1kHz | lfP | 125 | mA |
Electrical characteristics of 2012 Tri color Chip SMD LED:(Ta=25°C)
| Parameter | Test condition | Symbol | Value | Unit | ||
| Min | Typ | Max | ||||
| Dominant wavelength | If=20mA | λd | 620 | --- | 630 | nm |
| 585 | --- | 595 | ||||
| 520 | --- | 530 | ||||
| Forward voltage | If=20mA | Vf | 1.8 | --- | 2.4 | v |
| 1.8 | --- | 2.4 | ||||
| 2.8 | --- | 3.4 | ||||
| Luminous intensity | If=20mA | Iv | 160 | --- | 200 | mcd |
| 100 | --- | 125 | ||||
| 500 | --- | 630 | ||||
| Viewing angle at 50% lv | If=10mA | 2θ1/2 | 120 | Deg | ||
| Resverse current | Vr=5v | Ir | 10 | mA | ||

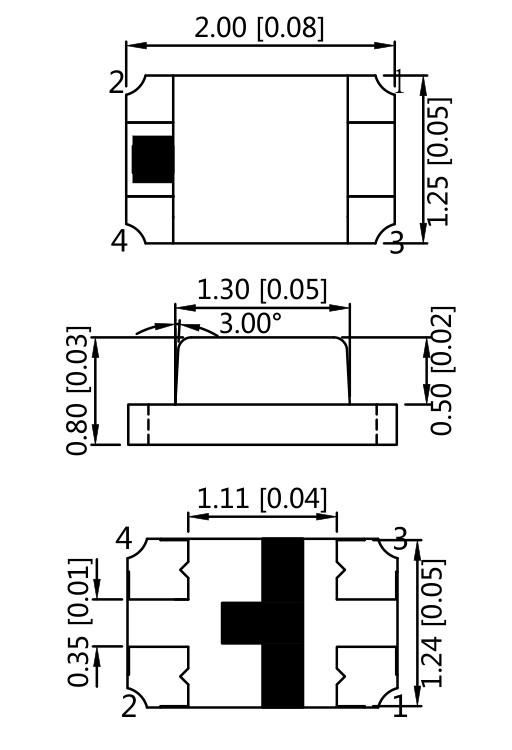

Outline dimension of 2012 Tri color Chip SMD LED:
Feature of 2012 Tri color Chip SMD LED:
1. 2.0mm×1.2mm×0.8mm chip LED
2. Low power consumption, high light
3. RoHS compliant
4. Suitable for SMT mounting
Application of 2012 Tri color Chip SMD LED:
1. Lights and backlights for communication products mobile phones and tablets
2. Smart home
3. Home appliances indicator lamp
4. Digital LED lamp
5. Netcom product indicator lights
