China Car Commercial Electric Vehicle Charging Stations DC CCS Type 2 Type 1 160KW 80KW for sale

Car Commercial Electric Vehicle Charging Stations DC CCS Type 2 Type 1 160KW 80KW

Price Negotiable

Price: negotiation

MOQ: 20

Delivery Time: 8-10days

Brand: Evcome

Product Description

Comercial DC EV Charger Electric Vehicle Fast Charging Pile CCS type 2/type 1 Charging Station60KW 80KW

Power Suppply	3P+N+PE
Rated Voltage	400VAC±15%(50/60Hz)
THDi	≤5%
Efficiency	≥95%
Power Factor	≥0.98
Connector Type	CCS Combo 2
Output Voltage	150-1000V
Maximum Output Current	250A
Output Power Rating	120kW(Max)/180kW(Max)
Output Voltage Accuracy	≤0.5%
Output Current Accuracy	≤±5%
HMI	7-Inch touch screen
Charging Method	RFID Card
Cable Length	Cellular modem:GSM/4G (optional) LAN:10/100 Base-T Ethernet
Communication Protocol	OCPP 1.6J
Operating Noise Level	≤60dBA
Ingress Protection(IP/IK rating)	IP54/IK08
Power Meter	Accuracy Class 1 energy meter
Enclosure	Galvanized steel
Product Dimension	700 x 550 x 1800mm(W x D x H)
Package Dimension	950 x 720 x 1950mm(W x D x H)
Protection	Over Current,Under Voltage,Over Voltage,Short Circuit,Residual Current, Surge Protection,Over Temperature,Ground Protection
Certification Standard	EN/IEC 61851-1,EN/IEC 61851-23,EN/IEC 61851-24,EN/IEC62196-1,EN/IEC62196-3
Operating Temperature	-35℃ to +50℃
Storage Temperature	–40°C to +75°C
Maximum Installation Height	≤2000m
Operating Humidity	5%–95% RH

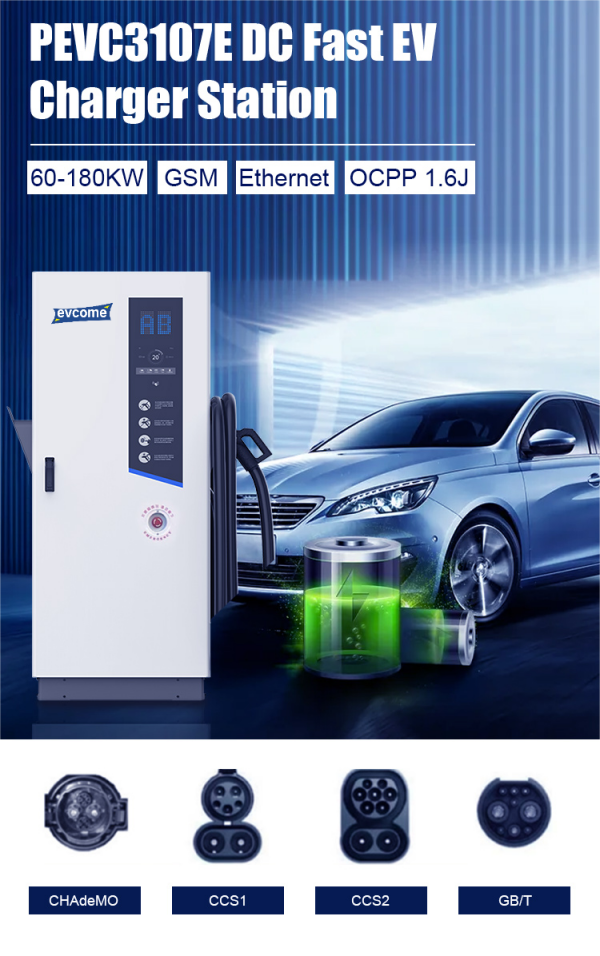

DC Fast EV Charging Station is a basic DC Fast EV charger.

It is easy to install, stable in performance, and provides complete protection function.

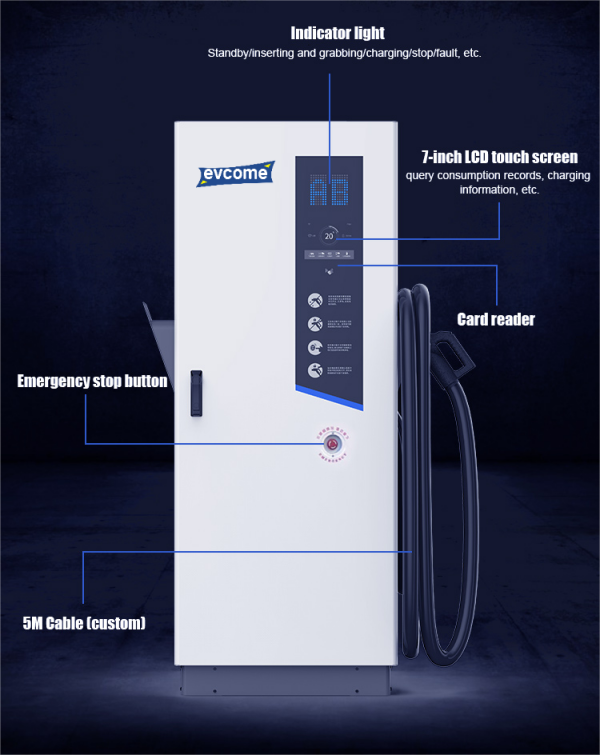

The LCD display can show the charging status, user friendly.

It supports GSM/3G/4G/Ethernet communication with party system for remote monitoring/maintain/upgrade.

The charger can optionally equip with a column support installed outdoors.

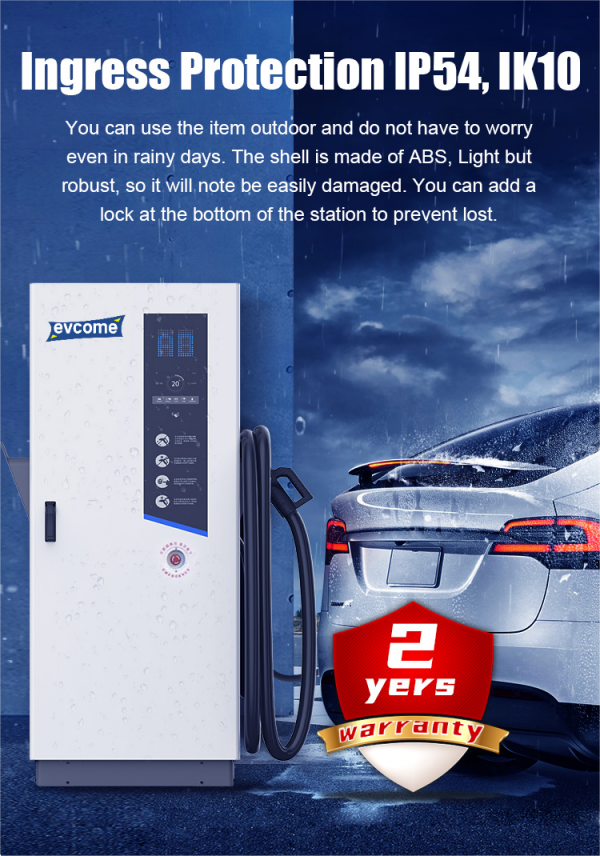

IP54, Strong and Durable:

Support outdoor harsh environment,waterproof and dust-proof. Rugged shell which could resist the rolling and crash of the car.

Protection GRADE IP54,IK10

DC chargers have internal converters. This means that it can directly supply power to the car's battery without the need for an on-board charger. The DC charger is larger and faster, which is an exciting breakthrough in the field of electric vehicles.
