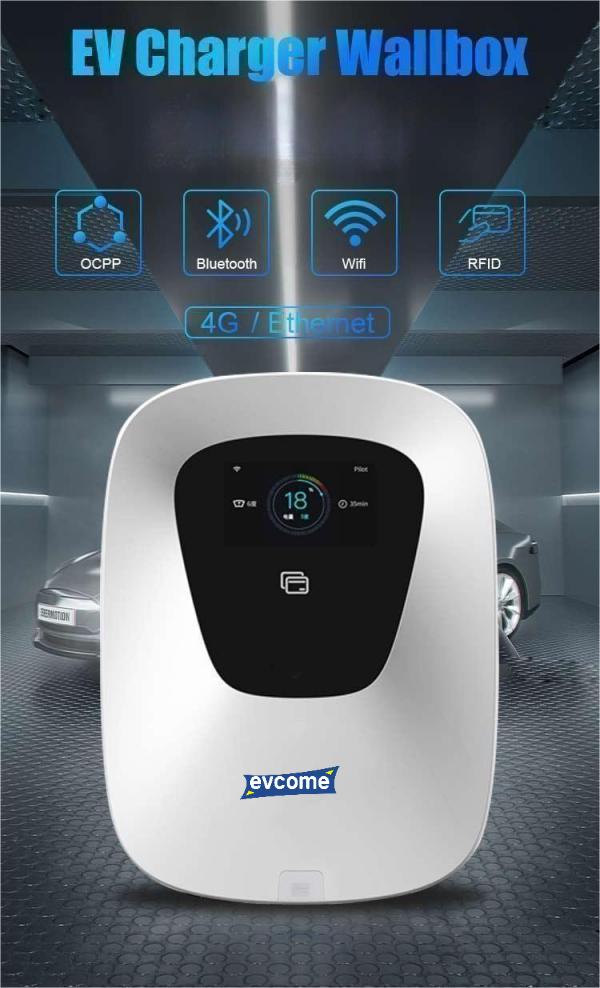

Three 3 Phase 22kw Ev Charger Wall Mount Home Ac Gbt Type 1 Type 2 Car With Rfid Card
3phase evchargers Wall Mounted Single Phase 11Kw Ac Gbt Type 1 Type 2 Ev Charger Charging Station With Rfid Card
AC EVCHARGER is a charging pile with strict certification requirements, which has passed TUV and CE certification.
1. Wonderful and Modern design
The appearance design has modern sense, simple and practical,perfect integration.Function modular design, flexible to create exclusive configuration for different needs of users
2. Easy to Operate
Different charging methods can be used according to different scenarios: charging by inserting,starting and stopping by swiping, mobile phone blue APP,in order to prevent others from using your charger, friendly human-computer interaction interface,simple operation process,so that every chargeis full of confidence.
3. Safety and Durable
DC6mA+Type A AC 30mA protection. Excellent waterproofing level up to IP55. Flame retardant, mositure-proof, mildew proof, salt spray. It can adapt to different climates around the world,making your charger more durable.
4. Innovativeness
The installation method is extremely simple,blind installation positioning. Low maintenance. Automatic fault diagnosis .Easy to Maintain, Front door operation and maintenance.
5. Reliable
TUV and CE certification, equipment has passed strict testing and inspection, recongized by international organizations. In line with a number of global standards, reliable quality is trust-worthy.MID certified electricity meter.
| Product Name | 3 Phase evcharger wall mounted |
| Rated Voltage | 400VAC±10%(50Hz±5Hz) |
| Output voltage | 400VAC±20% |
| Output current | 16A/32A |
| Output power | 11KW/22KW |
| Electric energy measurement | Accuracy Class 1 energy meter |

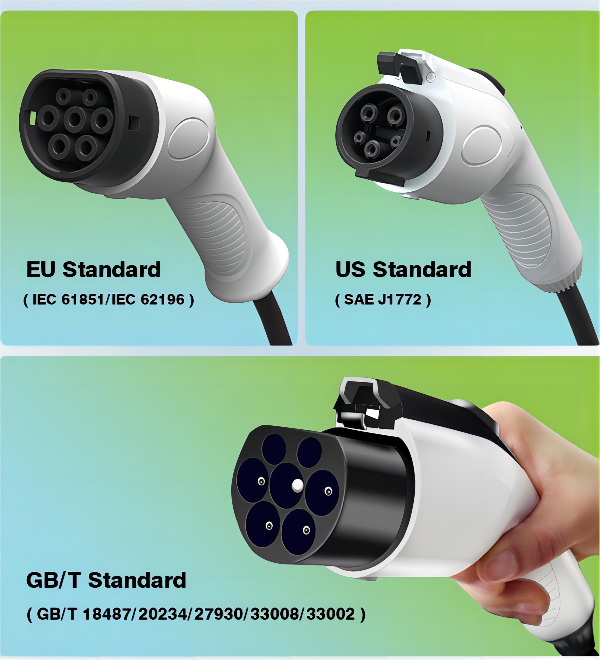

| Connector Type | Type 1, Type 2, GB/T |
| Cable length | 5m (Custom) |

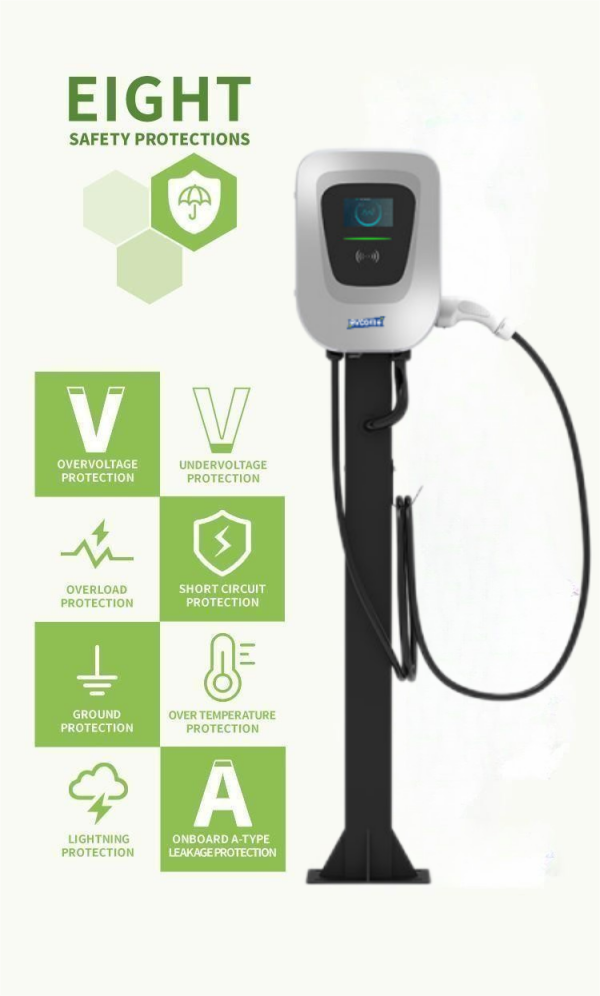

| Protection functions | Over voltage/under voltage protection, over current/short circuit protection, over/under temperature protection, lightning protection, emergency stop protection, RCD Type A and DC 6mA RCD leakage protection. |
| Communication | Ethernet/WIFI/4G LTE |
| Protocol | OCPP-1.6 (JSON) |
| HMI | 4.3 inch LCD |
| Insulation resistance | 1000VDC≥10MΩ |
| Dielectric Strength | AC2500≤10mA(input/output to ground) |
| Connector type | IEC 62196-2 |
| Standards | IEC 61851-1, IEC 62196-1/2 |
| Ingress Protection(IP/IK rating) | IP55 |
| Installation method | wall mount/Floor standing |
| Shell material | (PC+ABS)-Blend |
| Product Dimension | 300mm*420mm*153.8mm |
| Operating Temperature | -30℃-60℃ |
| Storage Temperature | -40℃-80℃ |
| Altitude | ≤2000m |
| Operating Humidity | ≤95%, non-condensing |

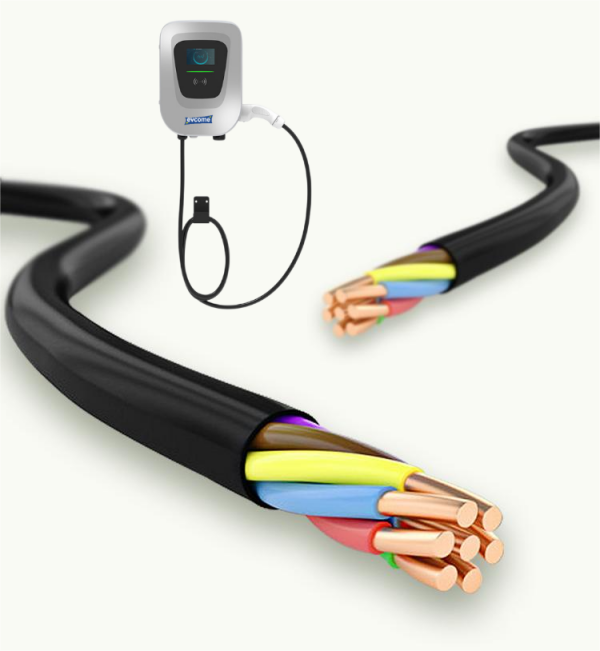

Cable with TPU material can well protect the internal harness from normal operation under repeated bending conditions, and ensure longer service life of the equipment. Even when used at -30 ℃, the elasticity and flexibility of the cable can still be maintained. Therefore, it will not be stiff and difficult to use in winter.
Our products have passed the relevant certification of European standards to ensure that the products can be sold and used with confidence.
