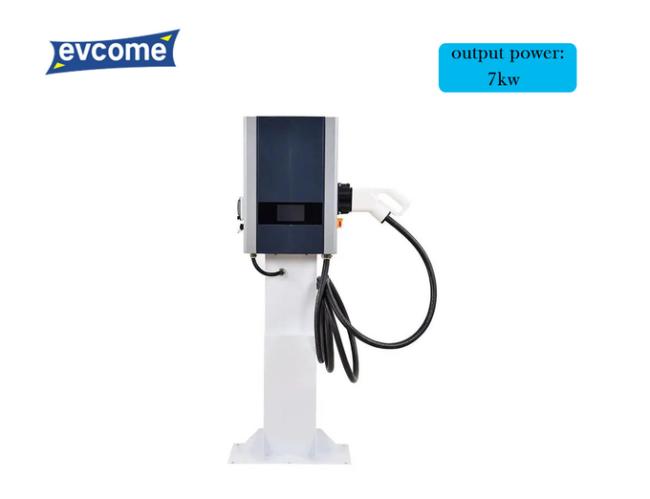

Fast Charging Station 7kw is a high-performance charging system for electric vehicles, designed to provide optimal charging speed and compatibility. Here are some features and applications of the Fast Charging Station 7kw:

Features:

High Power Output: The 7kw charging station supports fast charging for electric vehicles with a high power output of up to 7kw. RFID Authentication: The charging station features an RFID authentication system that enables users to securely access the charging station and start charging their electric vehicles.



Applications:

Residential Charging: The Fast Charging Station 7kw is an ideal charging solution for electric vehicle owners who want to charge their vehicles at home, efficiently and quickly. Workplace Charging: Employers can install the charging station at their workplace, providing employees with a convenient and reliable charging solution for their electric cars. Public Charging: The Fast Charging Station 7kw can be installed at public charging points, enabling electric vehicle users to quickly and efficiently charge their cars while on the go.

• LED Indicators: The charging station has LED indicators that provide real-time information about the charging progress and status, making it easy for users to monitor and manage their charging process.
• Weatherproof: The charging station is weatherproof, ensuring safe and reliable charging even in harsh weather conditions.





Production Parameters
Model		7KW
AC Input	Input Rating	90-265V
	AC Input Connection	L2+L3+PE (NEMA,JPS)
	Max. Input Current	32A
	Frequency	50 /60 Hz
	Power Factor	>0.99@full load
	Efficiency	95%
DC Output	Output Voltage Range	200-750Vdc
	Max. Output Power	7KW
	Max. Output Current	20A
User Interface	TFT-LCD Touch Panel	Yes(swiping card without TFT-LCD Touch Panel)
	Push Buttons	Yes
	Interface	Yes
Packing	Dimension	W:548 × 378× 160mm U:1500×520× 250mm
	Weight	Wall:22KG Upright:25KG
Environmental	Operating Temperature	-40~85℃,25℃(TYPE)
	Humidity	5%-90% RH, non-condens,ng
	Altitude	2000m
	IP Level	IP54
Mechanical	Cable Length	5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable
	Regulation	EN61851-1
Regulation	Certification	CE , ROHS
	Charging protocol	CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24
