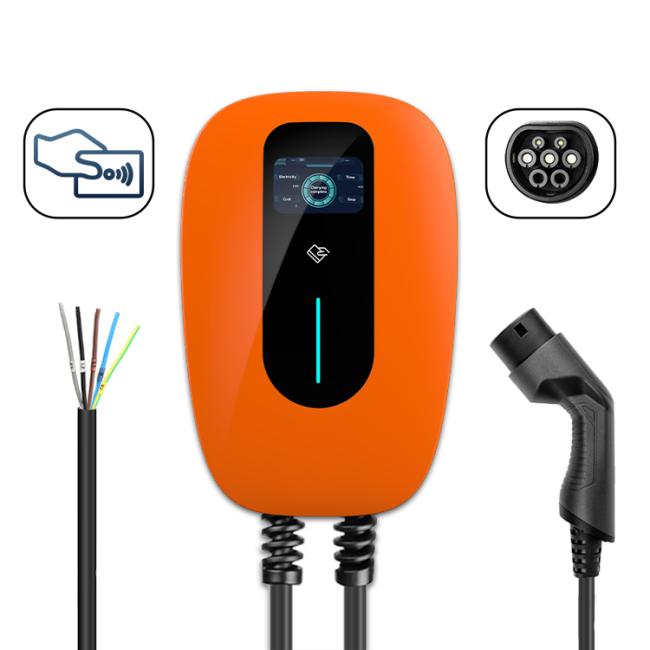

Wireless Outdoor EV Charging Station RFID Card Mode, 200V WIFI Electric Car Charger
IP65 Waterproof Smart EV Charger 7kw 32A With Wireless Function
Quick Detail:
· Model Number: GS7-AC-B01
· Rated Voltage:200V AC
· Rated Current: 32A
· Rated Output Power: 7kw
· Charging Port: Type 2 Cable
· Cable Length: 3.5M/Customized
· Communication: 3G/4G/5G, WIFI or Bluetooth Optional
· Start Mode: Plug and Play/RFID card/App
· Function: APP Control, screen display, Voltage Monitoring
Product Features:
1. Water proof level IP65: you can use the item outdoor and do not have to worry even inrainy days.
The shell is made of ABS, light but robust, so it will not be easily damaged. You can add a lock at the bottom of the station to prevent lost
2. 4.3inch HD highlight LCD screen Custom language Shows live charging current, voltage,kW.h,time,etotal meter value
3. Supports APP Control:
* Remote Control by APP
* Charging History Record
* Charging Time Seting
Specifications:
| Product Name | EV Charging Station (WallBox) | |||
| Data | Model | GS7-AC-BO1 | GS11-AC-BO1 | GS22-AC-BO1 |
| Input | Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | 200~220V AC | 380~400V AC | 380~400V AC | |
| Rated Current | 32A | 16A | 32A | |
| Output | Output Voltage | 200~220V AC | 380~400V AC | 380~400V AC |
| Output Current | 32A | 16A | 32A | |
| Rated Power | 7KW | 11KW | 22KW | |
| Package | Unit Size | 340*285*147mm | ||
| Package Size | 570*350*310mm | 570*350*310mm | 570*350*310mm | |
| Net Weight | 3.8KGS | 4.5KGS | 4.5KGS | |
| Gross Weight | 6.5KGS | 6.5KGS | 6.5KGS | |
| Communication | WIFI | Optional | ||
| 3G/4G/5G | Optional | |||
| OCPP | OCPP 1.6 Json (OCPP 2.0 Optional) | |||
| User Interface | Charging Port | Type 1/ Type 2 | ||
| Cable Length | 3.5M or customization length | |||
| LED Indicator | White/Green/Black/Blue/Orange/Purple/Customized | |||
| Start Mode | Plug&Play / RFID Card / APP | |||
| Emergency Stop | YES | |||
| Environment | Installation | Wall-mounted Pole Mounted | ||
| Work Temperature | -25℃-+50℃ | |||
| Work Humidity | 5%-95% | |||
| Work Altitude | <2000M | |||
Our Company:

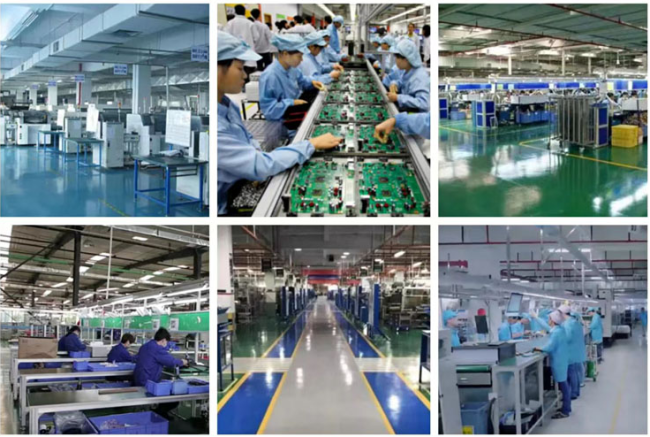

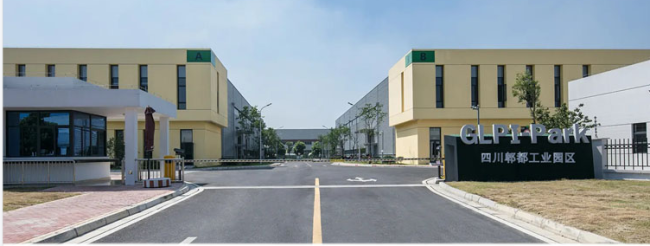

Sichuan Tianfu Xiongzhou Intelligent Engineering Co., Ltd. was founded in 2016, locates in Chengdu. We dedicate in providing package technique and products solution for intelligent efficient and safe application of energy resources, and for energy saving and emission reduction. Through continuous technical innovation and marketing accumulation, We grown to be a professional supplier for EV charging facility and solutions.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2: What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us.
We will provide specific solutions for your requirements.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Note:
LCD Screen/WIFI/Bluetooth/4G/Ethernet and OCPP are optional functions,all the information is for reference only,
it doesn't mean the device you get have all such functions.
