32A 22kw Fast EV Charging Station , Electric Vehicle EV Charger Leakage Protection
Quick Detail:
· Model Number: GS22-AC-B01
· Rated Current: 32A
· Rated Voltage:400V AC
· Rated Output Power: 22kw
· Start Mode: Plug and Play/RFID card/App
· Communication: 3G/4G/5G, WIFI or Bluetooth Optional
· Function: APP Control, screen display, Voltage Monitoring
Features:
This EV charger is designed with modern outlook. And there’s intelligent control system:
wireless communication (Wi-Fi/Bluetooth), Ethernet/4G optional. Also intelligent operation by App and cashless payment.
In addition, there are flexible options for this wallbox EV charger.
First, with universal type 2 socket,type 1/type 2 charging cable optional;
Second, start mode, optional with app operation or RFID card or plug and play;
Third, wall-mount or floor-stand installation optional.
Specifications:
| Product Name | EV Charging Station (WallBox) | |||
| Data | Model | GS7-AC-BO1 | GS11-AC-BO1 | GS22-AC-BO1 |
| Input | Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | 200~220V AC | 380~400V AC | 380~400V AC | |
| Rated Current | 32A | 16A | 32A | |
| Output | Output Voltage | 200~220V AC | 380~400V AC | 380~400V AC |
| Output Current | 32A | 16A | 32A | |
| Rated Power | 7KW | 11KW | 22KW | |
| Package | Unit Size | 340*285*147mm | ||
| Package Size | 570*350*310mm | 570*350*310mm | 570*350*310mm | |
| Net Weight | 3.8KGS | 4.5KGS | 4.5KGS | |
| Gross Weight | 6.5KGS | 6.5KGS | 6.5KGS | |
| Communication | WIFI | Optional | ||
| 3G/4G/5G | Optional | |||
| OCPP | OCPP 1.6 Json (OCPP 2.0 Optional) | |||
| User Interface | Charging Port | Type 1/ Type 2 | ||
| Cable Length | 3.5M or customization length | |||
| LED Indicator | White/Green/Black/Blue/Orange/Purple/Customized | |||
| Start Mode | Plug&Play / RFID Card / APP | |||
| Emergency Stop | YES | |||
| Environment | Installation | Wall-mounted Pole Mounted | ||
| Work Temperature | -25℃-+50℃ | |||
| Work Humidity | 5%-95% | |||
| Work Altitude | <2000M | |||

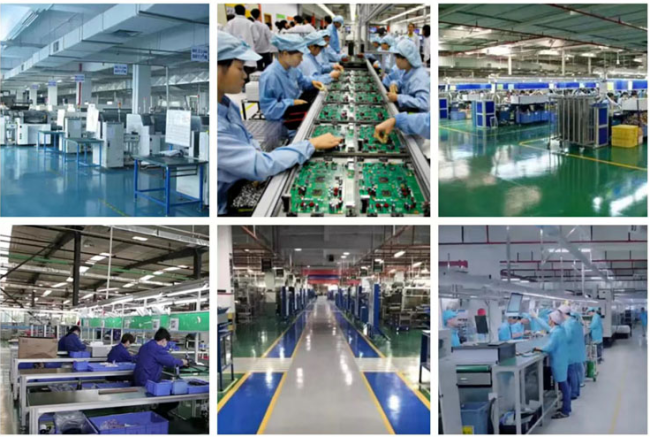

Our Company:
Sichuan Tianfu Xiongzhou Group was founded in 2010, located in Xincheng District, Jianyang City, Sichuan Province.
We are committed to the R&D and sales of IT intelligent products.
In 2016, Sichuan Tianfu Xiongzhou Intelligent Engineering Co., LTD was established, we focus on the R&D and sales of
intelligent charging piles, plugs, connectors and other auto parts. We can design and manufacture AC charging piles in
accordance with China (GB)/European Union (CE)/United States (UL) standards and software platforms equipped with
OCPP 1.6 protocol according to customer requirements.
FAQ
Q1. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q2: How do you make our business long-term and good relationship?
A1:We keep good quality and competitive price to ensure our customers benefit ;
A2:We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
