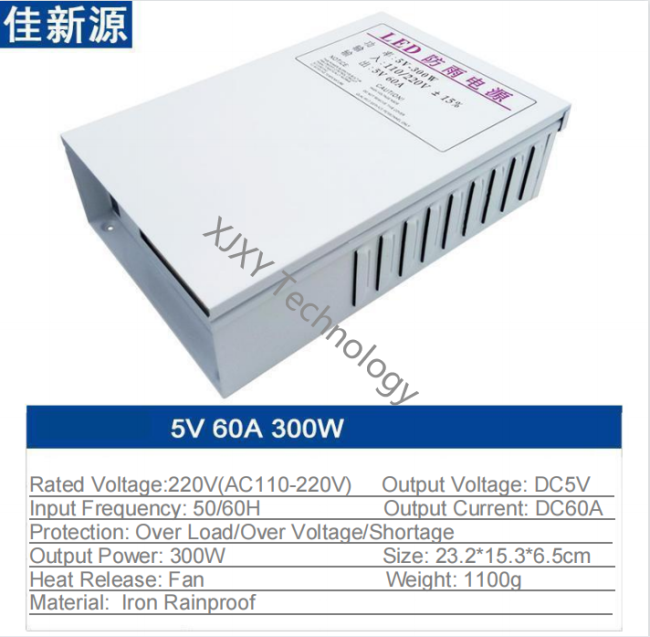

300W 5V 60 Amp LED Strip Light Power Supply Rainproof IP54 220V AC
Rainproof LED Driver 5V 300W 60A Engineer LED Light Strips Light Box Power Supply
Quick Detail:
- Engineering application Rainproof type iron housing shell
- AC/DC switching 5V 300W 60A single-switch LED driver
- AC input voltage: 220V
- 1600V High voltage test, full loading test and old aging test
- Constant voltage driver apply for LED light strip, light box etc.
- IP54 grade
- 3 Years Warranty
- Unit Size: 23.2*15.3*6.5CM
- Unit Weight:
Description:
All these products adopt PWM high-frequency pulse width modulation technology, mature standardized production, strict 100% load-carrying aging, high and low voltage impact experiments and complete test records for development & production of LED driver through strictly quality control system and highly responsible attitude, thus have a good quality feedback during application.
Rainproof IP54 led drivers mainly have 5V, 12V, 24V series, from 150W, 200W, 250W,300W, 350W,400W,500W,1000W etc. they are mainly used for LED light strip, light box, module, signboard light, line light, wall wash light, underground light, protective tube and so on.
Specifications:
| Series | Name | LED Driver |
| 1 | Basic info | 5V 60A 300W |
| 2 | Model | S-300W-5V-R( rainproof) |
| 3 | Material | Aluminum |
| 4 | Efficiency | 95% |
| 5 | Rated input | 220VAC 50/60Hz |
| 6 | Output Voltage | DC5V±5% |
| 7 | Output Current | 60A |
| 8 | Output Power | 300W |
| 9 | Grade | IP54 |
| 10 | Protect |
Shortage/Overload/Over voltage/Over current |
| 13 | Dimension | 23.2*15.3*6.5CM |
| 14 | Weight |
Rainproof IP54 LED drivers related models list:
| Model | Input Voltage | Output Value | Size/cm |
| S-200W-5V-R | 220V | 5V 40A 200W | 19.0*11.5*4.5 |
| S-300W-5V-R | 220V | 5V 60A 300W | 23.2*15.3*6.5 |
| S-350W-5V-R | 220V | 5V 70A 350W | 23.2*15.3*6.5 |
| S-150W-12V-R | 220V | 12V 12.5A 150W | 15.2*8.7*4.3 |
| S-200W-12V-R | 220V | 12V 16.67A 200W | 15.2*8.7*4.3 |
| S-250W-12V-R | 220V | 12V 20.8A 250W | 19.0*11.5*4.5 |
| S-300W-12V-R | 220V | 12V 25A 300W | 19.0*11.5*4.5 |
| S-400W-12V-R | 220V | 12V 33.3A 400W | 19.0*11.5*4.5 |
| S-500W-12V-R | 220V | 12V 41.67A 500W | 22*11.5*6.0 |
| S-1000W-12V-R- | 220V | 12V 83.3A 1000W | 29.5*14.6*8.2 |
| S-400W-24V-R | 220V | 24V 16.67A 700W | 19.0*11.5*4.5 |
| S-500W-24V-R | 220V | 24V 20.83A 500W | 22*11.5*6.0 |
| S-1000W-24V-R | 220V | 24V 41A 1000W | 29.5*14.6*8.2 |
Applications:
Widely used in LED Lighting, LED display, LED strips, LED advertisement screen, LED sign, LED night light, LED lamp house, LED decoration, LED wall light, LED street light , LED wall light, LED backlight, LED tube, offices , hospital , schools , factories , plants, shopping malls, supermarkets, kitchen, fair cabinet and so on.
FAQ
1. How many kinds of led drivers you produce?
A: There are many kinds of led drivers: indoor type, rain proof type, waterproof type, ultra thin type, high power type.
2. Do you have CE, ETL approval?
A: Most of products have CE approval, some products have ETL approval.
3. Can I place a sample order?
A: Yes, sample order is available after full test and before delivery. If big quantity, it maybe need 12-18 working days.
4. What about the lead time?
A: 3-5 days for Sample, 8-12 working days for mass production.
5. Which tests do you carry out in your factory?
A: We usually do overload test, 1600V high voltage test and 100% old age test.
6. What is MOQ for led driver?
A: MOQ usually is 100-200pcs except sample order.
7. How do you ship the goods and how long does it take to arrive?
A: We ship by sea, by railway or by sea. If samples, always by express such as FEDEX or DHL etc. It all depends.
8. How about the payment terms?
A: T/T for sample order and small quantity order and L/C for large quantity order.
9. How to start an order with each other?
A: Know your true requirements or application fully, quote based on your requirements and our suggestions, confirms the samples and places deposit for formal order and we arrange the mass production.
