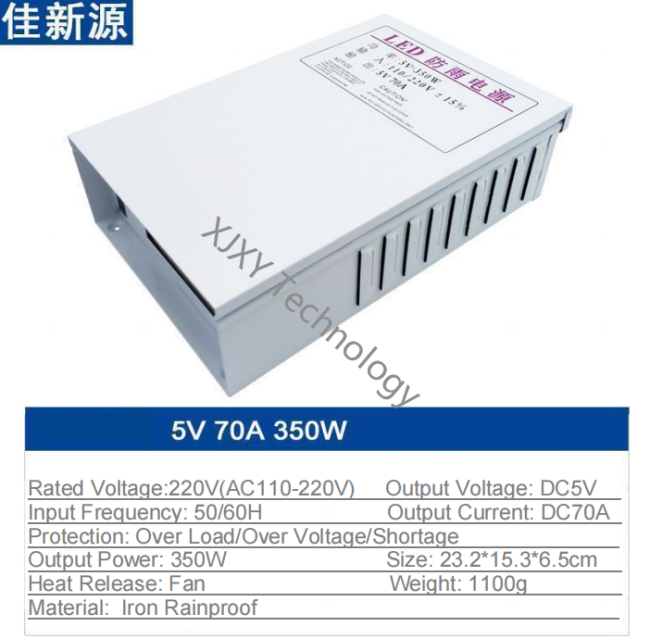

5V 350W 70A Iron LED Strip Light Power Supply Rainproof LED Tube Light Box
Rainproof LED Driver 5V 350W 70A Engineer LED Tube Light Box Strips Power Supply
Quick Detail:
- Engineering application Rainproof type iron housing shell
- AC/DC switching 5V 350W 70A single-switch LED driver
- AC input voltage: 220V
- 1600V High voltage test, full loading test and old aging test
- Constant voltage driver apply for LED light strip, light box etc.
- IP54 grade
- 3 Years Warranty
- Unit Size: 23.2*15.3*6.5CM
- Unit Weight:
Description:
All these products adopt PWM high-frequency pulse width modulation technology, mature standardized production, strict 100% load-carrying aging, high and low voltage impact experiments and complete test records for development & production of LED driver through strictly quality control system and highly responsible attitude, thus have a good quality feedback during application.
Rainproof IP54 led drivers mainly have 5V, 12V, 24V series, from 150W, 200W, 250W,300W, 350W,400W,500W,1000W etc. they are mainly used for LED light strip, light box, module, signboard light, line light, wall wash light, underground light, protective tube and so on.
Specifications:
| Series | Name | LED Driver |
| 1 | Basic info | 5V 70A 350W |
| 2 | Model | S-350W-5V-R( rainproof) |
| 3 | Material | Aluminum |
| 4 | Efficiency | 95% |
| 5 | Rated input | 220VAC 50/60Hz |
| 6 | Output Voltage | DC5V±5% |
| 7 | Output Current | 70A |
| 8 | Output Power | 350W |
| 9 | Grade | IP54 |
| 10 | Protect |
Shortage/Overload/Over voltage/Over current |
| 13 | Dimension | 23.2*15.3*6.5CM |
| 14 | Weight |
Rainproof IP54 LED drivers related models list:
| Model | Input Voltage | Output Value | Size/cm |
| S-200W-5V-R | 220V | 5V 40A 200W | 19.0*11.5*4.5 |
| S-300W-5V-R | 220V | 5V 60A 300W | 23.2*15.3*6.5 |
| S-350W-5V-R | 220V | 5V 70A 350W | 23.2*15.3*6.5 |
| S-150W-12V-R | 220V | 12V 12.5A 150W | 15.2*8.7*4.3 |
| S-200W-12V-R | 220V | 12V 16.67A 200W | 15.2*8.7*4.3 |
| S-250W-12V-R | 220V | 12V 20.8A 250W | 19.0*11.5*4.5 |
| S-300W-12V-R | 220V | 12V 25A 300W | 19.0*11.5*4.5 |
| S-400W-12V-R | 220V | 12V 33.3A 400W | 19.0*11.5*4.5 |
| S-500W-12V-R | 220V | 12V 41.67A 500W | 22*11.5*6.0 |
| S-1000W-12V-R- | 220V | 12V 83.3A 1000W | 29.5*14.6*8.2 |
| S-400W-24V-R | 220V | 24V 16.67A 700W | 19.0*11.5*4.5 |
| S-500W-24V-R | 220V | 24V 20.83A 500W | 22*11.5*6.0 |
| S-1000W-24V-R | 220V | 24V 41A 1000W | 29.5*14.6*8.2 |
Applications:

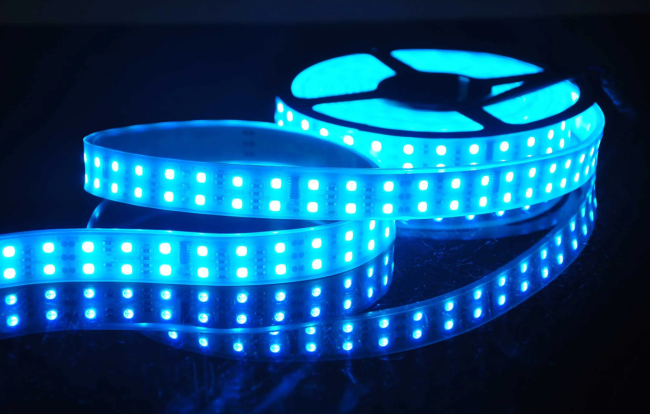

Widely used in LED Lighting, LED display, LED strips, LED advertisement screen, LED sign, LED night light, LED lamp house, LED decoration, LED wall light, LED street light , LED wall light, LED backlight, LED tube, offices , hospital , schools , factories , plants, shopping malls, supermarkets, kitchen, fair cabinet and so on.
