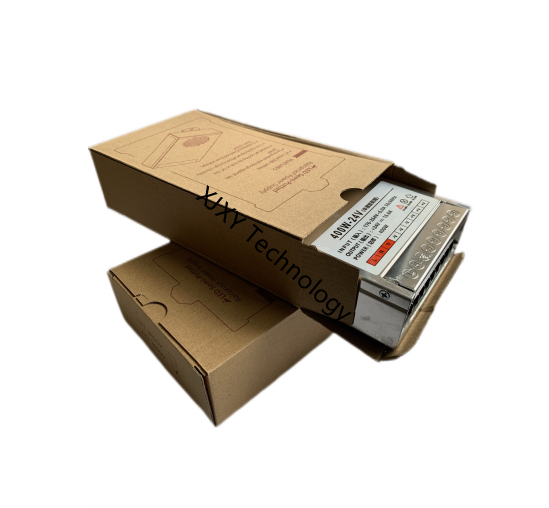

Stainless Steel Rainproof LED Strip Light Power Supply 24V 400W IP54 Signboard
Steel IP54 LED Driver 24V 400W Signboard Strips Light Box Module LED Transformer
Quick Detail:
- Rainproof type steel housing shell with fan hot release
- AC/DC switching 24V 400W 16.7A single-switch LED driver
- AC input voltage: 220V
- 1600V High voltage test, full loading test and old aging test

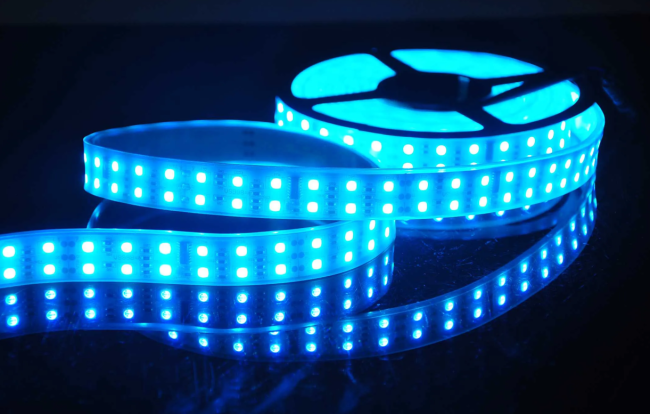

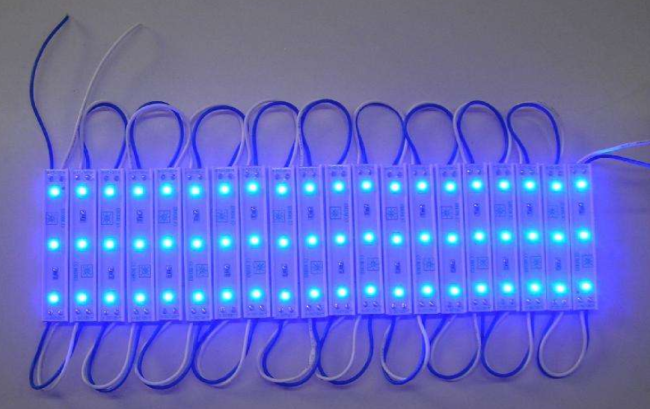

- Constant voltage driver apply for LED light strip, light box, LED module, signboard light, line light, wall wash light, underground light, protective tube and so on
- IP54 grade
- 3 Years Warranty
- Unit Size: 18.4*11.8*5.0CM
- Unit Weight:
Specifications:
| Series | Name | LED Driver |
| 1 | Basic info | 24V 16.7A 400W |
| 2 | Model | S-400W-24V-R( rainproof) |
| 3 | Material | stainless steel |
| 4 | Efficiency | 95% |
| 5 | Rated input | 220VAC 50/60Hz |
| 6 | Output Voltage | DC24V±5% |
| 7 | Output Current | 16.7A |
| 8 | Output Power | 400W |
| 9 | Grade | IP54 |
| 10 | Protect |
Shortage/Overload/Over voltage/Over current |
| 13 | Dimension | 18.4x11.8x5.0CM |
| 14 | Weight |
Notices:
1. Input voltage should be within the specified voltage range (for examples: input voltage 220VAC).
2. Prohibited to be used in the high temperature environment, power port is the thermal vents, wind 50CM range, please do not place other objects, make sure that the power should have good thermal dissipation space environment.
Rainproof IP54 LED drivers related models list:
| Model | Input Voltage | Output Value | Size/cm |
| S-200W-5V-R | 220V | 5V 40A 200W | 19.0*11.5*4.5 |
| S-300W-5V-R | 220V | 5V 60A 300W | 23.2*15.3*6.5 |
| S-350W-5V-R | 220V | 5V 70A 350W | 23.2*15.3*6.5 |
| S-150W-12V-R | 220V | 12V 12.5A 150W | 15.2*8.7*4.3 |
| S-200W-12V-R | 220V | 12V 16.67A 200W | 15.2*8.7*4.3 |
| S-250W-12V-R | 220V | 12V 20.8A 250W | 19.0*11.5*4.5 |
| S-300W-12V-R | 220V | 12V 25A 300W | 19.0*11.5*4.5 |
| S-400W-12V-R | 220V | 12V 33.3A 400W | 19.0*11.5*4.5 |
| S-500W-12V-R | 220V | 12V 41.67A 500W | 22*11.5*6.0 |
| S-1000W-12V-R- | 220V | 12V 83.3A 1000W | 29.5*14.6*8.2 |
| S-400W-24V-R | 220V | 24V 16.67A 700W | 19.0*11.5*4.5 |
| S-500W-24V-R | 220V | 24V 20.83A 500W | 22*11.5*6.0 |
| S-1000W-24V-R | 220V | 24V 41A 1000W | 29.5*14.6*8.2 |
Applications:
Widely used in LED Lighting, LED display, LED strips, LED advertisement screen, LED sign, LED night light, LED lamp house, LED decoration, LED wall light, LED street light , LED wall light, LED backlight, LED tube, offices , hospital , schools , factories , plants, shopping malls, supermarkets, kitchen, fair cabinet and so on.
------LED Switch Power Supply Instruction-----------
Installation method:
1. Strictly in accordance with the position indicated by the output terminals of the power supply. It must be firm, check the output line and prohibited to be reversed (input "220VAC" main line, output "+" loaded for positive cathode, output "-" load for negative cathode).
2. Before power, check that the line voltage is compatible with the operating voltage with multimeter (voltage: 220VAC) recognized before it can be closed.
3. Power firm installed vertically (vertically in a place easy to wire the power supply, cover to cover, to be water proof)
Usage instruction
1. Under normal conditions of use, it will be one year warranty based on date of flag, product fails during the warranty period, and test by the company are quality problems , which means free warranty.
2. The following conditions are not within the scope of warranty
(1) Not follow the specification required and damaged.
(2) Users remove internal components which caused damaged unit.
(3) Water deep into the box;
(4) The serious damage or deformation of shape;
(5) The body dates being erased or altered;
(6) Terminal block burned;
3. Maximum responsibility for defectives products is a replacement of the same model and the same number of products
