Mechanical Electric Pneumatic Rotary Union Joint 1000RPM
Price:
Negotiation
MOQ:
1
Delivery Time:
Negotiable
Brand:
senring
Product Description
3008006 Series G1/8 8 Channels Pneumatic & Electric Rotary Union
Channel Size G1/8",Support 6~8mm pipes,Can be Combine To Transfer 6~56 Circuits Electrical Power/Signal
Description of rotary union
SENRING 3008006 series,support G1/8 port for 6~8mm pipes,can transfer various mediums including compressed air,steam,vacuum,negative pressure when 360° rotating, Advantages : compact size, light weight , low torque.
Technical Specification of 3008006 series slip ring
| Channels(Gas) | 8 channels |
| Pipe Size | 6~8mm pipe, G1/8" Port |
| Mechanical Data | |
| spec. | data |
| Operating life | 10millions for ref(depends on working conditions) |
| Max. Operating Speed | 250RPM continously, 1000RPM intermittently |
| Working temperature | -30°C~80°C |
| Work humidity | 0~85% RH |
| Contact Materia | Precious Metal |
| Housing Material | aluminum alloy |
| IP Grade | IP51 |
| Max. Operating Pressure |
Positive Pressure 1Mpa, Vacuum -90kPa | |
| torque | <0.8N.m | |
| Electrical Data | ||
| spec. | data | |
| Power | Signal | |
| Voltage range | 0~440VAC/VDC | 0~440VAC/VDC |
| Insulation resistance | <500MΩ/300VDC | <500MΩ/300VDC |
| Lead wire size | AWG17# Silver-plated teflon wire | AWG22# Silver-plated teflon wire |
| Lead wire length | standard 300mm(can be customized) | |
| Insulation resistance | 500VAC@50Hz,6s | |
| Electrical noise | <0.01Ω | |

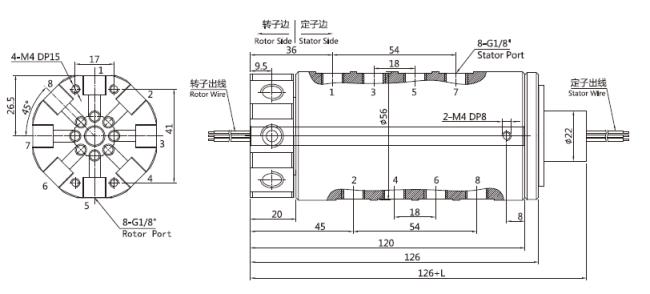

- Drawing
![]()
![]()
- Features
- 1.Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo 2.motor signal,industrial bus slip rings...etc;
- 3.360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc;
- 4.Max. Pressure(s):1Mpa (vacuum: -1.5kPa, higher Pressure can be customized)；
- 5.Support 8 G1/8" port for 6~8mm pipes;
- Application:
1. Automation equipment
2. Robotics
3. Medical equipments
4. Wind turbine generator -
5.Variable-speed motor
- FAQ:
Q: How to get in touch with us?
A: You can click "Contact Now"above,
- Q: How to pay?
A: Normally we advise accept T/T, accept credit card, Paypal also.
- Q: Can you make by customer's design?
A: Yes, we can.Please email your design details to us, we will make as your requirement.
- Q: What's the delivery time?
A: Normally within 15 days, also depends on your order quantity.
