1 Circuit Mercury RF Slip Ring 1 Circuits 250A Power Current

Mercury Slip Ring 1circuits@250A Power Current 1 Circuit 250A Per Circuit

Application of A1H25S Mercury Slip Ring

SENRING A1H25S Series Mercury Slip Ring(1circuits@250A Power Current) slip ring is produced with special sealing materials,insolution and conductive technology,made of aluminum alloy or stainless steel,applied for any rotating objects of signal transmitting such as:tiny voltage, EMF, thermocouple, strain gauge,audio and video signals, high frequency, computer signals and electric power connections.

Caution of A1H25S Mercury Slip Ring

1. Working temperature does not exceed 60℃,indoor temperature and self-heating (rotating and electric connection)
2. Vertical installation and storage should keep the UP towards direction
3. Installing the slip ring into the shafe should keep no eccentricity
4. Do not solder on the slip ring and copper terminals
5. Special connection terminals can't use reduplicate
6. Vibration will shorten the working life
7. The slip ring can be mounted by the body or plastic collar but it couldn't carry any mechanical loads.Another end should be connected floating hold by wires
Pls follow above instructions, otherwise it will cause damage or shorten the working life

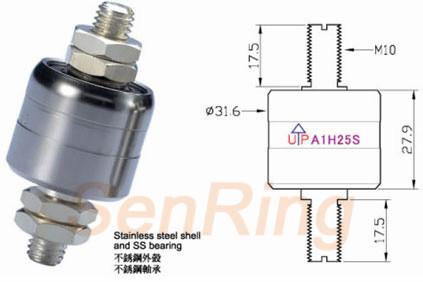

Drawing of A1H25S Mercury Slip Ring

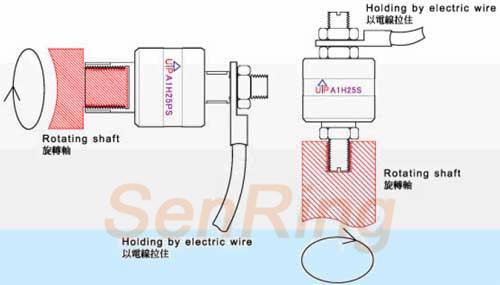

Installation

Standard model list
