Senring 6 Channels Miniature Separate Custom Slip Ring Mechanical 9.55mm

6 Channels Miniature Separate Slip Ring 6 Circuits OD 14.3mm Hole Size 9.55mm

Description of S010-06 Separate Slip Ring

S010-06 series 6 channels miniature separate slip ring ,with small size.Applied to some special situation instead of SenRing Capsule slip ring.Suitable for any motor machines to transmit supply power/signal when unrestricted,intermittent,or continuous rot

Features of S010-06 Separate Slip Ring

1. Transmit 0.1~2A weak signal with 360° rotating;

2. Small size,OD 14.3mm,length 13.2mm,hole size 9.55mm;

3. Rotor and stator can be installed independently,suitable for equipment with compact size;

4. Both copper ring and terminal are gold-plated or tin plated make sure excellent electrical conductivity;

5. V-groove gold-plated design ensure high resistance to oxidation and wear;

6. Can be customized with higher insulation (OD:0.110mm) and 90 ° V-groove ring;

7. Typical application:Instruments, monitors and avionics, test and measurement.

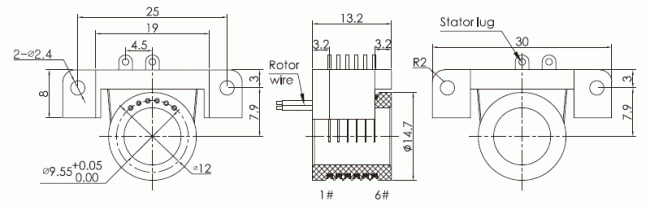

Drawing of S010-06 Separate Slip Ring

FAQ:

1. What do we do?

We focus on developing, designing, manufacturing high-quality sliprings, and offer various solutions for rotating systems.

2. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

3. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
