Industrial Hollow Shaft Through Hole Slip Ring Hole 250mm OD 396mm
Hollow Shaft Through Hole Slip Ring Hole Size 250mm OD 396mm

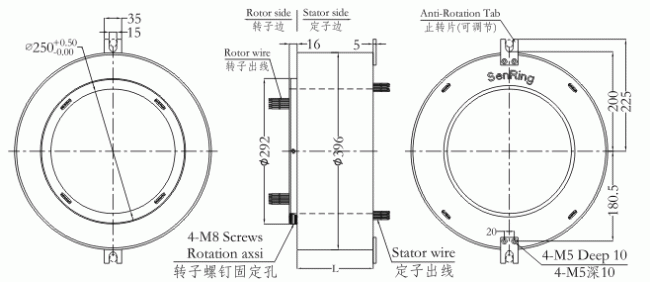

Description of H250396 Through Bore Slip Ring
Senring H250396 series through-hole conductive slip ring has a through-hole diameter of 250mm (for any rotating device with a hole diameter ≤250mm) and an outer diameter of 396mm. The H250396 series is a precision conductive slip ring with an integral structure that can stably transmit 10A current (multiplied by *10A) or 2A signals. It can be used in wire and cable machinery (such as cable reels), marine engineering equipment (such as H250396-06SFS), and any devices that require 360° rotation to conduct electricity or transmit various control signals.
Features of H250396 Through Bore Slip Ring
1. Max rotating speed : 150RPM,600RPM,1200RPM(optional);
2. Standard model supports 2~48 circuits power(0~10A) or 2~108 circuits signal(0~5A),current and channels can be customized;
3. Contact materil used precious metal,ensure the stablity and working life;
4. Integrated structure design, easy installation.
Application:
wire and cable machinery, cable reels, marine engineering equipment, and various other fields.
| Mechanicall parameters | |
| Working Life | refer to slip ring grade table |
| Rotating speed | refer to slip ring grade table |
| Working Temp. | -30°C~80°C |
| Work Humidity | 0~85% RH |
| Contact Material | refer to slip ring grade table |
| Housing Material | AL alloy |
| torque | 0.05N.m+0.02N.m/6 wire |
| IP grade | IP51 |
| Electrical parameters | ||
| Spec. | Power | Signal |
| Voltage Range | 0~690VAC/VDC | 0~440VAC/VDC |
| Insolution Resistance | ≥1000MΩ/500VDC | ≥1000MΩ/500VDC |
| lead wire Spec. | AWG17# Silver-plated teflon | AWG22# Silver-plated teflon |
| lead wire length | standard length 300mm(can be customized) | |
| Dielectric Strength | 800VAC@50Hz,60s | |
| Electrical noise | < 0.01Ω | |

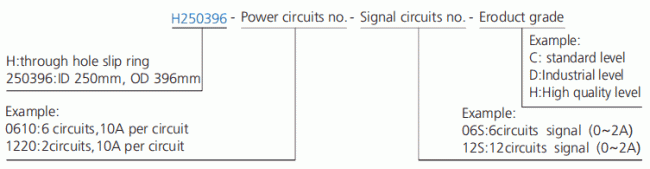

| model | circuits | Length L(mm) | model | circuits | Length L(mm) | ||
| 10A | signal or 0-5A | 10A | signal or 0-5A | ||||
| H250396-02S | 0 | 2 | 88 | H250396-36S | 0 | 36 | 258 |
| H250396-0210 | 2 | 0 | 88 | H250396--0610-30S | 6 | 30 | 258 |
| H250396-03S | 0 | 3 | 93 | H250396-1210-24S | 12 | 24 | 258 |
| H250396-0310 | 3 | 0 | 93 | H250396-3610 | 36 | 0 | 258 |
| H250396-06S | 0 | 6 | 108 | H250396-42S | 0 | 42 | 288 |
| H250396-0210-04S | 2 | 4 | 108 | H250396-0610-36S | 6 | 36 | 288 |
| H250396-0410-02S | 4 | 2 | 108 | H250396-1210-30S | 12 | 30 | 288 |
| H250396-0610 | 6 | 0 | 108 | H250396-4210 | 42 | 0 | 288 |
| H250396-12S | 0 | 12 | 138 | H250396-48S | 0 | 48 | 318 |
| H250396-0210-10S | 2 | 10 | 138 | H250396-0610-42S | 6 | 42 | 318 |
| H250396-0310-09S | 3 | 9 | 138 | H250396-1210-36S | 12 | 36 | 318 |
| H250396-0610-06S | 6 | 6 | 138 | H250396-1810-30S | 18 | 30 | 318 |
| H250396-0810-04S | 8 | 4 | 138 | H250396-P2410-24S | 24 | 24 | 318 |
| H250396-1010-02S | 10 | 2 | 138 | H250396-4810 | 48 | 0 | 318 |
| H250396-1210 | 12 | 0 | 138 | H250396-60S | 0 | 60 | 378 |
| H250396-18S | 0 | 18 | 168 | H250396-0610-54S | 6 | 54 | 378 |
| H250396-0210-16S | 2 | 16 | 168 | H250396-0910-51S | 9 | 51 | 378 |
| H250396-0410-14S | 4 | 14 | 168 | H250396-1210-48S | 12 | 48 | 378 |
| H250396-0610-12S | 6 | 12 | 168 | H250396-2410-36S | 24 | 36 | 378 |
| H250396-0810-10S | 8 | 10 | 168 | H250396-72S | 0 | 72 | 438 |
| H250396-1010-08S | 10 | 8 | 168 | H250396-1210-60S | 12 | 60 | 438 |
| H250396-1210-06S | 12 | 6 | 168 | H250396-2410-48S | 24 | 48 | 438 |
| H250396-1410-04S | 14 | 4 | 168 | H250396-3610-36S | 36 | 36 | 438 |
| H250396-1610-02S | 16 | 2 | 168 | H250396-84S | 0 | 84 | 498 |
| H250396-24S | 0 | 24 | 198 | H250396-1210-72S | 12 | 72 | 498 |
| H250396-0410-20S | 4 | 20 | 198 | H250396-2410-60S | 24 | 60 | 498 |
| H250396-0610-18S | 6 | 18 | 198 | H250396-3610-48S | 36 | 48 | 498 |
| H250396-1210-12S | 12 | 12 | 198 | H250396-96S | 0 | 96 | 558 |
| H250396-1810-06S | 18 | 6 | 198 | H250396-1210-84S | 12 | 84 | 558 |
| H250396-2410 | 24 | 0 | 198 | H250396-2410-72S | 24 | 72 | 558 |
| H250396-30S | 0 | 30 | 228 | H250396-3610-60S | 36 | 60 | 558 |
| H250396-0610-24S | 6 | 24 | 228 | H250396-4210-54S | 42 | 54 | 558 |
| H250396-1210-18S | 12 | 18 | 228 | H250396-108S | 0 | 108 | 618 |
| H250396-1810-12S | 18 | 12 | 228 | H250396-1210-96S | 12 | 96 | 618 |
| H250396-2410-06S | 24 | 6 | 228 | H250396-2410-84S | 24 | 84 | 618 |
| H250396-3010 | 30 | 0 | 228 | H250396-3610-72S | 36 | 72 | 618 |
* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.
H250396 Grade Table
| Grade code | Max rotating speed | Working Life | Contact Material |
| C(Standard) | 250RPM | 20 millions revolutions | precious metal |
| D(Industrical) | 600RPM | 80 millions revolutions | precious metal |
| H(High Quality) | 1000RPM | 150 millions revolutions | gold alloy |
