1000RPM Waterproof Miniature Slip Ring Hole 40mm
1000RPM High Quality Medium Size Through Bore Slip Ring Hole Size 40mm

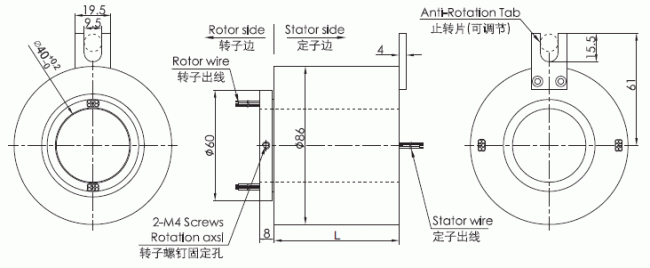

Description of H4086 Through Bore Slip Ring
The H4086 series is a standard aperture conductive slip ring with a 40mm aperture (suitable for any rotating device with a diameter of ≤40mm) and an outer diameter of 86mm. It can stably transmit 2 to 48 channels of current or signal and can be used for any device that requires 360° rotation for conducting or transmitting various signals.
| Mechanical parameters | |
| Working Life | refer to slip ring grade table |
| Rotating speed | refer to slip ring grade table |
| Working Temp. | -30°C~80°C |
| Work Humidity | 0~85% RH |
| Contact Material | refer to slip ring grade table |
| Housing Material | AL alloy |
| Torque | 0.05N.m+0.02N.m/6 wire |
| IP Grade | IP51 |
| Electrical parameters | ||
| Spec. | Power | Signal |
| Voltage Range | 0~690VAC/VDC | 0~440VAC/VDC |
| Insolution Resistance | ≥1000MΩ/500VDC | ≥1000MΩ/500VDC |
| Lead wire Spec. | AWG17# Silver-plated teflon | AWG22# Silver-plated teflon |
| lead wire length | standard length 300mm(can be customized) | |
| Dielectric Strength | 800VAC@50Hz,60s | |
| Electrical Noise | < 0.01Ω | |
Features of H4086 Through Bore Slip Ring
1. Advanced multi-point contact brush technology ensures reliable contact with low friction;
2. Support 2~48circuits power /signal(2A,N*2A),customized for more circuits or large current;
3. Can be customized to combine power/signal transmitting
4. Support transmitting power with signals ;
5. Integrated structure design, easy installation.
| model | circuits | Length L(mm) | model | circuits | Length L(mm) | ||
| 10A | signal or 0-5A | 10A | signal or 0-5A | ||||
| H4086-02S | 0 | 2 | 46 | H4086-1010-08S | 10 | 8 | 90.2 |
| H4086-0210 | 2 | 0 | 46 | H4086-1210-06S | 12 | 6 | 90.2 |
| H4086-03S | 0 | 3 | 46 | H4086-1410-04S | 14 | 4 | 90.2 |
| H4086-0310 | 3 | 0 | 46 | H4086-1610-02S | 16 | 2 | 90.2 |
| H4086-06S | 0 | 6 | 46 | H4086-24S | 0 | 24 | 112.4 |
| H4086-0210-04S | 2 | 4 | 46 | H4086-0410-20S | 4 | 20 | 112.4 |
| H4086-0410-02S | 4 | 2 | 46 | H4086-0610-18S | 6 | 18 | 112.4 |
| H4086-0610 | 6 | 0 | 46 | H4086-1210-12S | 12 | 12 | 112.4 |
| H4086-12S | 0 | 12 | 68 | H4086-1810-06S | 18 | 6 | 112.4 |
| H4086-0210-10S | 2 | 10 | 68 | H4086-2410 | 24 | 0 | 112.4 |
| H4086-0310-09S | 3 | 9 | 68 | H4086-30S | 0 | 30 | 134.6 |
| H4086-0610-06S | 6 | 6 | 68 | H4086-0210-28S | 2 | 28 | 134.6 |
| H4086-0810-04S | 8 | 4 | 68 | H4086-0410-26S | 4 | 26 | 134.6 |
| H4086-1010-02S | 10 | 2 | 68 | H4086-0610-24S | 6 | 24 | 134.6 |
| H4086-1210 | 12 | 0 | 68 | H4086-36S | 0 | 36 | 156.8 |
| H4086-18S | 0 | 18 | 90.2 | H4086-0410-32S | 4 | 32 | 156.8 |
| H4086-0210-16S | 2 | 16 | 90.2 | H4086-0610-30S | 6 | 30 | 156.8 |
| H4086-0410-14S | 4 | 14 | 90.2 | H4086-42S | 0 | 42 | 179 |
| H4086-0610-12S | 6 | 12 | 90.2 | H4086-0410-38S | 4 | 38 | 179 |
| H4086-0810-10S | 8 | 10 | 90.2 | H4086-48S | 0 | 48 | 201.2 |
* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.
H4086 Grade Table
| Grade code | Max rotating speed | Working Life | Contact Material |
| C(Standard) | 250RPM | 20 millions revolutions | precious metal |
| D(Industrical) | 600RPM | 80 millions revolutions | precious metal |
| H(High Quality) | 1000RPM | 150 millions revolutions | gold alloy |
