Senring 6 Wire Through Bore Slip Ring Hole 38.1mm OD 99mm
Rotor flange Medium Size Through Bore Slip Ring Hole Size 38.1mm OD 99mm
Description of H3899F Through Bore Slip Ring
The H3899F series is a standard aperture conductive slip ring with a 38.1mm aperture (suitable for any rotating device with a diameter of ≤38.1mm) and an outer diameter of 99mm. It can stably transmit 2 to 8 channels of 0~2A current or signal and can be used for any device that requires 360° rotation for conducting or transmitting various signals.
| Mechanical parameters | |
| Working Life | refer to slip ring grade table |
| Rotating speed | refer to slip ring grade table |
| Working Temp. | -30°C~80°C |
| Work Humidity | 0~85% RH |
| Contact Material | refer to slip ring grade table |
| Housing Material | AL alloy |
| Torque | 0.05N.m+0.02N.m/6 wire |
| IP Grade | IP51 |
| Electrical parameters | ||
| Spec. | Power | Signal |
| Voltage Range | 0~690VAC/VDC | 0~440VAC/VDC |
| Insolution Resistance | ≥1000MΩ/500VDC | ≥1000MΩ/500VDC |
| Lead wire Spec. | AWG17# Silver-plated teflon | AWG22# Silver-plated teflon |
| lead wire length | standard length 300mm(can be customized) | |
| Dielectric Strength | 800VAC@50Hz,60s | |
| Electrical Noise | < 0.01Ω | |
Features of H3899F Through Bore Slip Ring
1. Advanced multi-point contact brush technology ensures reliable contact with low friction;
2. Standard model supports 2~36 circuits power@10A(N*10A)) or 2~72 circuits signal@2A,current and channels can be customized;
3. Can be customized to combine power/signal transmitting
4. Support transmitting power with signals ;
5. Integrated structure design, easy installation.

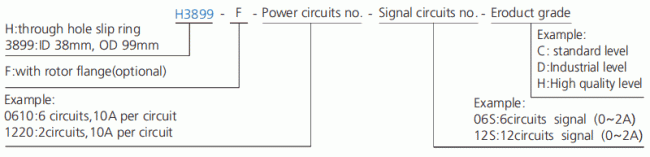

| model | circuits | Length L(mm) | model | circuits | Length L(mm) | ||
| 10A | signal or 0-5A | 10A | signal or 0-5A | ||||
| H3899F-02S | 0 | 2 | 32 | H3899F-1210-12S | 12 | 12 | 120 |
| H3899F-0210 | 2 | 0 | 32 | H3899F-1810-06S | 18 | 6 | 120 |
| H3899F-03S | 0 | 3 | 36 | H3899F-2410 | 24 | 0 | 120 |
| H3899F-0310 | 3 | 0 | 36 | H3899F-30S | 0 | 30 | 144 |
| H3899F-06S | 0 | 6 | 48 | H3899F-0610-24S | 6 | 24 | 144 |
| H3899F-0210-04S | 2 | 4 | 48 | H3899F-1210-18S | 12 | 18 | 144 |
| H3899F-0410-02S | 4 | 2 | 48 | H3899F-1810-12S | 18 | 12 | 144 |
| H3899F-0610 | 6 | 0 | 48 | H3899F-2410-06S | 24 | 6 | 144 |
| H3899F-12S | 0 | 12 | 72 | H3899F-3010 | 30 | 0 | 144 |
| H3899F-0210-10S | 2 | 10 | 72 | H3899F-36S | 0 | 36 | 168 |
| H3899F-0310-09S | 3 | 9 | 72 | H3899F-0610-30S | 6 | 30 | 168 |
| H3899F-0610-06S | 6 | 6 | 72 | H3899F-1210-24S | 12 | 24 | 168 |
| H3899F-0810-04S | 8 | 4 | 72 | H3899F-3610 | 36 | 0 | 168 |
| H3899F-1010-02S | 10 | 2 | 72 | H3899F-42S | 0 | 42 | 192 |
| H3899F-1210 | 12 | 0 | 72 | H3899F-0610-36S | 6 | 36 | 192 |
| H3899F-18S | 0 | 18 | 96 | H3899F-1210-30S | 12 | 30 | 192 |
| H3899F-0210-16S | 2 | 16 | 96 | H3899F-48S | 0 | 48 | 216 |
| H3899F-0410-14S | 4 | 14 | 96 | H3899F-0610-42S | 6 | 42 | 216 |
| H3899F-0610-12S | 6 | 12 | 96 | H3899F-1010-38S | 10 | 38 | 216 |
| H3899F-0810-10S | 8 | 10 | 96 | H3899F-1210-36S | 12 | 36 | 216 |
| H3899F-1010-08S | 10 | 8 | 96 | H3899F-1810-30S | 18 | 30 | 216 |
| H3899F-1210-06S | 12 | 6 | 96 | H3899F-2410-24S | 24 | 24 | 216 |
| H3899F-1410-04S | 14 | 4 | 96 | H3899F-60S | 0 | 60 | 264 |
| H3899F-1610-02S | 16 | 2 | 96 | H3899F-0610-54S | 6 | 54 | 264 |
| H3899F-24S | 0 | 24 | 120 | H3899F-1010-50S | 10 | 50 | 264 |
| H3899F-0410-20S | 4 | 20 | 120 | H3899F-1210-48S | 12 | 48 | 264 |
| H3899F-0610-08S | 6 | 18 | 120 | H3899F-72S | 0 | 72 | 312 |
* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.
H3899F Grade Table
| Grade code | Max rotating speed | Working Life | Contact Material |
| C(Standard) | 250RPM | 20 millions revolutions | precious metal |
| D(Industrical) | 600RPM | 80 millions revolutions | precious metal |
| H(High Quality) | 1000RPM | 150 millions revolutions | gold alloy |
Q: How to get in touch with us?
A: You can click "Contact Now"above,
Q: How to pay?
A: Normally we advise accepting T/T, L/C, accept Western Union, Paypal also.
Q: Can you make by customer's design?
A: Yes, we can.Please email your design details to us, we will make as your requirement.
5. What's the delivery time?
A: Normally within 15 days, also depends on your order quantity.
As the product design and specification more than the given product attributes, images, prices are for reference only, welcome to send your design and requests to us, thanks.
