SMA SDI Signal High Frequency Rotary Joint Collector Rings Electrical For HD Camera
1080p Hd-Sdi Slip Ring Used In HD Camera And Security Industry
Description of HD-SDI Slip Ring
SENRING's SHD HD-SDI slip ring is a new generation product which integrates SDI signal transmission into standard capsule slip ring and widely used in HD camera and security industry. it can be transmit 1-24 circuits power of data signal
Features of HD-SDI Slip Ring
1. Provides plastic shell and MMCX.SMA.coaxial connector
2. Transmit 24 circuits signal current
3. can combine with power or pneumatic/hydraulic slip ring
4. Contact materials:precious metal +gold plating which ensures abrasion resistant and anti-Oxidant for long working life
5. The flange of dimension,outside diameter,direction can be customized as per request

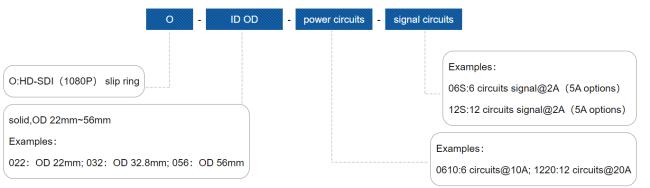

Part no. description
model list
| Model | 1080P HD-SDI channels no. | signal circuits(0~2A) | power circuits(10A) | Frequency rate | OD(mm) | Length(mm) |
| O022-08 | 1 channel | 8 | 0 | DC-3GHz | 22 | 25.5 |
| O022-12 | 1 channel | 12 | 0 | DC-3GHz | 22 | 25.5 |
| O032-24 | 1 channel | 24 | 0 | DC-3GHz | 32.8 | 46.7 |
| O056 | 1 channel | 2~48 | 2~24 | DC-3GHz | 56 | 26.8~155.6 |
*If no standard models suitable , contact us for custom solutions
| ring no. | color | ring no. | color |
| 1 | black | 13 | WHT/BLK |
| 2 | brown | 14 | WHT/BRN |
| 3 | red | 15 | WHT/RED |
| 4 | orange | 16 | WHT/ORG |
| 5 | yellow | 17 | WHT/YEL |
| 6 | green | 18 | WHT/GRN |
| 7 | blue | 19 | WHT/BLU |
| 8 | purple | 20 | WHT/PUR |
| 9 | grey | 21 | WHT/GRY |
| 10 | white | 22 | BLK/RED |
| 11 | pink | 23 | BLK/BRN |
| 12 | lightblue | 24 | transparent |
FAQ:
1. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
2. What do we do?
We focus on developing, designing, manufacturing high-quality sliprings, and offer various solutions for rotating systems.
3. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
4. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with the perfect solution for your needs.
