OEM Hollow Electrical Pancake Flat Slip Ring Assembly With 80mm Through Bore

Slip Ring Electrical Pancake Slip Rings Motor Assembly With Through Bore Size 80mm

Description of k380 Pancake Slip Ring

K380 series Pancake Slip Ring,hole size 80mm,OD 156mm,thickness ranges from 18.2~88.6mm .With AL alloy structure,sprecious metal +gold plating contact material which ensures stable rotation and low resistance fluctuation.

As another form of though hole slip rings, pancake slip rings are designed for somewhere vertical space is limited

while horizontal space is less restrictive. Special high vacuum sealing technology & precious metal brush ensure the high reliability

transmitting and rotating performance of slip ring. With many advantages such as low torque ,low friction, low electrical noise

and long life, pancake slip rings are mainly applied to transmit precise signal together with power, also could be mixed with

fluid media transmitting(such as hydraulic or pneumatic

Features of k380 Pancake Slip Ring

1. Hole size:80mm.OD:156mm;

2. Thickness ranges from 18.2~88.6mm optional;

3. Contact material treated with percious metal and super hard gold-plated;

4. Make sure stable rotation and low resistance fluctuation;

5. Can be combined to transmit precise signal together with power;

6. Precious metal brush ensure the high stability and reliability transmission.

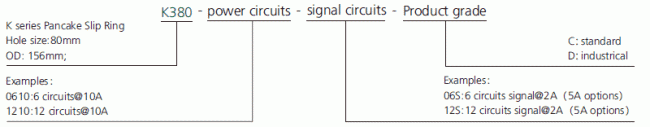

Part no. description

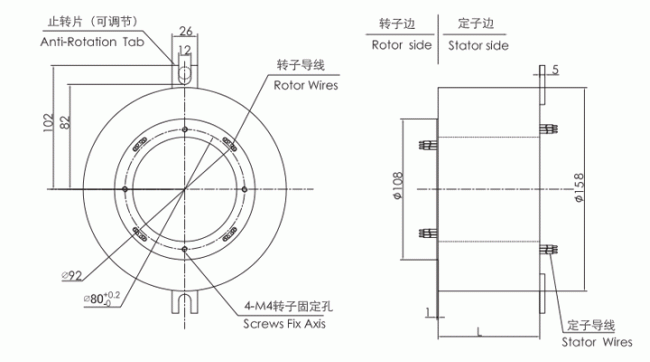

Drawing of k380 Pancake Slip Ring

Standard model list

*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the hole size,OD,thickness,circuit no.and signal type of slip ring,pls contact the SenRing technician

k380 Pancake Slip Ring Grade Table
